The QSW-M1208-8C is a Layer 2 Web Managed Switch with four 10GbE SFP+ ports and eight 10GbE SFP+/RJ45 combo ports that enables blazing-fast transfer speeds, simultaneous multi-workstation access to large files (ideal for video editing and multimedia), and empowers bandwidth-demanding tasks like virtualization. Supporting Layer 2 switching and providing a user-friendly entry-level network management solution, the QSW-M1208-8C is an affordable way for businesses and organizations to fully embrace 10GbE connectivity.
Features:
NBASE-T Ethernet
Includes eight 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) using existing cables.
User-friendly management interface
The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
RSTP protocol
One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
Energy saving
Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-M1208-8C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.
Online OS update
QSS can be updated with just one click, helping IT staff ensure their network security.
Hardware Spec
| Management Type | Web Managed |
| Number of Ports | 12 |
| 10GbE SFP+ | 4 |
| 10GbE SFP+/RJ45 Combo Ports | 8 Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M). |
| Management Port | 1 x 1GbE RJ45 |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 70W |
| Input Power Type | AC |
| Input Voltage Range | 100 ‒ 240VAC, 50/60Hz |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 120Gbps |
| Switching Capacity | 240Gbps |
| Management Interface | Web |
| Console | RS232 |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | Yes |

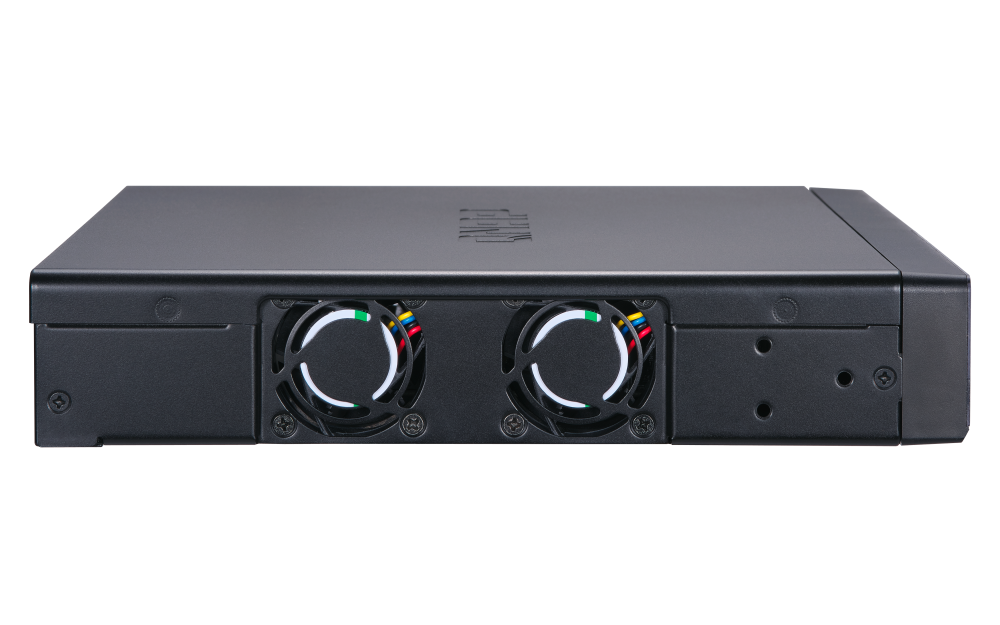

| Fan | System: 4 x 4 cm (12V) |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet (IEEE 802.1p Class of Service) |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 46.65 x 285 x 236.6 mm |
| Weight (Net) | 2.2 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5%–95% (non-condensing) |
| Certifications | FCC, CE, VCCI, BSMI, RCM, WEEE |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
Software Spec
| Standards Compliance |
|
| Port Management- |
|
| QoS |
|
| VLAN |
|
| Layer 2 Features |
|
| Security | Access Control Lists (ACL): ACL by IP address, ACL by MAC |
| Firmware management |
|
| Other Features |
|
| RSTP | IEEE802.1w Rapid Spanning Tree |
