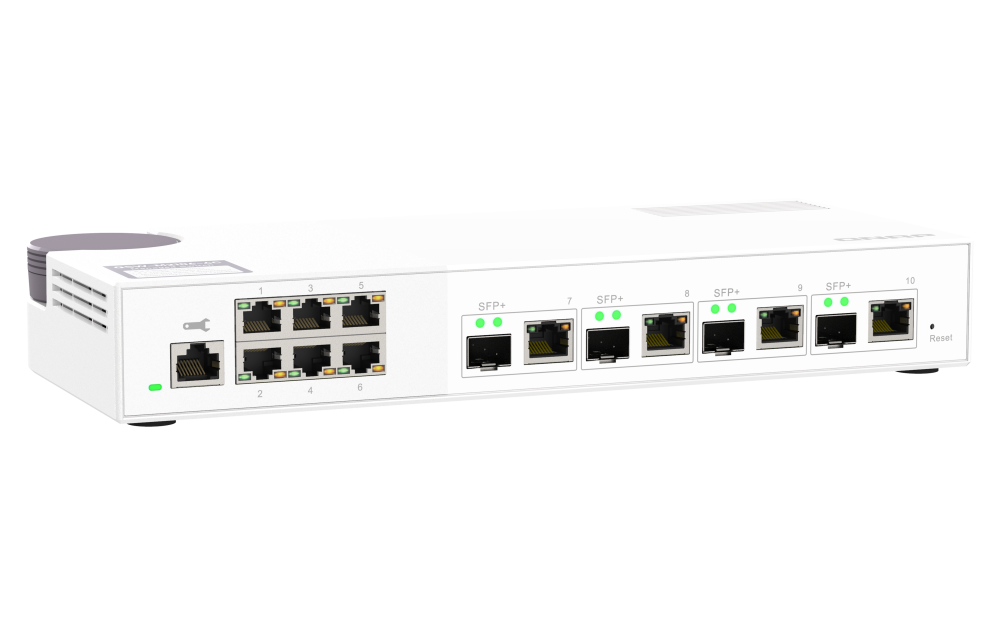

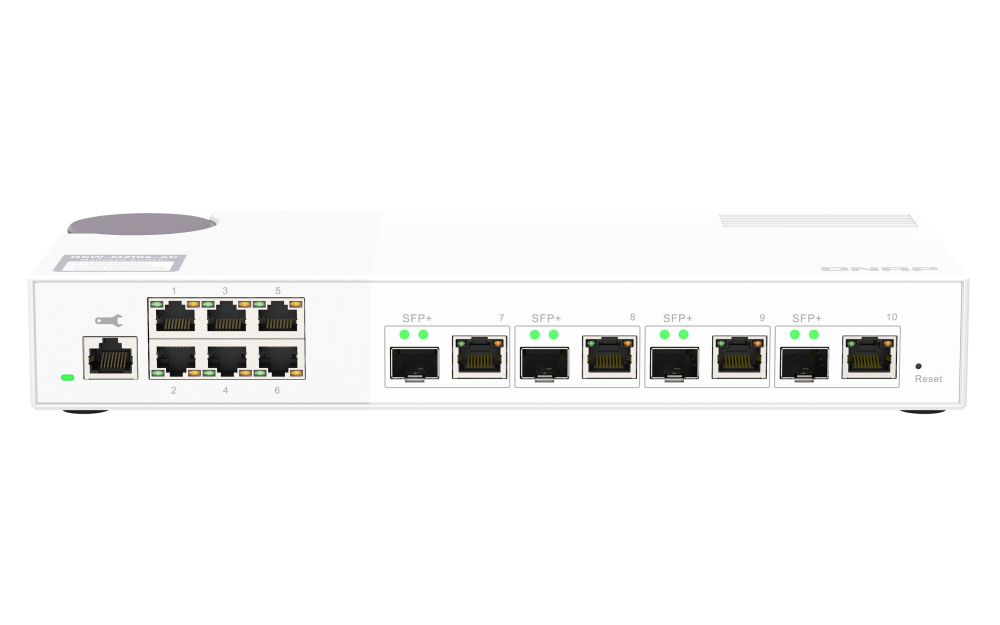

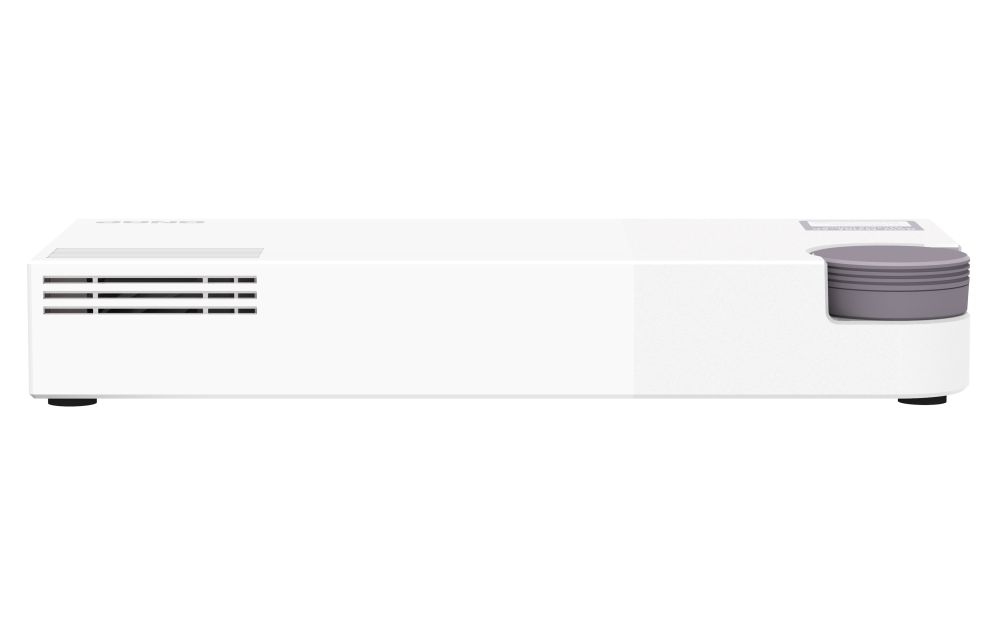

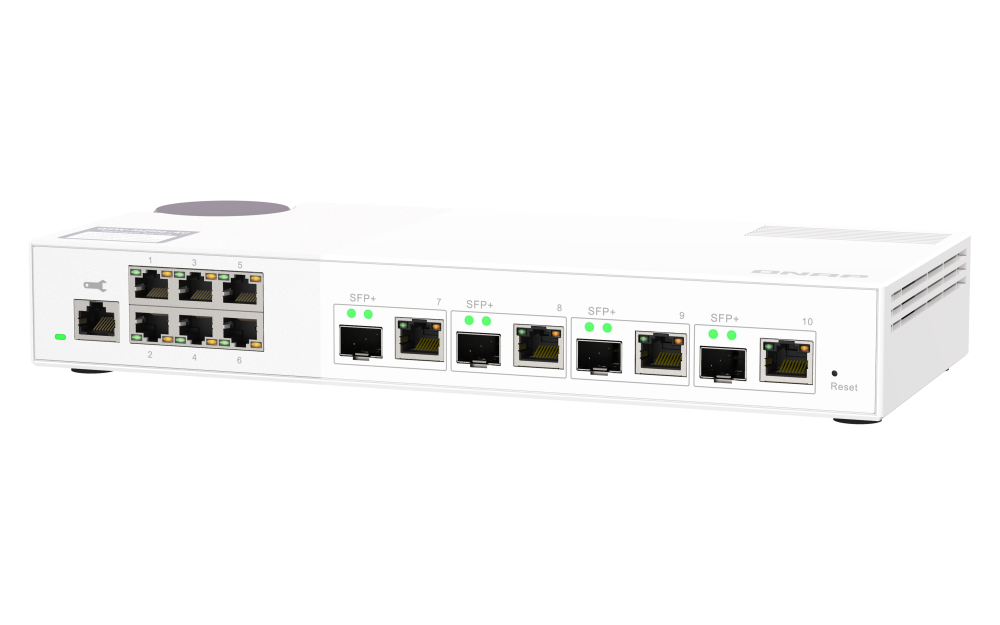

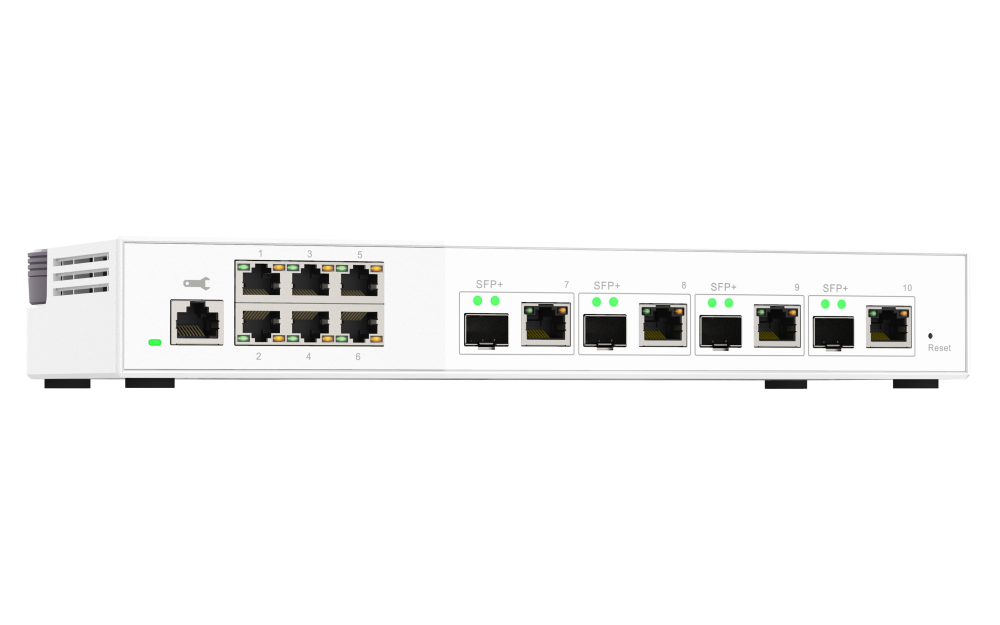

The QSW-M2106-4C is a Layer 2 Web Managed Switch with four 10GbE SFP+/RJ45 combo ports and six 2.5 Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M2106-4C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. With high performance, user-friendly management, and a desktop form factor, the QSW-M2106-4C enables cost-effective upgrading to 2.5GbE or 10GbE networking while optimizing bandwidth and ensuring secure network maintenance.
Features:
10GbE connectivity
Includes four 10GbE SFP+/ RJ45 combo ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) for high-speed networks.
2.5GbE connectivity
Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.
User-friendly management interface
The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
RSTP
One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention.
Online firmware update
QSS can be updated with just one click, helping IT staff ensure their network security.
Hardware Spec
| Management Type | Web Managed |
|---|---|
| Number of Ports | 10 |
| 10GbE SFP+/RJ45 Combo Ports | 4 |
| 2.5GbE (RJ45) | 6 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 36W |
| Input Power Type | DC |
| Input Voltage Range | 12V/3A |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 55Gbps |
| Switching Capacity | 110Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | Yes |
| Fan | PWM double ball bearing fan x 1 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet (IEEE 802.1p Class of Service) |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 42.5 x 290 x 127 mm |
| Weight (Net) | 1.15 kg |
| Weight (Gross) | 1.75 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS B |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
Software Spec
| Standards Compliance |
|
| Port Management |
|
| QoS |
|
| VLAN |
|
| Layer 2 Features |
|
| Security | Access Control Lists (ACL): ACL by IP address, ACL by MAC |
| Firmware management |
|
| Other Features |
|
| RSTP | IEEE802.1w Rapid Spanning Tree |
