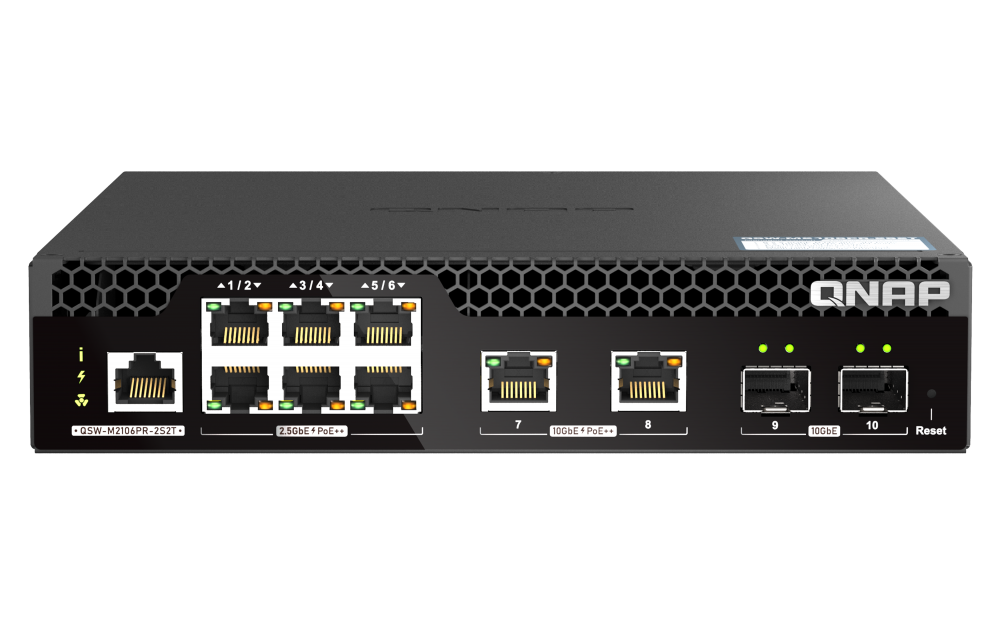

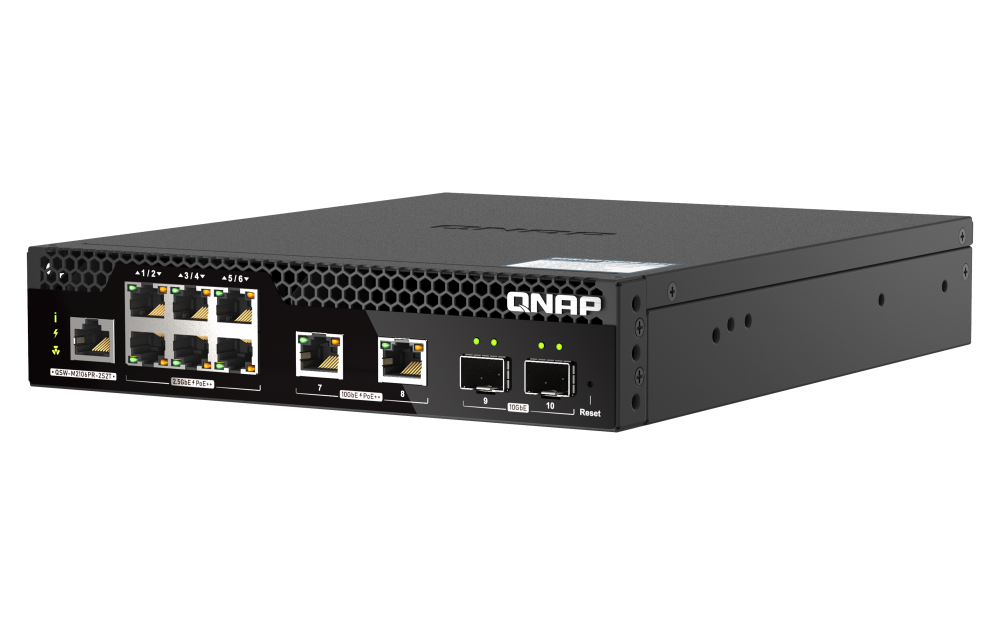

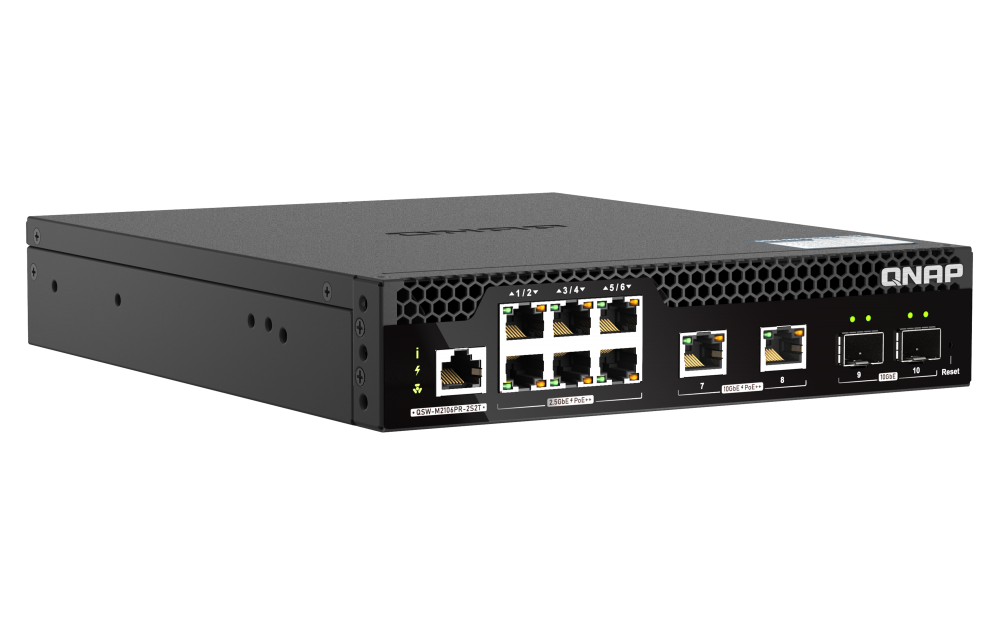

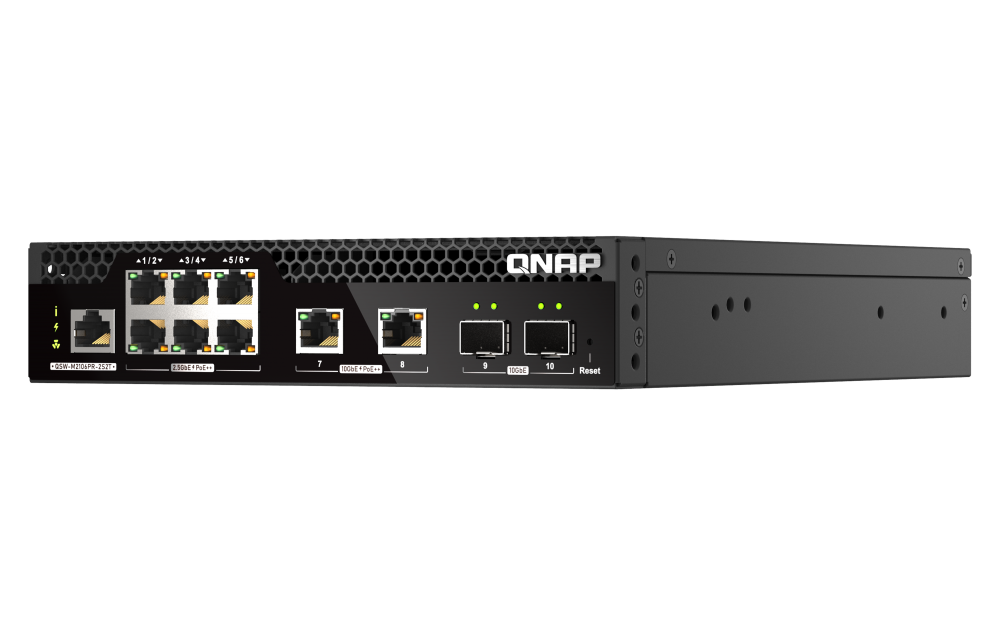

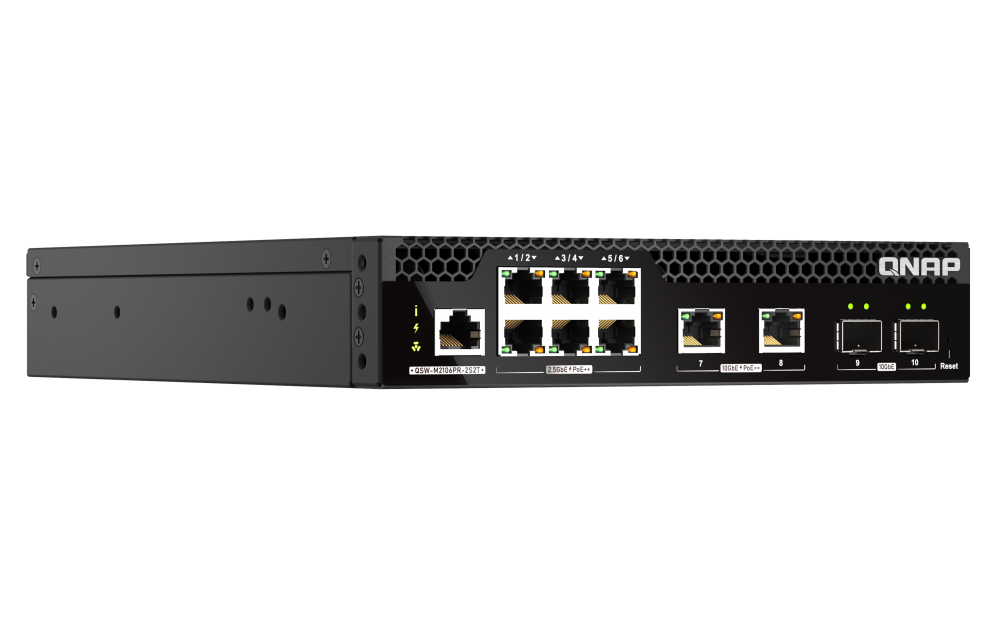

The QNAP QSW-M2106PR-2S2T is a half-width rackmount L2 PoE Managed Switch with six 90-watt 2.5GbE PoE++ ports, two 90-watt 10GbE PoE++ ports and two 10GbE SFP+ fiber ports. Providing a total power budget of 310 watts, the QSW-M2106PR-2S2T enables a high-speed and high-power PoE network infrastructure for Wi-Fi 6/Wi-Fi 6E/Wi-Fi 7 Access Points and Routers. The QNAP Switch System (QSS) features a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW-M2106PR-2S2T offers SMBs a cost-optimized and centrally managed LAN deployment solution. With a half-width design, two QSW-M2106PR-2S2T can be installed in a 1U rack space for space-saving.
Features:
10G Multi-Gig connectivity
Includes two 10GbE SFP+ fiber ports (Backward compatible with 1G SFP) and two 10GbE RJ45 ports, compatible with NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M).
2.5Gb Ethernet connectivity
Six 2.5GbE RJ45 ports allow you to immediately multiply your network speed by 2.5 times while using existing Cat 5e cables.
90W PoE++
Can supply a total power budget of 310 watts to meet the demands of high-powered devices (PDs).
User-friendly management interface
IT administrators can efficiently control Layer 2 and PoE networks, including network connection status and power consumption information, making central management of high-power devices intuitive and easy.
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security.
Online OS update
Update QSS with just one click to help ensure network security.
Hardware Spec
| Management Type | Web Managed |
| Number of Ports | 10 |
| 10GbE SFP+ | 2 |
| 10GbE BASE-T (RJ45) | 2 |
| 2.5GbE (RJ45) | 6 |
| Total PoE Ports | 8 |
| PoE++ PSE (802.3bt, 90W) | Port 1-8 (90W) |
| PoE Power Output | Port 1-8 (90W) |
| Total PoE Power Budget | 310W |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 350W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 55Gbps |
| Switching Capacity | 110Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | Yes |
| Fan | PWM VAPO Bearing fan x 2 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10G BASE-T IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af/at/bt Power-over-Ethernet (PoE) |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Status/PoE/Fan |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.3 x 207 x 248.8 mm |
| Weight (Net) | 1.77 kg |
| Weight (Gross) | 2.54 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
Software Spec
| Standards Compliance |
|
| Port Management |
|
| QoS |
|
| VLAN |
|
| Layer 2 Features |
|
| Security | Access Control Lists (ACL): ACL by IP address, ACL by MAC |
| Firmware management |
|
| Other Features |
|
| RSTP | IEEE802.1w Rapid Spanning Tree |
