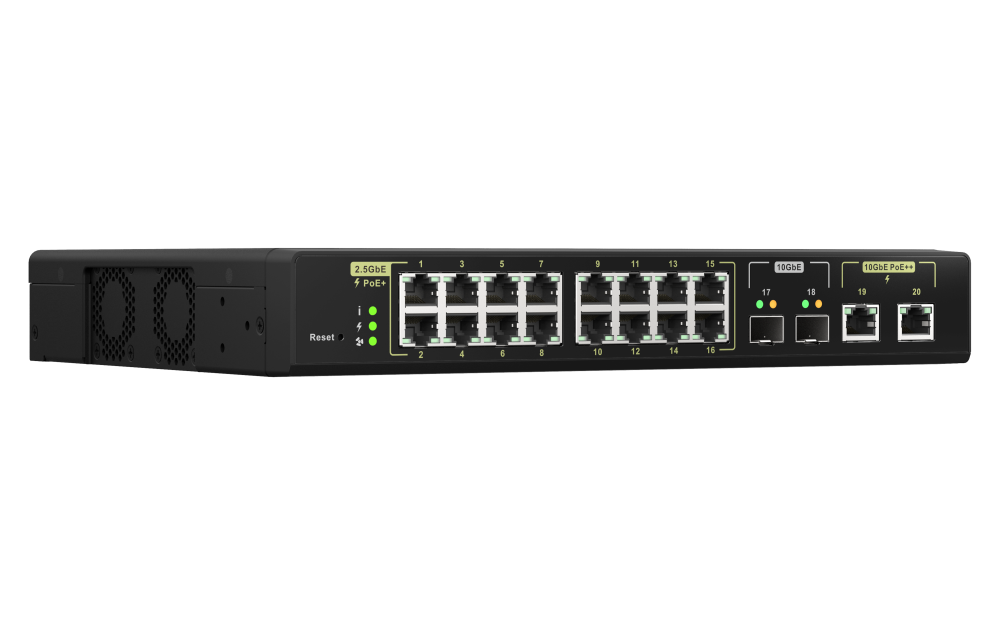

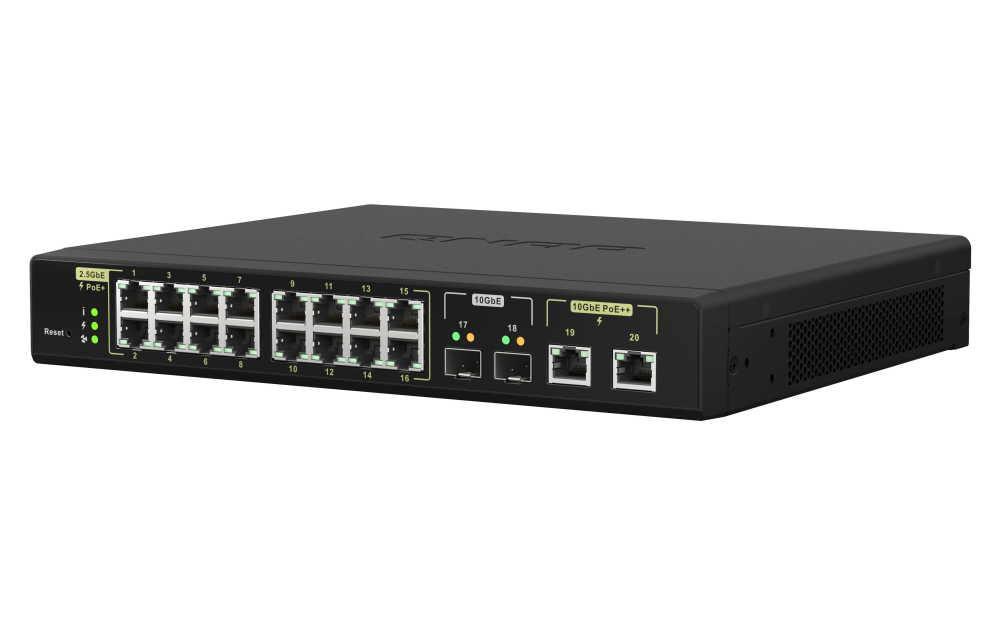

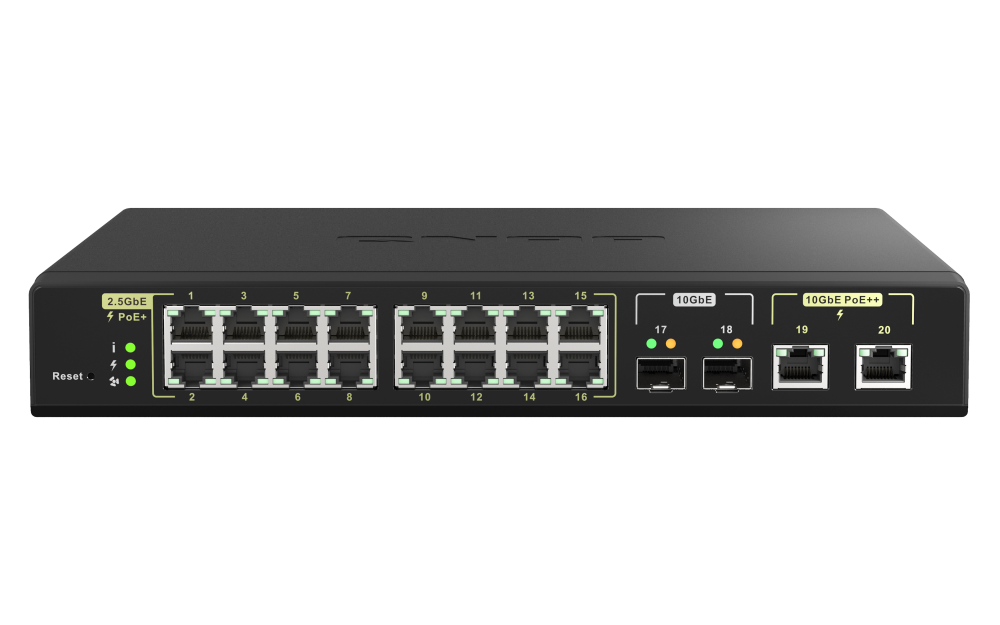

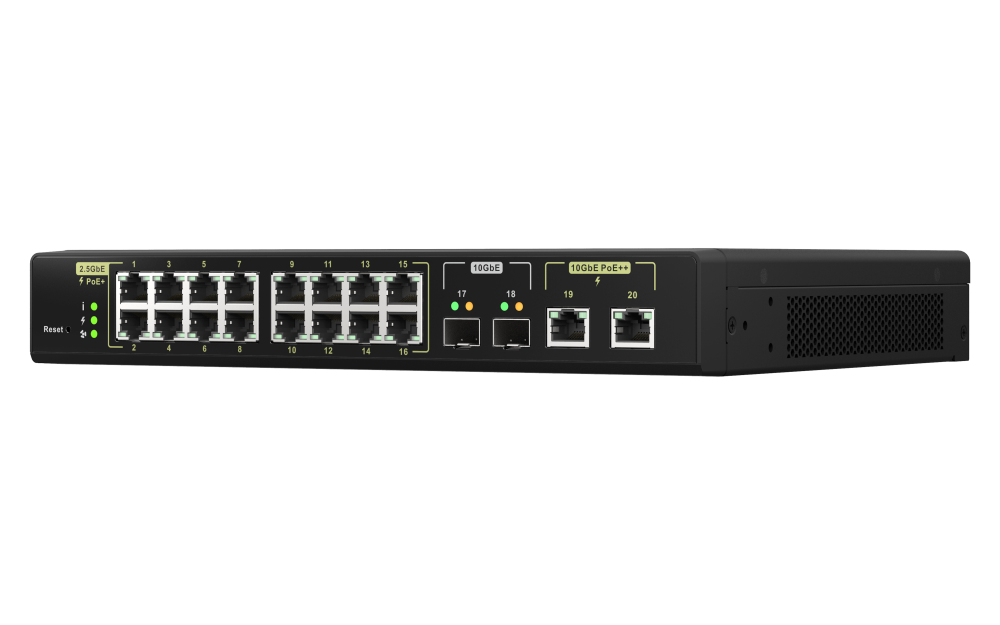

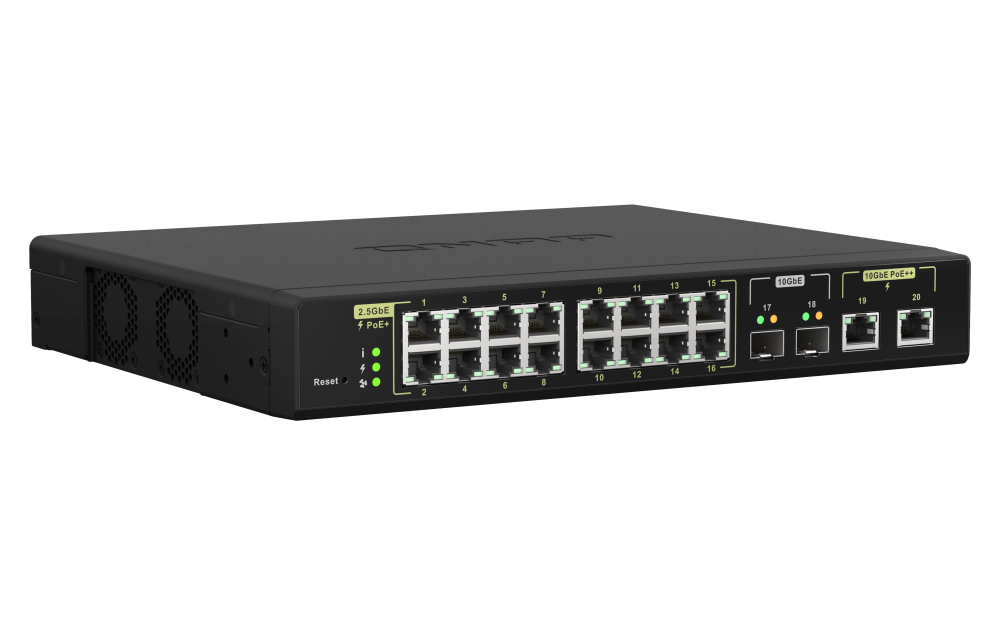

The QNAP QSW-M2116P-2T2S is a L2 PoE Managed Switch with sixteen 30-watt 2.5GbE PoE+ ports, two 90-watt 10GbE PoE++ ports. Offering a total power budget of 280 watts and two 10GbE SFP+ ports, the QSW-M2116P-2T2S not only enables a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers, but also provides backbone network uplinking capabilities. The QSS, QNAP Switch System with user-friendly web interface, helps IT administrators efficiently control Layer 2 and PoE networks, including wireless APs, IP Cameras and Digital Signage, core Switches and Servers. The QSW-M2116P-2T2S offers SMBs a cost-optimized and centrally managed LAN deployment solution.
Features:
PoE++/PoE+
Compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards. Offers 2-port 90-watt and 16-port 30-watt PoE capabilities. Can supply a total power budget of 280 watts to meet the demands of high-powered devices (PDs).
SFP+/RJ45 ports
Compatible with 10GBASE-T and 5GBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M2116P-2T2S offers higher transmission speeds when used with existing cables.
10GbE connectivity
Two 10GbE SFP+ ports can connect to the Internet, Routers, core switches, and NAS to fulfill the high bandwidth demands of backbone network or data centers.
User-friendly management interface
Offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and powered devices at a glance, making central management of high-power devices intuitive and easy.
Layer 2 network
Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) for IT administrators to efficiently control network bandwidth and enhance security via the user-friendly switch management web interface.
Online OS update
QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security.
Hardware Spec
| Management Type | Web Managed |
|---|---|
| Number of Ports | 20 |
| 10GbE SFP+ | 2 |
| 10GbE BASE-T (RJ45) | 2 |
| 2.5GbE (RJ45) | 16 |
| Total PoE Ports | 18 |
| PoE PSE (802.3af, 15.4W) | Port 1-16 |
| PoE+ PSE (802.3at, 30W) | Port 1-16 |
| PoE++ PSE (802.3bt, 90W) | Port 19-20 |
| PoE Power Output | Port 1-16 (30W), Port 19-20 (90W) |
| Total PoE Power Budget | 280W |

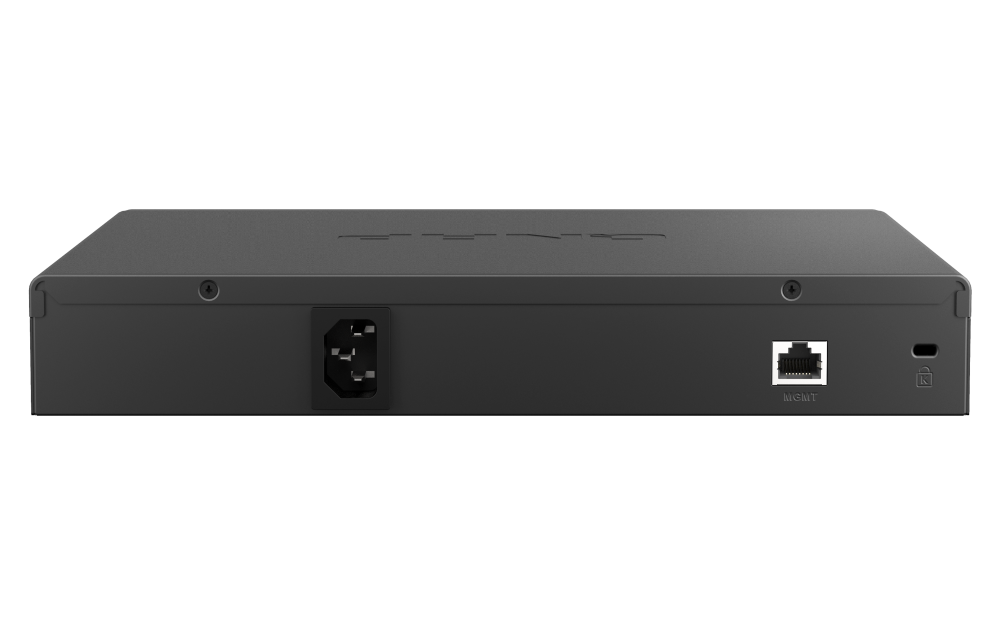

| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 350W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 80Gbps |
| Switching Capacity | 160Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | Yes |
| Fan | PWM double ball bearing fan x 2 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10G BASE-T IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af/at/bt Power-over-Ethernet (PoE) |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Status/PoE/Fan |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.5 x 285 x 234.8 mm |
| Weight (Net) | 2.08 kg |
| Weight (Gross) | 2.13 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
Software Spec
| Standards Compliance |
|
| Port Management |
|
| PoE |
|
| VLAN |
|
| Layer 2 Features |
|
| QoS |
|
| Traffic |
|
| Security | Access Control Lists (ACL): ACL by IP address |
| Firmware management |
|
| Other Features |
|
