QNAP - QSW-M408-4C-US - QNAP QSW-M408-4C 12-port layer 2 managed switch. Eight 1GbE ports and four 10G SFP+/ NBASE-T Combo Ports. Easy Management with Web Browser
Part number:
QSW-M408-4C-US
Price:

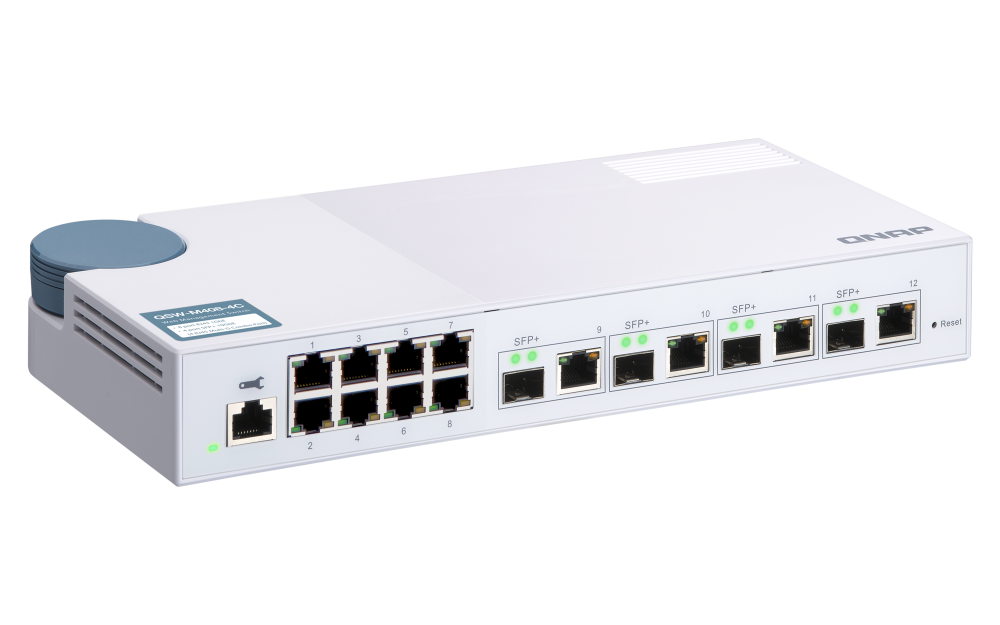

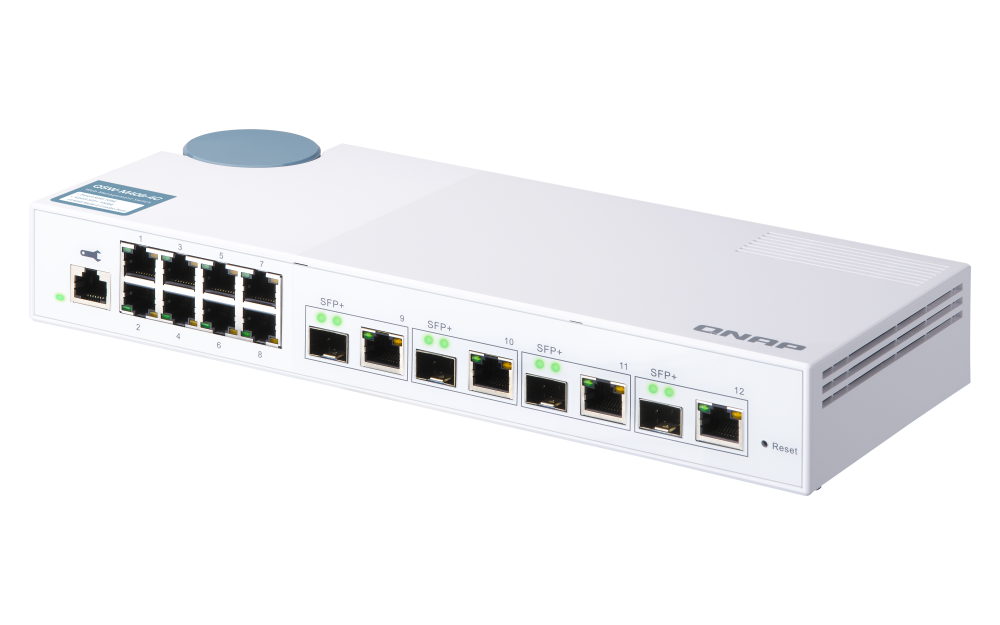

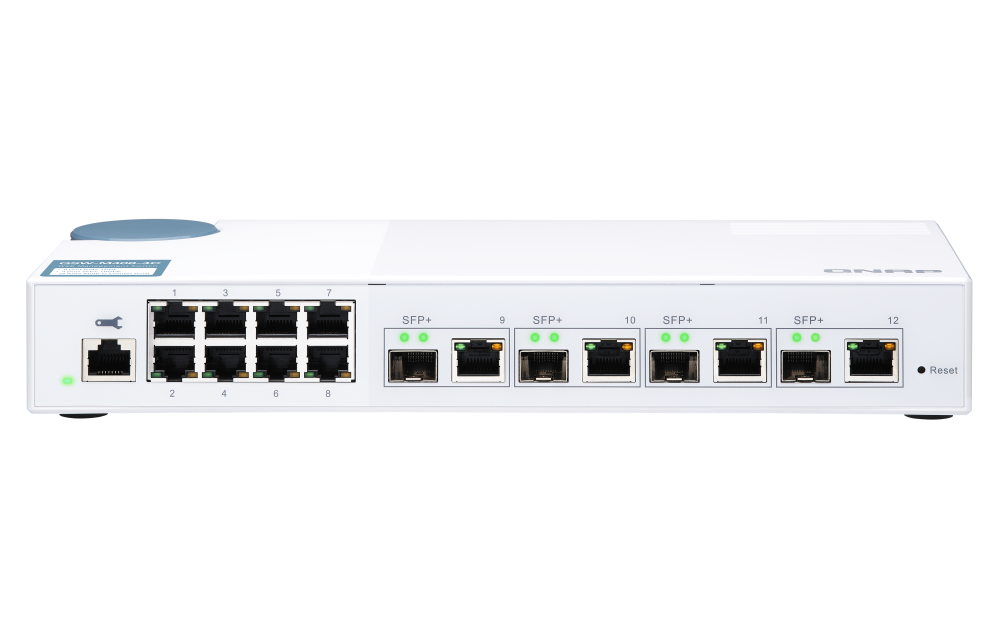

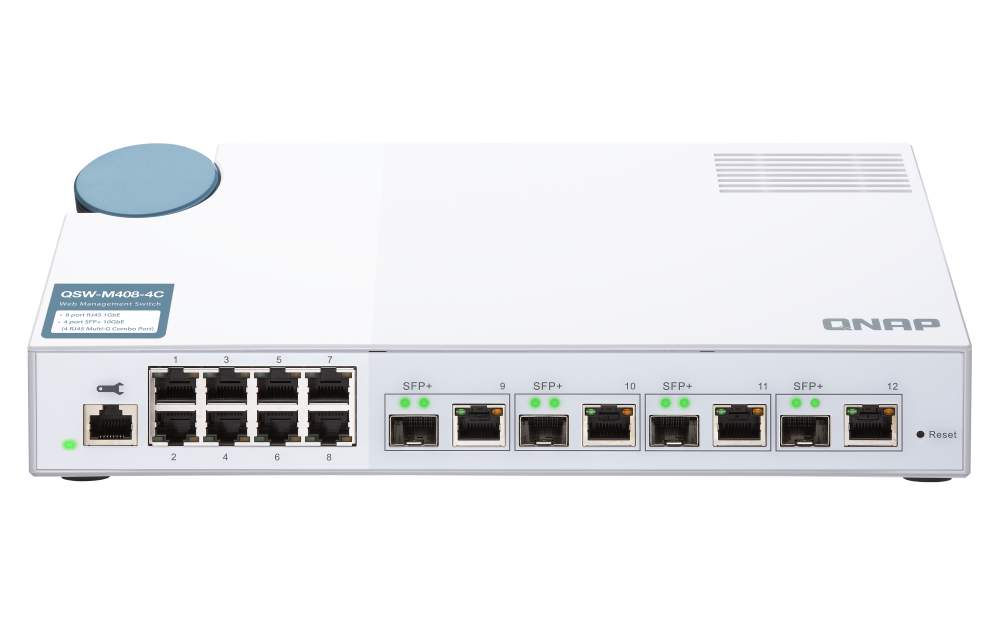

The QSW-M408-4C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M408-4C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. The QSW-M408-4C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-4C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security.



Features:



  • NBASE-T Ethernet

    The QSW-M408-4C is equipped with four 10GbE SFP+/ RJ45 combo ports and eight Gigabit ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M), the QSW-M408-4C offers higher transmission speeds when used with existing cables.

  • User-friendly management interface

    Featuring a user-friendly web UI, the QNAP Switch System (QSS) provides an overview dashboard, port management and setting guide, making central network management intuitive and easy.

  • Layer 2 network

    The QSW-M408-4C provides Layer 2 management features, such as LACP, VLAN, ACL and LLDP for IT administrators to efficiently control the network bandwidth and enhance security.

  • RSTP protocol

    The QSW-M408-4C is one the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion, redundancy and loop prevention.

  • Energy saving

    Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, the QSW-M408-4C avoids packet loss from unparalleled bandwidth, and reduces power consumption for low-speed and inactive connections.

  • Online OS updatel

    QSS (QNAP Switch System) helps administrators update firmware with just one click, ensuring network security.

Hardware Spec



Management TypeWeb Managed
Number of Ports12
10GbE SFP+/RJ45 Combo Ports

4

Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).

1GbE (RJ45)8
Power Supply DescriptionAdapter
Max. Power Consumption31.46 W
Input Power TypeAC
Input Voltage Range100-240VAC, 50/60 Hz
MAC Address Table16K
Total Non-Blocking Throughput48Gbps
Switching Capacity96Gbps
Management InterfaceWeb
ConsoleRJ45
Energy Efficient Ethernet (IEEE 802.3az complaint)Yes
FanPWM double ball bearing fan x 1
Supported StandardsIEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10G BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Class of Service
Form FactorDesktop
LED IndicatorsPer Port: Speed/Link/Activity
Per System: Power/Status
ButtonsReset button
Dimensions (HxWxD)42.5 × 290 × 127 mm
Weight (Net)1.15 kg
Weight (Gross)1.57 kg
Operating Temperature0°C to 40°C (32°F to 104°F)
Relative Humidity5~95% Non-condensing
CertificationsCE, FCC, VCCI, BSMI, CCC
Electromagnetic ComplianceCLASS A
Jumbo Frames9K
Warranty2 Years



Software Spec



Standards Compliance
  1. IEEE 802.3 Ethernet
  2. IEEE 802.3u 100BASE-T
  3. IEEE 802.3ab 1000BASE-T
  4. IEEE 802.3bz 2.5G/5GBase-T
  5. IEEE 802.3an 10G BASE-T
  6. IEEE 802.3z 1000BASE-SX/LX
  7. IEEE 802.3ae 10G Fiber
  8. IEEE 802.3x Full-Duplex Flow Control
  9. IEEE 802.1Q VLAN Tagging
  10. IEEE 802.1w RSTP
  11. IEEE 802.3ad LACP
  12. IEEE 802.1AB LLDP
  13. IEEE 802.3az Energy Efficient Ethernet
  14. IEEE 802.1p Class of Service



Port Management
  1. Port status
  2. Port statistics
  3. Port configuration
  4. Jumbo frame support
  5. IEEE 802.3x flow control
  6. Auto-negotiation of speed and duplex modes



QoS
  1. Port-based QoS
  2. IEEE 802.1p CoS
  3. IPv4 DSCP-based QoS
  4. IPv4 ToS-based QoS
VLAN
  1. VLAN configuration
  2. IEEE 802.1Q-based VLAN
Layer 2 Features
  1. Port trunking
  2. LACP groups
  3. IGMP snooping v1, v2 and v3
SecurityAccess Control Lists (ACL): ACL by IP address, ACL by MAC
Other Features
  1. Link Layer Discovery Protocol (LLDP): LLDP remote device
  2. Interface: Web UI
  3. SNTP, DNS, DHCP client entry
RSTPIEEE802.1w Rapid Spanning Tree
