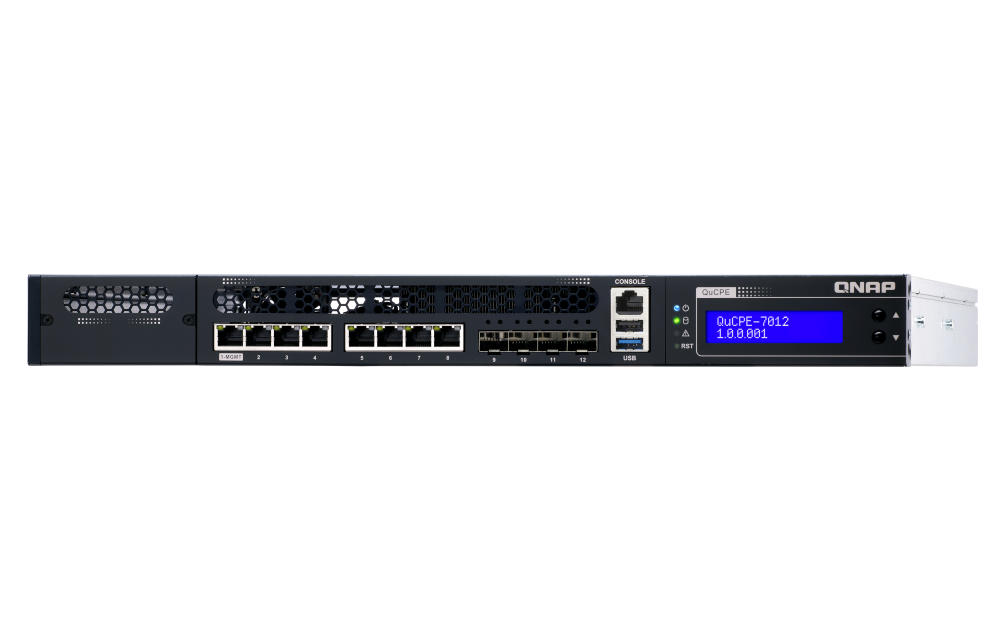

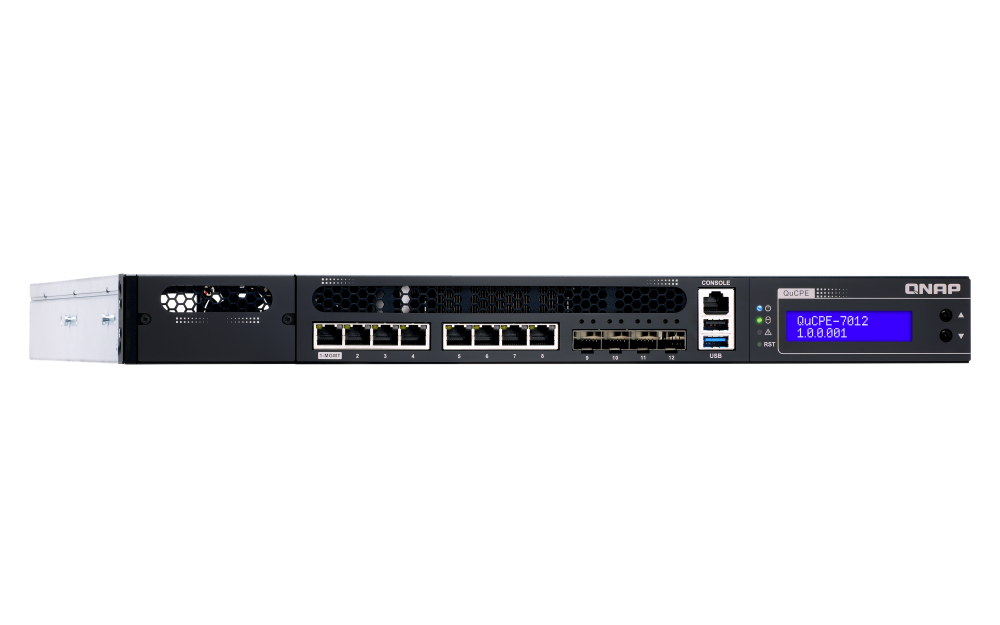

QNAP’s QuCPE-7012 Network Virtualization Premise Equipment is a universal virtualization platform specifically designed for SMBs. The QuCPE-7012 adopts powerful Intel Xeon D multi-core processors that support Intel QAT*, Smart NIC SR-IOV and DPDK hardware acceleration technologies and provides multi-port 2.5GbE, 10GbE, a network module slot and a PCIe slot for 25GbE/ 10GbE expandability. With enhanced bandwidth and computing performance for running multiple VMs and VNFs, the QuCPE-7012 is suitable for multi-user and multi-tasking business applications. The QuCPE-7012 also features the QNE (QNAP Network Equipment) OS for chaining VNF services and AMIZ Cloud centralized deployment and management platform to realize flexible Zero Touch Provisioning.
Features:
Network Function Virtualization
QNAP’s proprietary QNE operating system provides convenient and intuitive Network Service Composer with the world’s first visualized VM / VNF service chaining topology.
Hardware Acceleration Technologies
Intel QAT, Smart NIC SR-IOV and DPDK offer superior computing power for virtualization deployment and enhance SD-WAN and VPN transmission efficiency.
Cloud Management
AMIZ Cloud is a centralized management platform that enables IT administrator at HQ to centrally monitor all edge devices, virtual machines, and containers, helping enterprises achieve Zero Touch Provisioning to enhance IT deployment efficiency and reduce maintenance costs.
Multi-site Network Infrastructure
The incorporated QuWAN SD-WAN solution helps achieve multi-site network infrastructure expansion.
Installation-On-Demand
The Application Store is a software platform providing various Virtualized Network Functions (VNF) and applications including firewalls and software routers.
WireGuard VPN
Supports WireGuard VPN to offer privacy protection and advanced encrypted security transmission for faster and stable remote working networks.
| Specifications | |
| Hardware Specs | |
| CPU | Intel Xeon D-2146NT 8-core/16-thread 2.3GHz processor (11M Cache; burst up to 3.0GHz) |
| System Memory | 32GB DDR4 2666MHz ECC RDIMM (2 x 16GB) |
| Maximum Memory | 128 GB (UDIMM) or 256GB (RDIMM) |
| Memory Slot | 8 x Long-DIMM DDR4 DDR4 2133/2400MHz slots, up to 128 GB (UDIMM) or 256GB (RDIMM) |
| Drive Bays | 2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Total number of built-in and Pre-configured Ports | 12 |
| 10GbE SFP+ | 4 |
| 2.5GbE (RJ45) | 8 |
| Network Module Slot | 1 |
| PCIe Slot | 1 x PCIe Gen 3 x8 |
| Console Port (RJ45) | 1 |
| Form Factor | Rackmount, 1U |
| Fan | 3 x Cooling fans with smart fan |
| USB 2.0 port | 1 |
| USB 3.2 Gen 1 port | 1 |
| Power | Redundant power 300W, 90V~264V AC |
| Dimension W x D x H (mm) | 430 x 426 x 44.2 mm |
| Software Specs | |
| System |
|
| Virtualization |
|
| Network |
|
| Storage |
|
| Security |
|
| HA |
|
