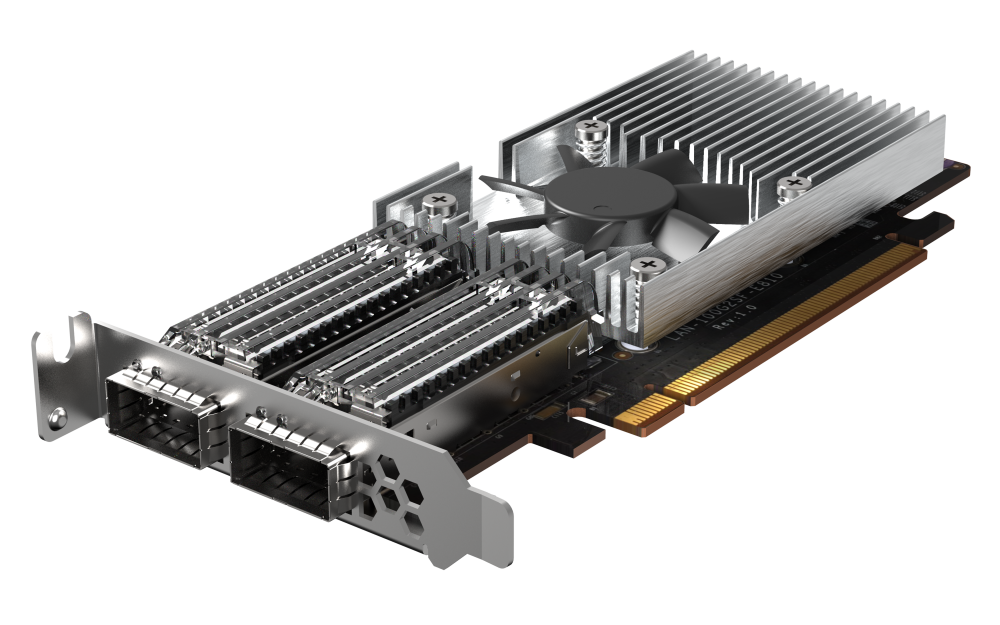

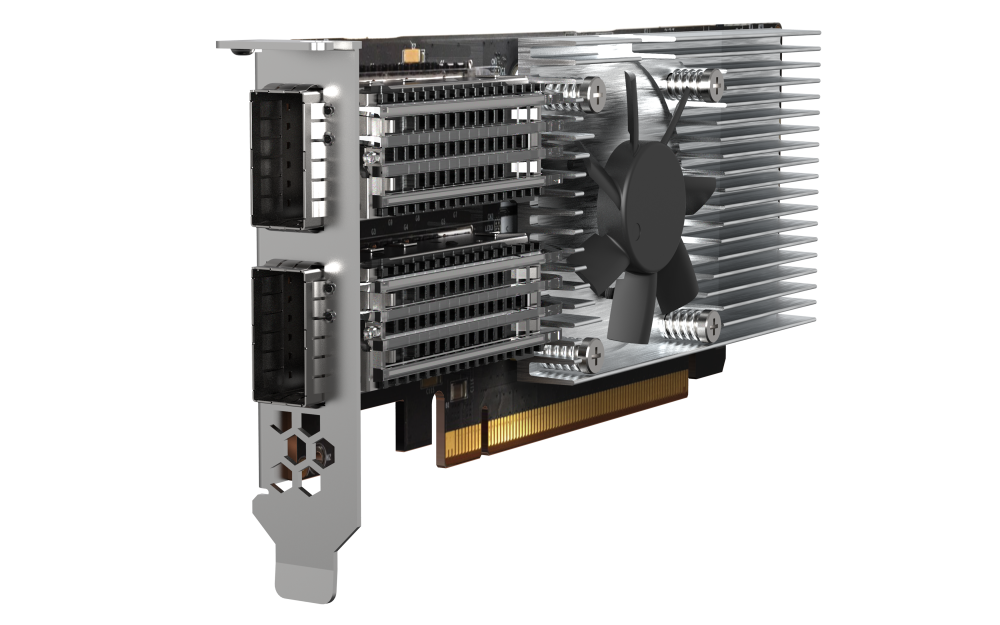

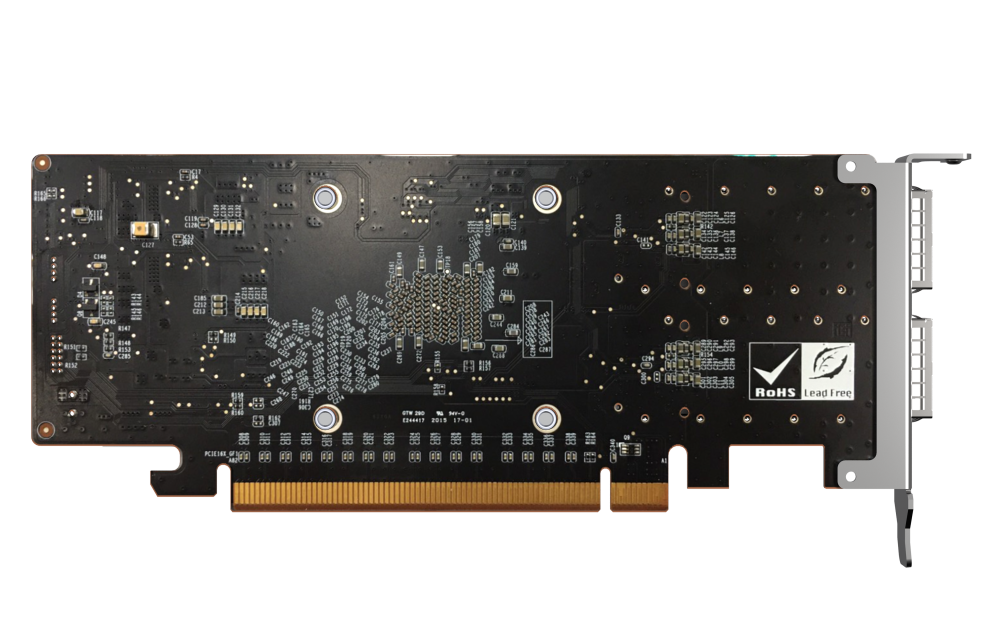

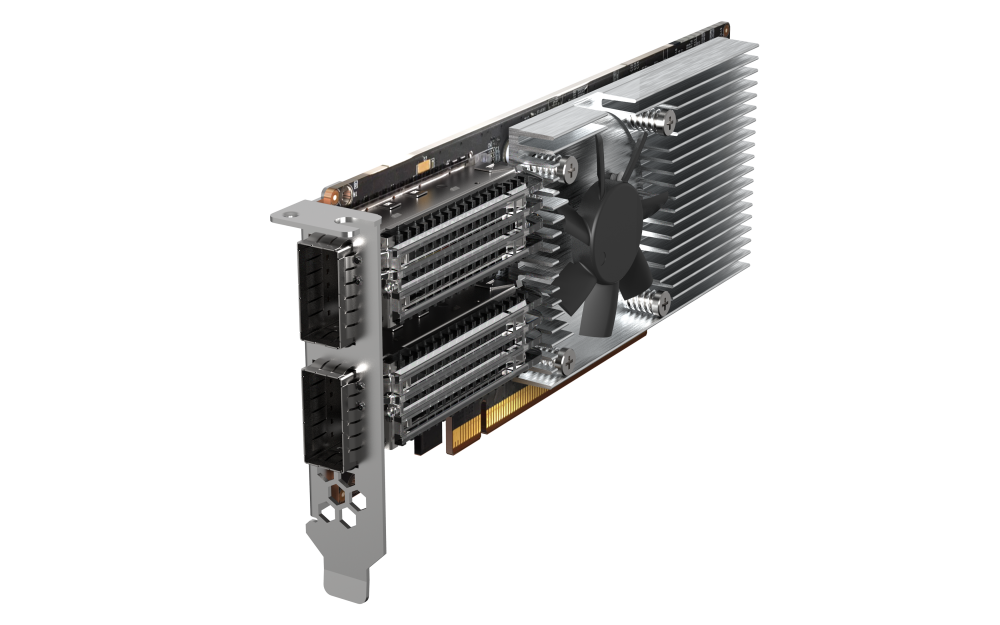

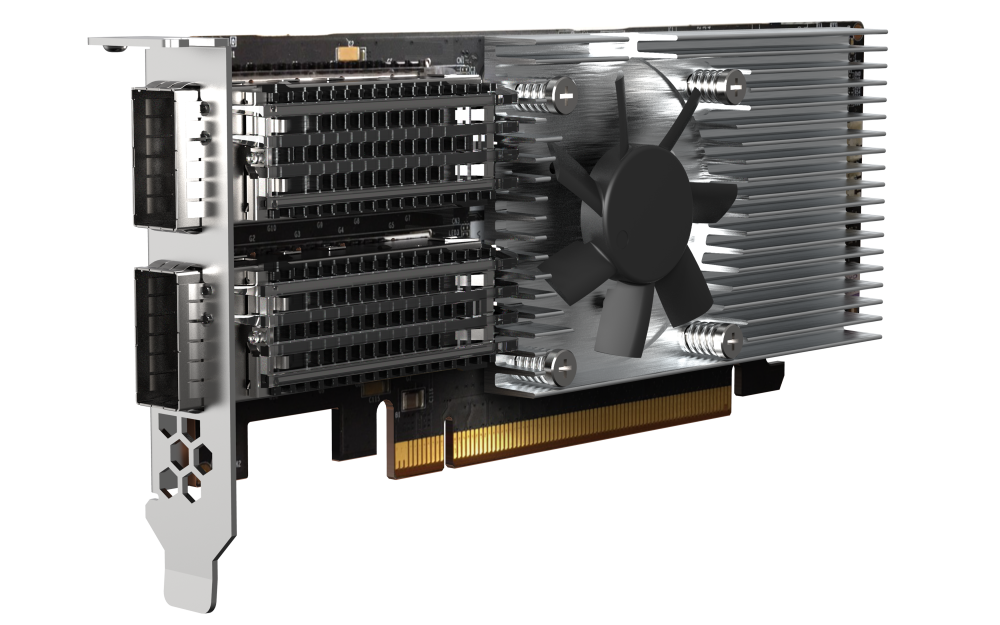

QNAP - QXG-100G2SF-E810 - Dual-port QSFP28 100GbE Network Expansion Card
Part number:
QXG-100G2SF-E810
Price:
The dual-port QXG-100G2SF-E810 100 GbE network expansion card with Intel Ethernet Controller E810 supports PCIe 4.0 and provides up to 100Gbps bandwidth to overcome performance bottlenecks. With iWARP/RDMA and SR-IOV support (available soon), the QXG-100G2SF-E810 greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization and data centers. The QXG-100G2SF-E810 is a perfect match for all-flash storage to realize the highest performance potential for ever-demanding IT challenges.
| Controller | Intel Ethernet Controller E810-CAM2 |
| Number of Ports | 2 x QSFP28 ports |
| Connector | QSFP28 |
| PCIe and Lanes | PCIe 4.0 x16 (Compatible to PCIe 3.0 x16) |
| Transmission Rates | 100Gbps |
| IEEE Standards | IEEE Std 802.3-2018 IEEE Std 802.3cd-2018 IEEE P802.3bd-2011 IEEE Std 802.1D-2004 IEEE Std 802.1Q-2011 IEEE Std 802.1AX-2008 IEEE P802.1Qbb-2011 IEEE P802.1Qbg-2012 IEEE P802.1BR/D3.3 IEEE Std 802.1AB-2009 |

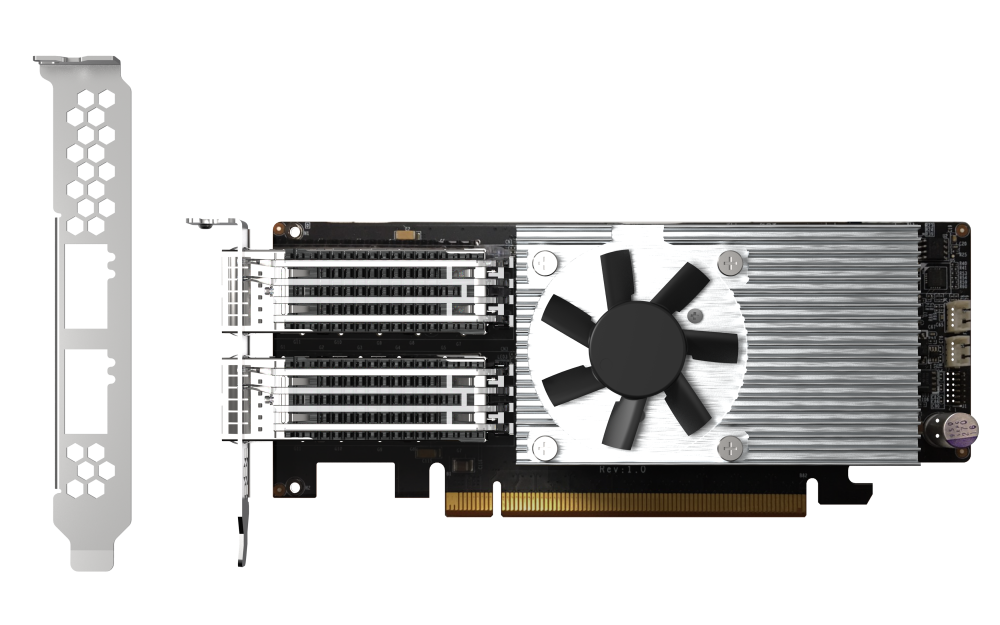

| Bracket | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| SR-IOV Support | |
| iSER Support | |
| NVGRE, VXLAN, Geneve Support | |
| 1K ingress and egress QoS levels | On-chip QoS |
| Supported NAS operating systems | QTS / QuTS hero (recommend an upgrade to the latest version)；Windows (Driver Required)；Linux (Driver Required) |
| Supported QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| Support Ubuntu Commercial Linux Distribution | Ubuntu 18.04/20.04 |
| Port and Cable | QSFP28 DAC cable or OPTIC transceiver |
| Package Contents | 1 x Network card; 1 x QIG; 2 x Brackets |
