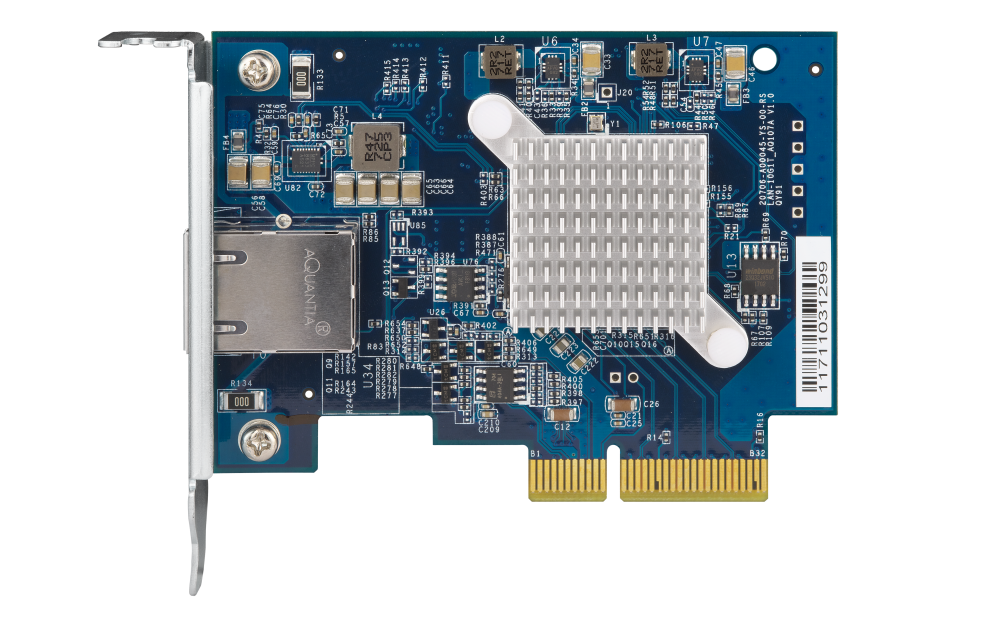

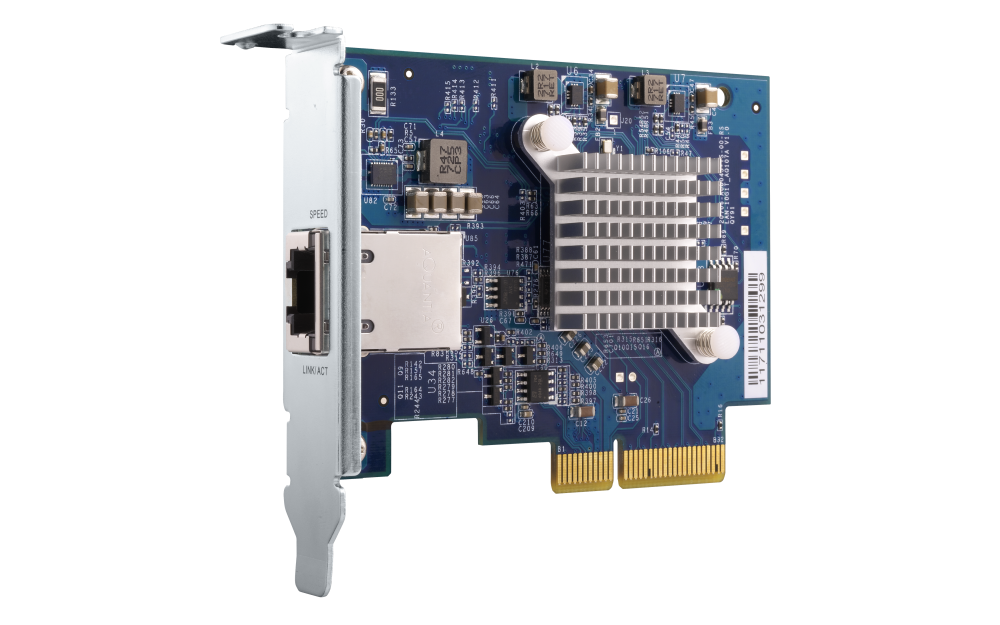

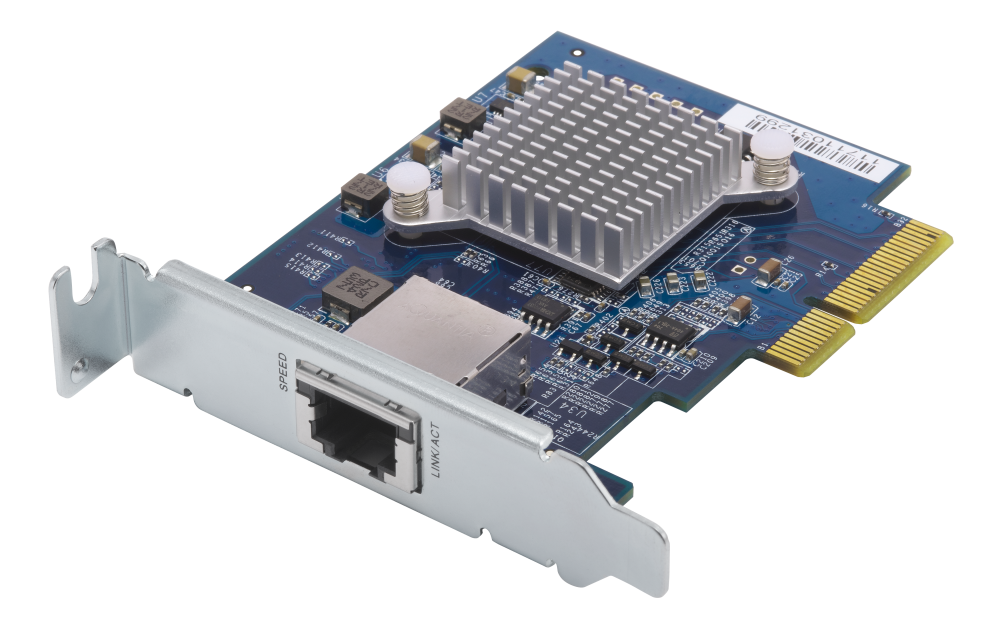

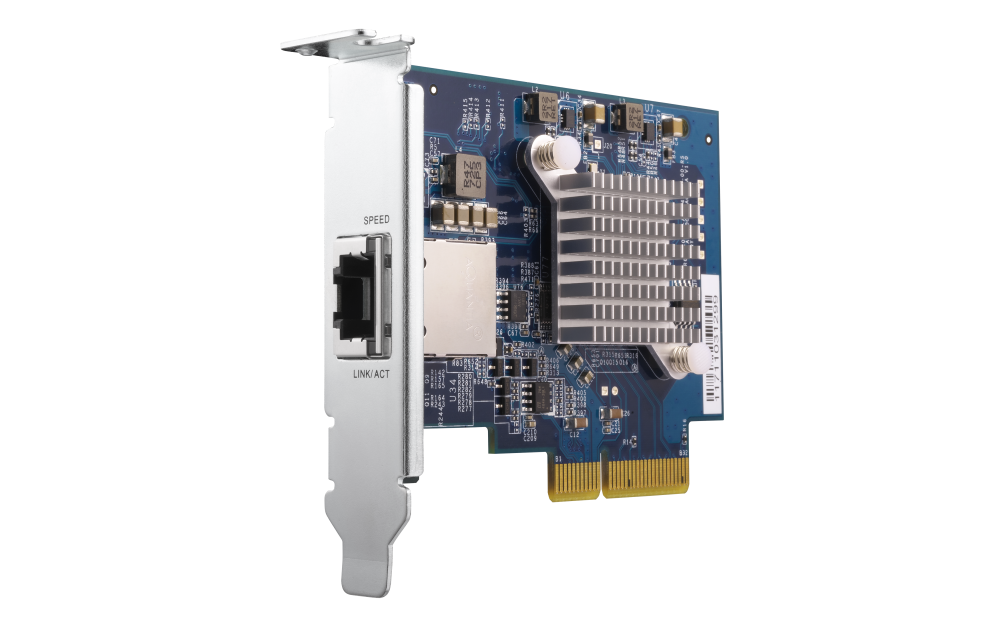

QNAP - QXG-10G1T - Single-port (10Gbase-T) 10GbE network expansion card
Part number:
QXG-10G1T
Price:
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height bracksts are bundled
QNAP offers various cost-effective network expansion cards for businesses and home users to easily upgrade the bandwidth of their QNAP NAS, servers and computers to accommodate high-speed data transfer and bandwidth-hungry applications
| Controller | Marvell AQtion AQC107 |
| Number of Ports | 1 x NBASE-T (RJ45) |
| Connector | NBASE-T (RJ45) |
| PCIe and Lanes | PCIe 3.0 x4 |
| Transmission Rates | 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps |
| IEEE Standards | IEEE 802.3an IEEE 802.3bz |
| Bracket | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| Supported NAS operating systems | At least QTS/QuTS hero 5.0.0.2309 |
| Supported QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| Port and Cable | RJ-45; over CAT-6 class cable |
| Package Contents | 1 x Network card; 1 x QIG; 3 x Brackets |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
