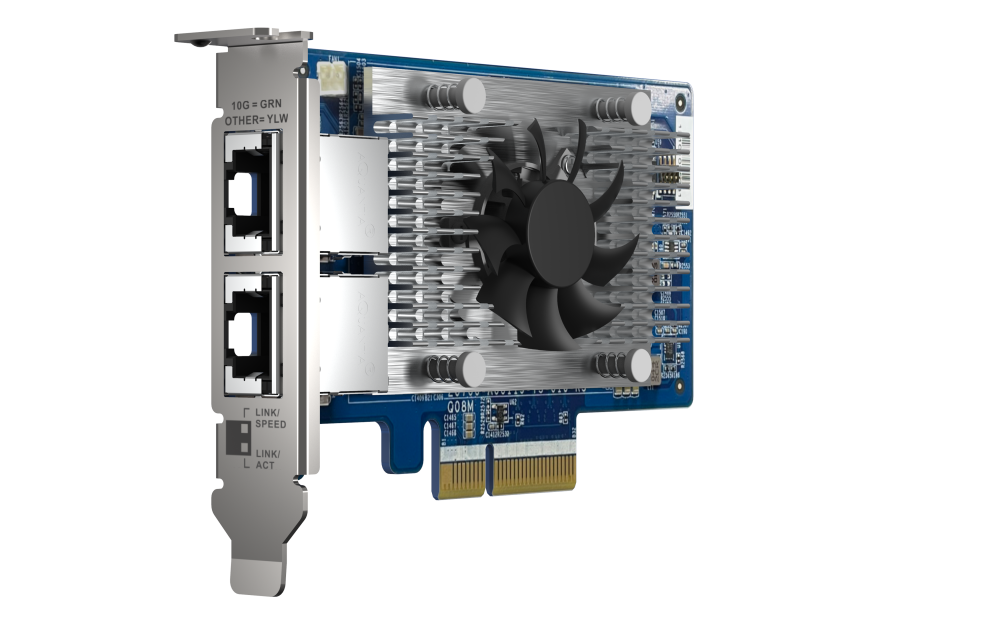

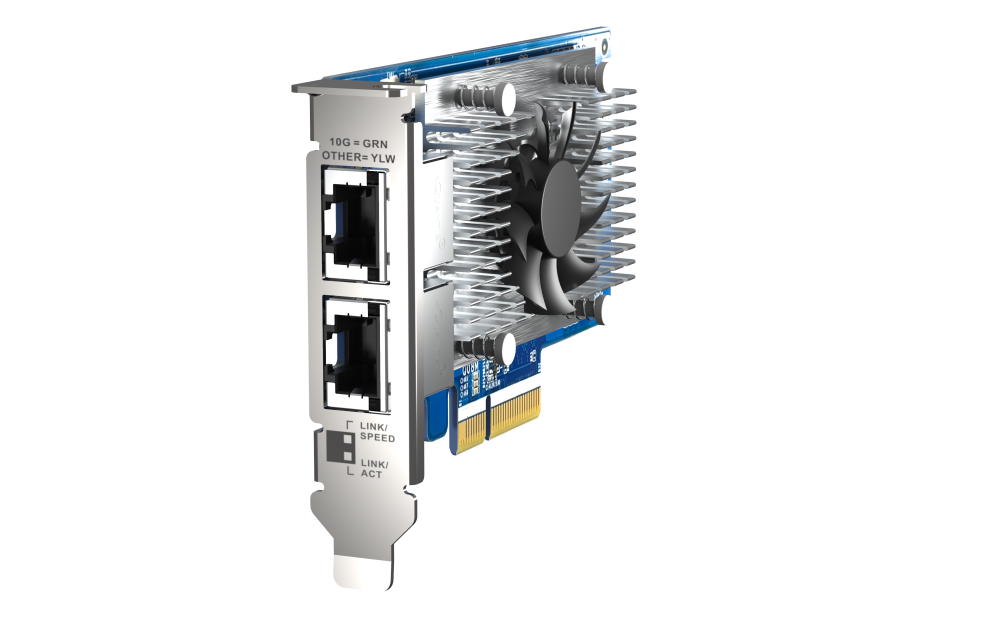

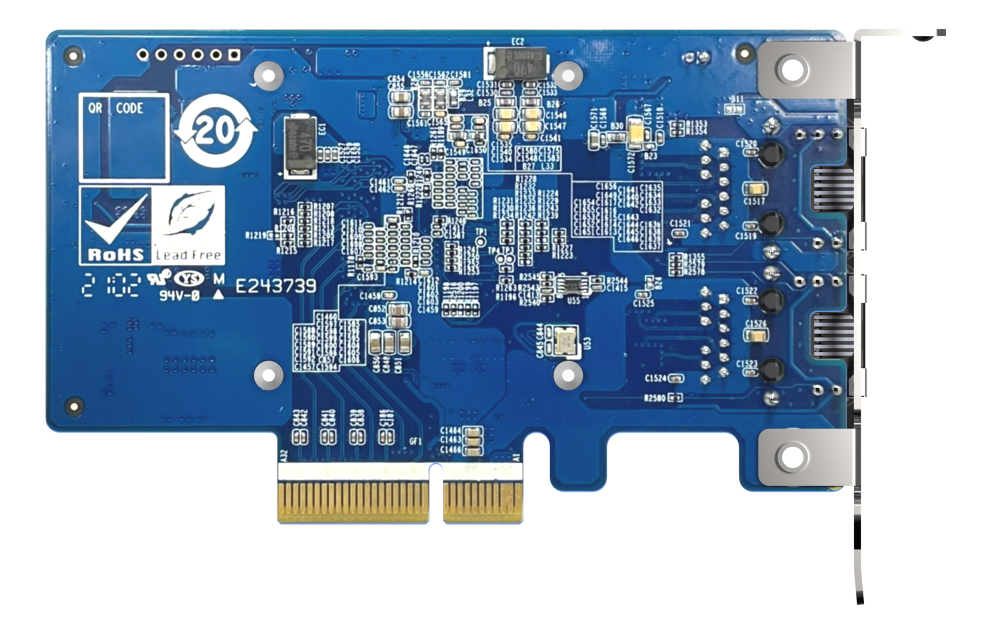

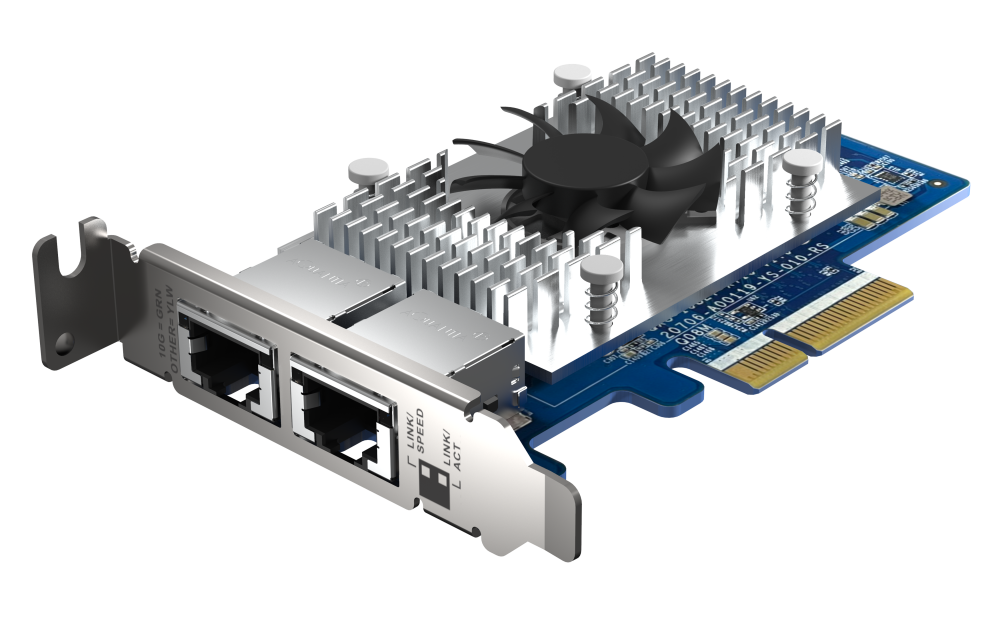

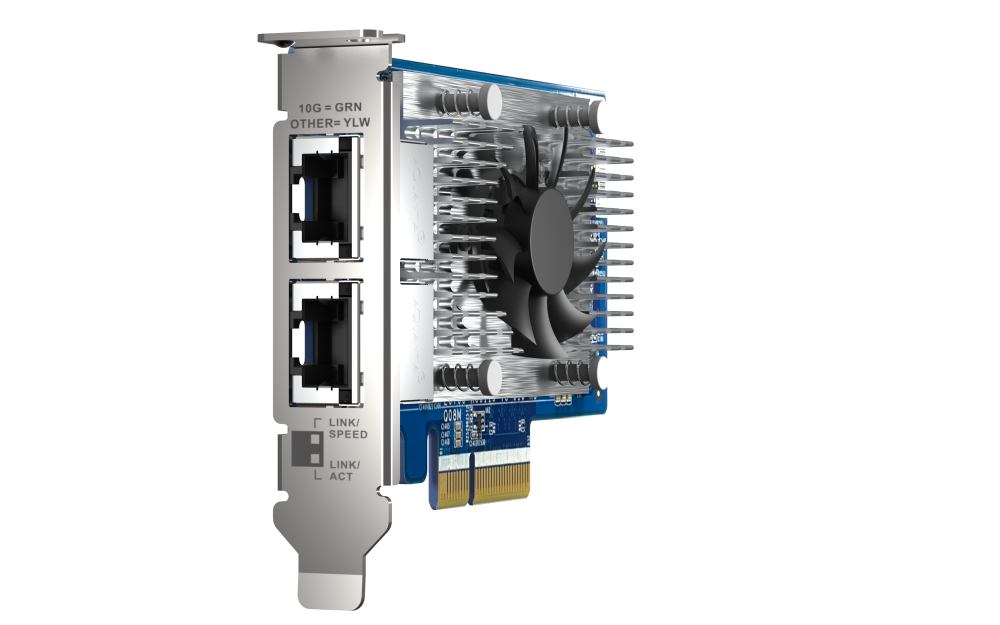

QNAP - QXG-10G2T-X710 - Dual-port (10GBASE-T) 10GbE network expansion card, Intel X710, PCIe Gen3 x4
Part number:
QXG-10G2T-X710
Price:
The dual port QXG-10G2T-X710 is a PCIe Gen 3 (compatible with PCIe Gen 2)10GbE network expansion card with an Intel Ethernet Controller X710 and supports up to five speeds (10G / 5G / 2.5G / 1G / 100M). By using Port Trunking, both ports can be combined to achieve up to 20Gbps transfer speeds for accelerating file sharing and intensive data transfer. With SR-IOV and iSCSI support, the QXG-10G2T-X710 greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization applications and data centers. PCIe supported NAS and Windows 8/10/Windows Server/Linux/uBuntu/ RHEL PCs. Visit https://www.qnap.com/go/compatibility for the compatibible NAS.
| Controller | Intel Ethernet Controller X710 |
| Number of Ports | 2 x NBASE-T (RJ45) |
| Connector | NBASE-T (RJ45) |
| PCIe and Lanes | PCIe 3.0 x4 |
| Transmission Rates | 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps |
| IEEE Standards | IEEE 802.1Q IEEE 802.3x IEEE 802.1p IEEE 802.3ad IEEE 802.3ae IEEE 1588 IEEE 802.1as |

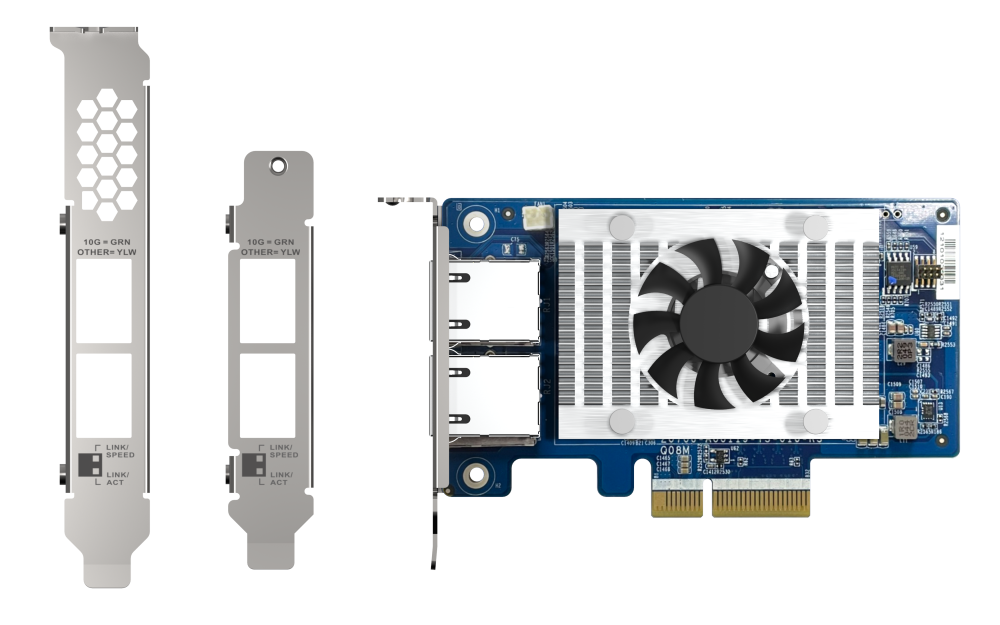

| Bracket | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| SR-IOV Support | |
| NVGRE, VXLAN, Geneve Support | |
| 1K ingress and egress QoS levels | On-chip QoS |
| How mant virtual functions | 128 (64/port) |
| Supported NAS operating systems | QTS 4.4.3 or later (recommend an upgrade to the latest version); Windows 10 (1809 or later); Linux Stable Kernel 4.20/5.x; Windows Server 2019 (Driver required) |
| Supported QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| Support Ubuntu Commercial Linux Distribution | Ubuntu 18.04/20.04 |
| Support Windows | Windows 8/10 |
| Port and Cable | RJ-45; over CAT-6 class cable |
| Package Contents | 1 x Network card; 1 x QIG; 3 x Brackets |
