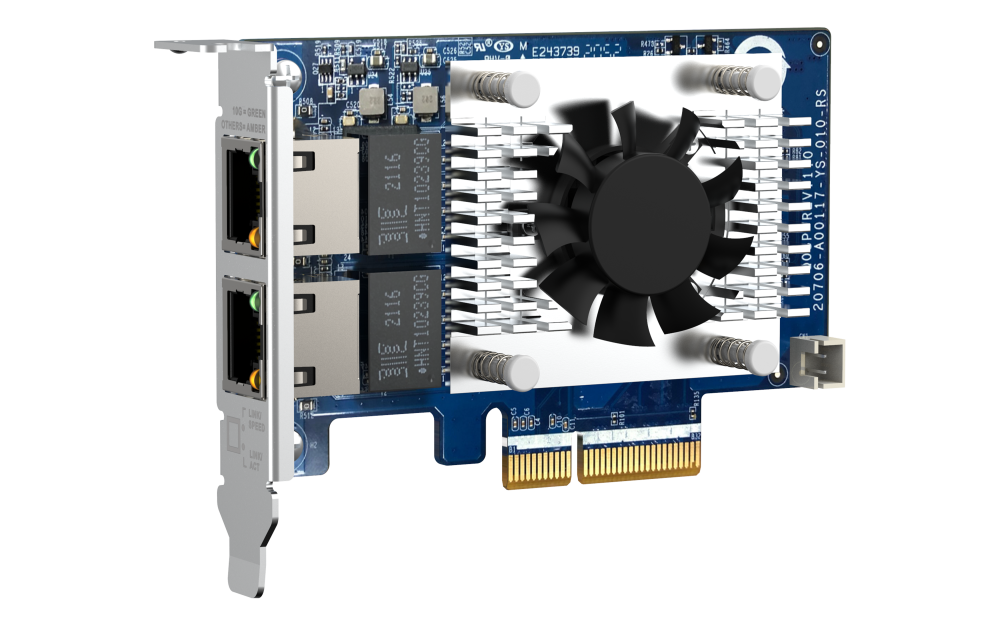

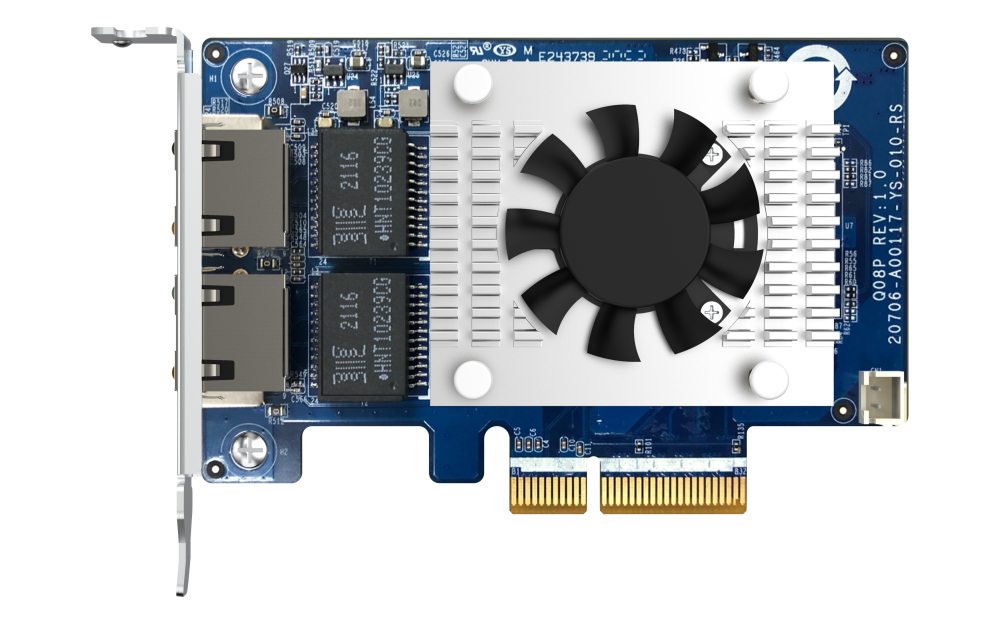

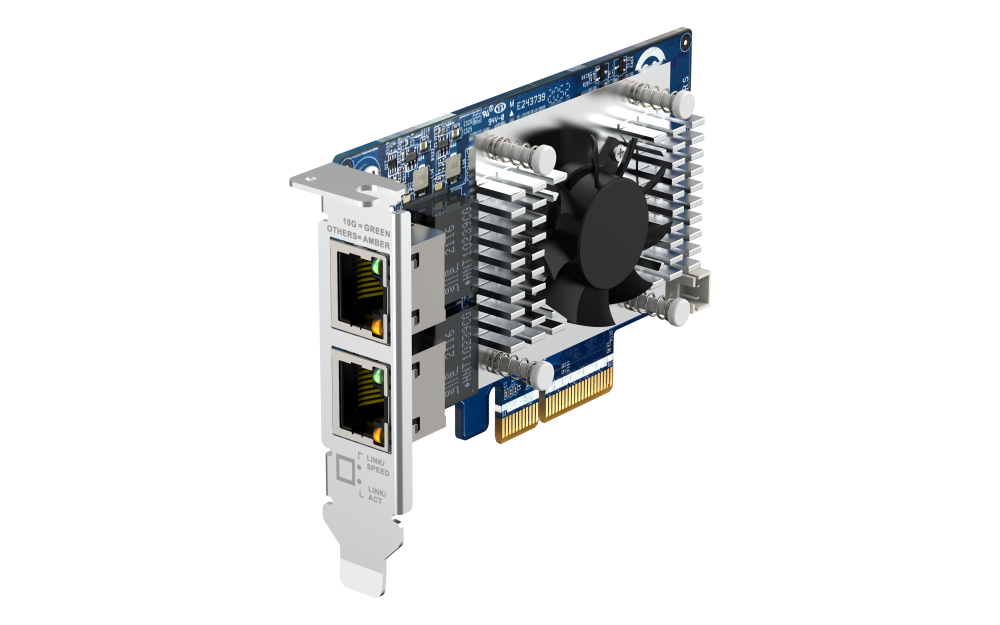

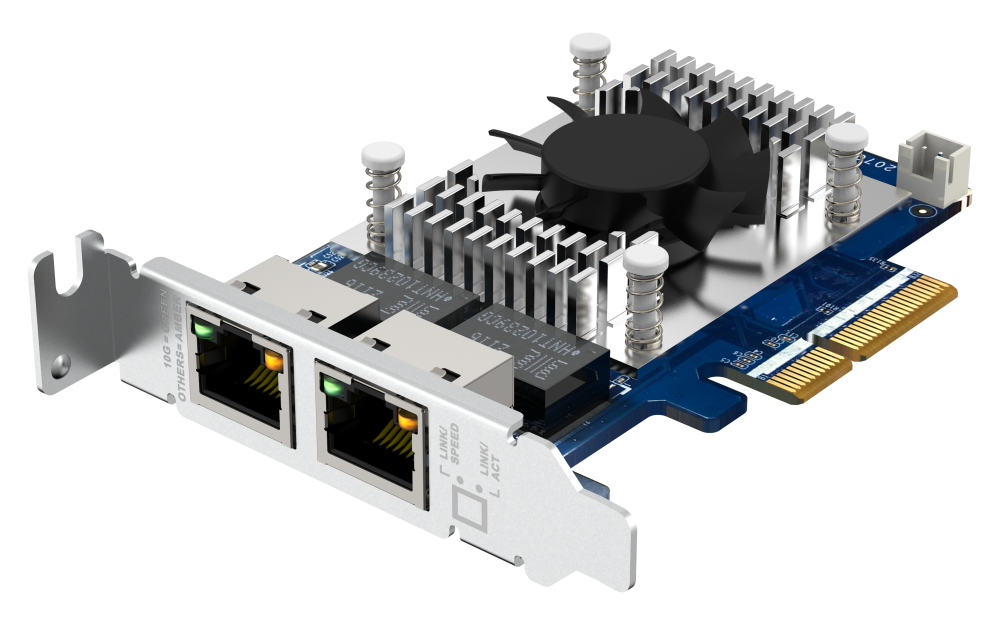

QNAP - QXG-10G2TB - Dual-port 10GbE (BASE-T) Network Adaptor, low-profile form factor
Part number:
QXG-10G2TB
Price:

The QNAP QXG-10G2TB is a PCIe Gen 3 (compatible with PCIe Gen 2) 10GbE network expansion card with a Marvell® AQtion Controller AQC113C that supports up to five speeds (10GbE / 5GbE / 2.5GbE / 1GbE / 100MbE). The QXG-10G2TB achieves up to 10Gbps transfer speeds, accelerating file sharing and intensive data transfer. Highly energy efficient and cost-effective, the QXG-10G2TB provides a high-performance entry-level 10GbE solution.



All QNAP NAS models with a PCIe slot, works for Windows/Linux PC (please download driver from Aquantia) Dual-port 10GbE (BASE-T) Network Adaptor, low-profile form factor, PCIe Gen3 x4Aquantia AQC113C, PCIe 3x4

ControllerMarvell AQtion AQC113C; Driver download: From Marvell AQtion (not required for QTS)
Number of Ports2 x NBASE-T (RJ45)
ConnectorNBASE-T (RJ45)
PCIe and LanesPCIe 3.0 x4
Transmission Rates10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps
IEEE StandardsIEEE 802.3an
IEEE 802.3bz

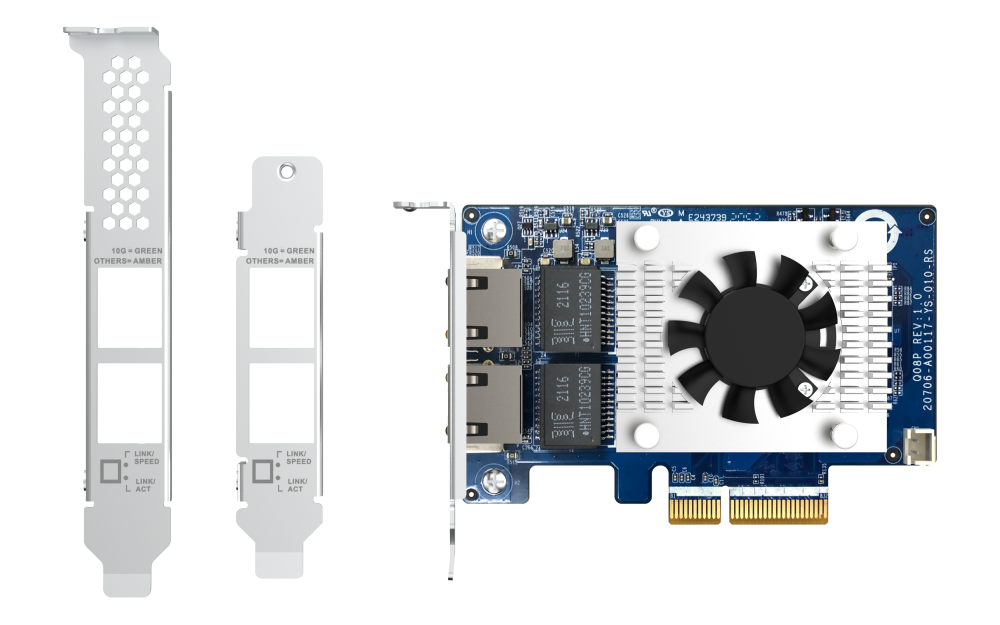

BracketLow-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
Supported NAS operating systemsQTS 4.5.4 /QuTS hero h4.5.4 or later (recommend an upgrade to the latest version); Windows 10/11 (Driver required)
Supported QNAP NASModels with PCIe slot(s) (1 free slot required)
Support Ubuntu Commercial Linux DistributionLinux 3.10 and higher
Support RedHatLinux 3.10 and higher
Support WindowsWindows 10/11 (32-bit/64-bit)
Support DebianLinux 3.10 and higher
Port and CableRJ-45; over CAT-6 class cable
Package Contents1 x Network card; 1 x QIG; 3 x Brackets
Name
Description
Size
Downloads
File
Datasheet
0.1mb
