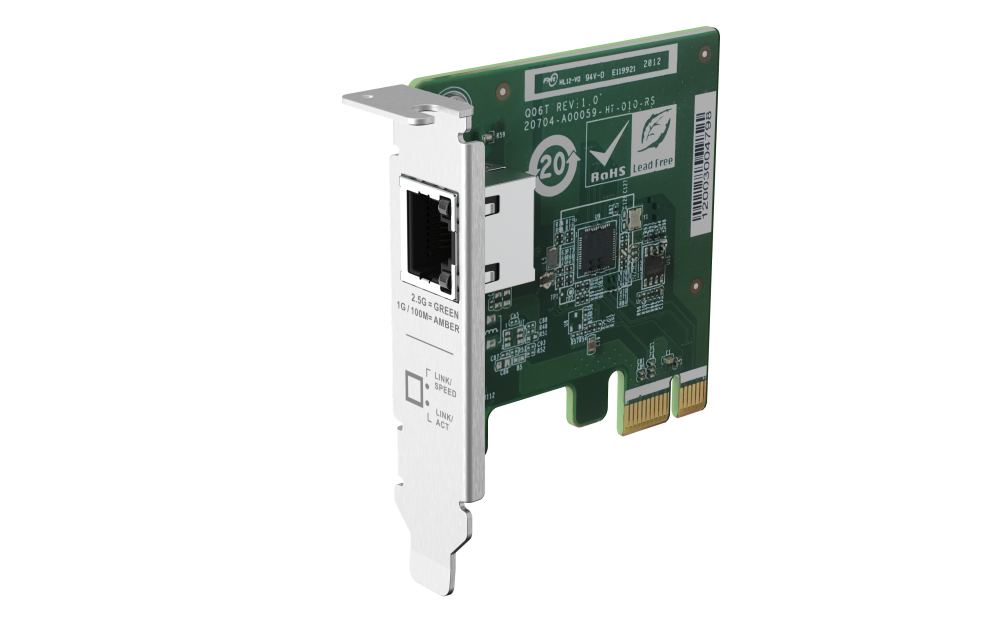

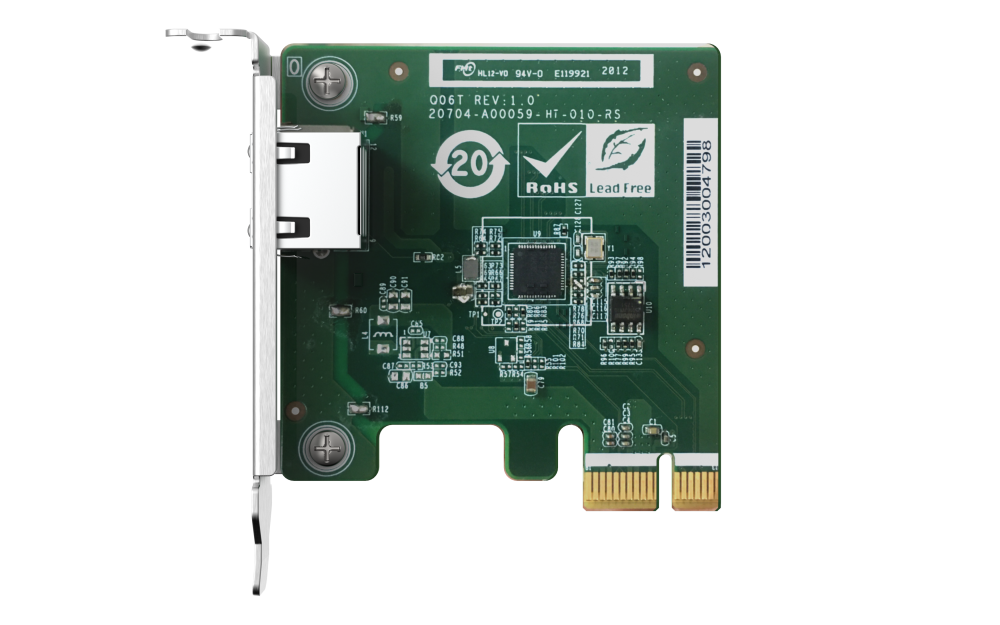

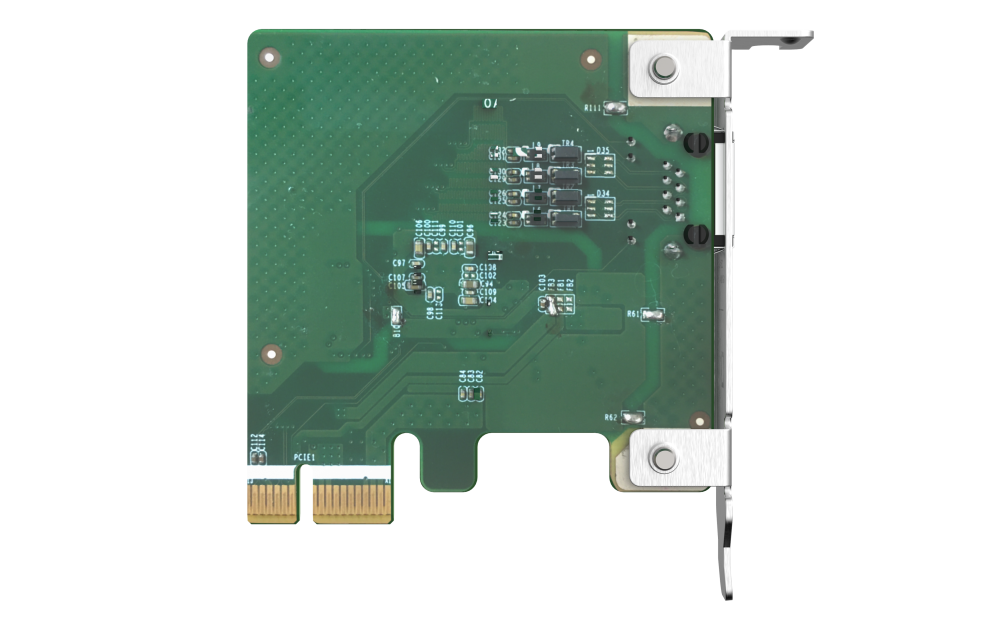

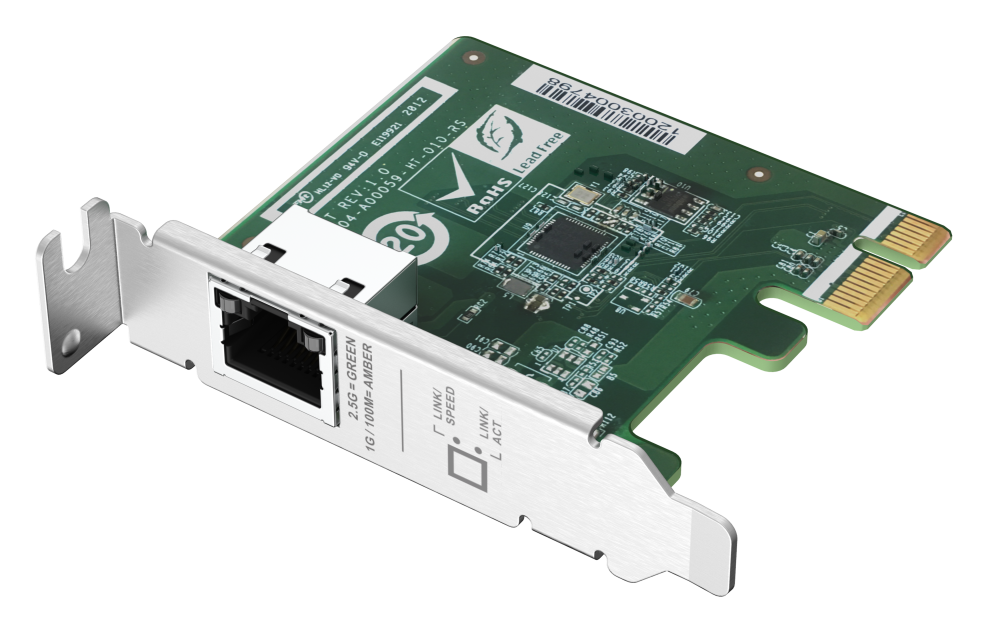

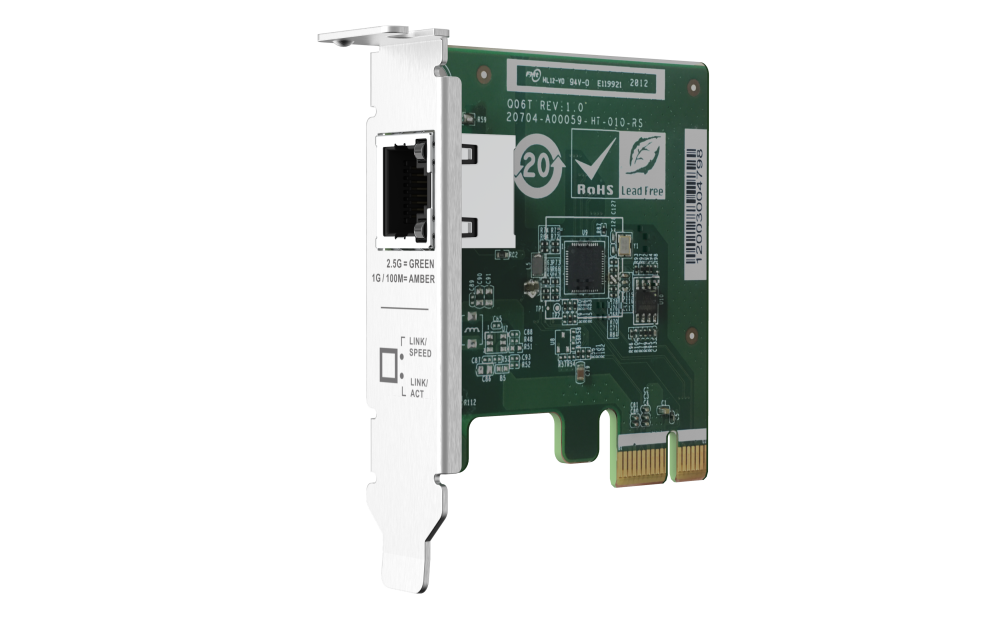

QNAP - QXG-2G1T-I225 - Single port 2.5GbE 4-speed Network card
Part number:
QXG-2G1T-I225
Price:
QNAP offers various cost-effective network expansion cards for businesses and home users to easily upgrade the bandwidth of their QNAP NAS, servers and computers to accommodate high-speed data transfer and bandwidth-hungry applications.
PCIe supported NAS and Windows 10/ Windows Server 2016 & 2019 /Linux PCs.
| Controller | Intel Ethernet Controller I225-LM |
| Number of Ports | 1 x NBASE-T (RJ45) |
| Connector | NBASE-T (RJ45) |
| PCIe and Lanes | PCIe Gen2 x1 |
| Transmission Rates | 2.5Gbps/1Gbps/100Mbps/10Mbps |
| IEEE Standards | IEEE 802.3 IEEE 802.1Qbu IEEE 802.3br IEEE 802.1Qbv IEEE 802.1AS-REV IEEE 802.1p,Q IEEE 802.1Qav EEE 802.3az |
| Bracket | full-height and specialized for QNAP NAS |
| Supported Function | PXE, Wake-On-LAN (WoL), 9k jumbo frame, 802.1AS-rev/1588, 802.1Qav/802.1Qbv, Time Sensitive Networking (TSN), RSS+MSI-X, Teaming & VLAN support, Intel AMT** |
| Supported NAS operating systems | QTS/QuTS hero (recommend an upgrade to the latest version); Windows 10 (1809 or later); Linux Stable Kernel 4.20/5.x; Windows Server 2019 (Driver required) |
| Supported QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| Support Ubuntu Commercial Linux Distribution | Linux Stable Kernel 4.20/5.x |
| Support RedHat | Linux Stable Kernel 4.20/5.x |
| Support Windows | Windows 10 (1809 or later) |
| Support Debian | Linux Stable Kernel 4.20/5.x |
| Port and Cable | RJ-45; over CAT-5 class cable |

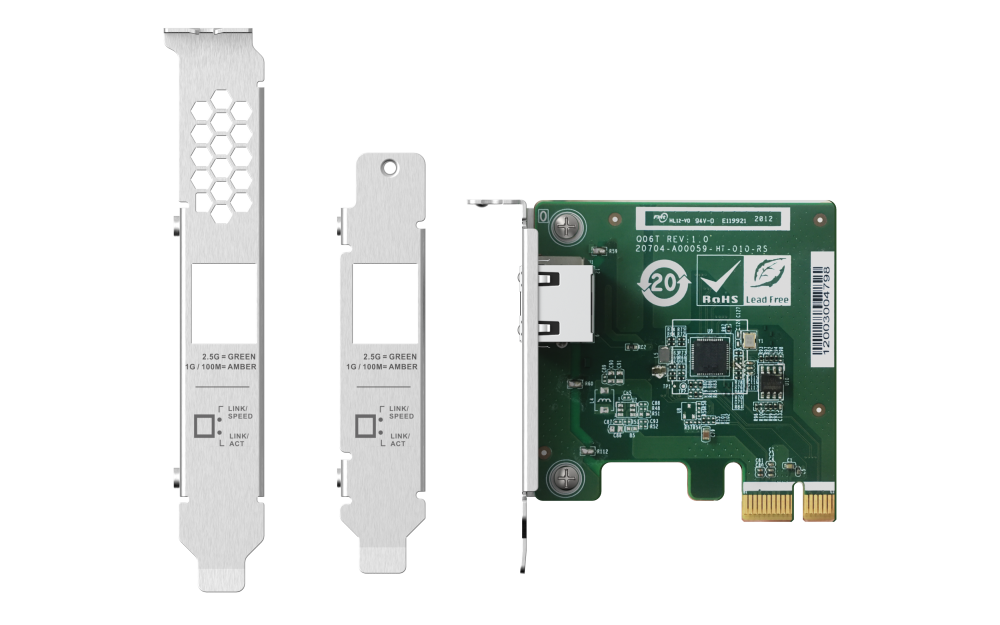

| Package Contents | 1 x Network card (Low-profile bracket pre-installed); 1 x QIG; 2 x Brackets (full-height and specialized for QNAP NAS) |
