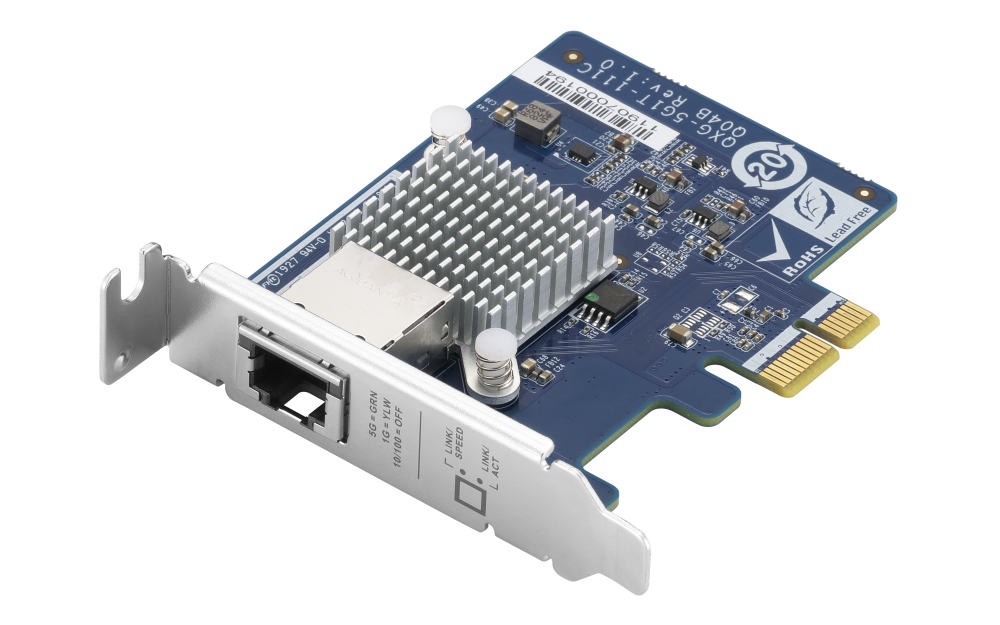

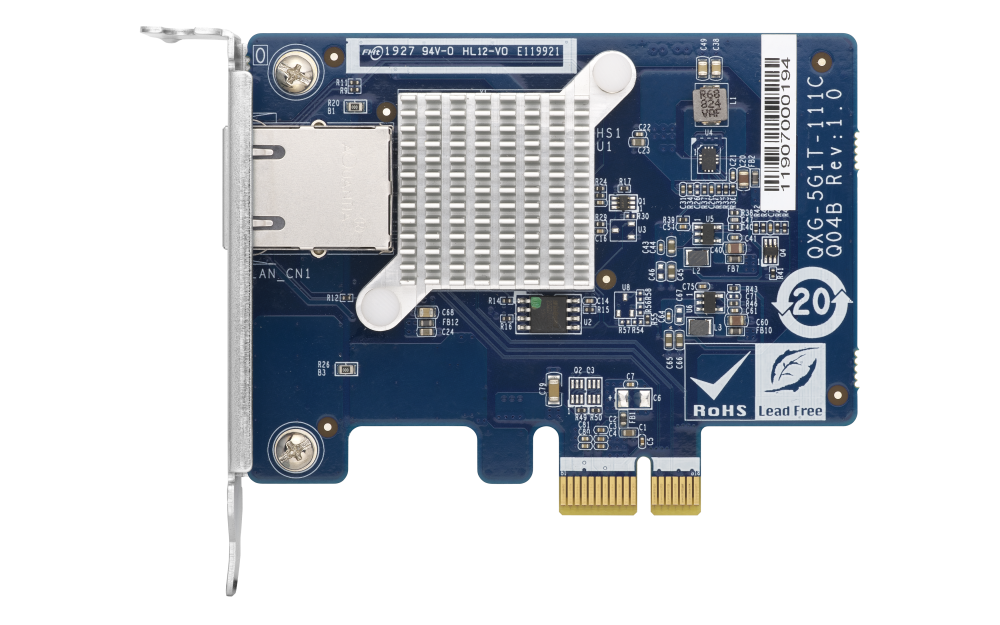

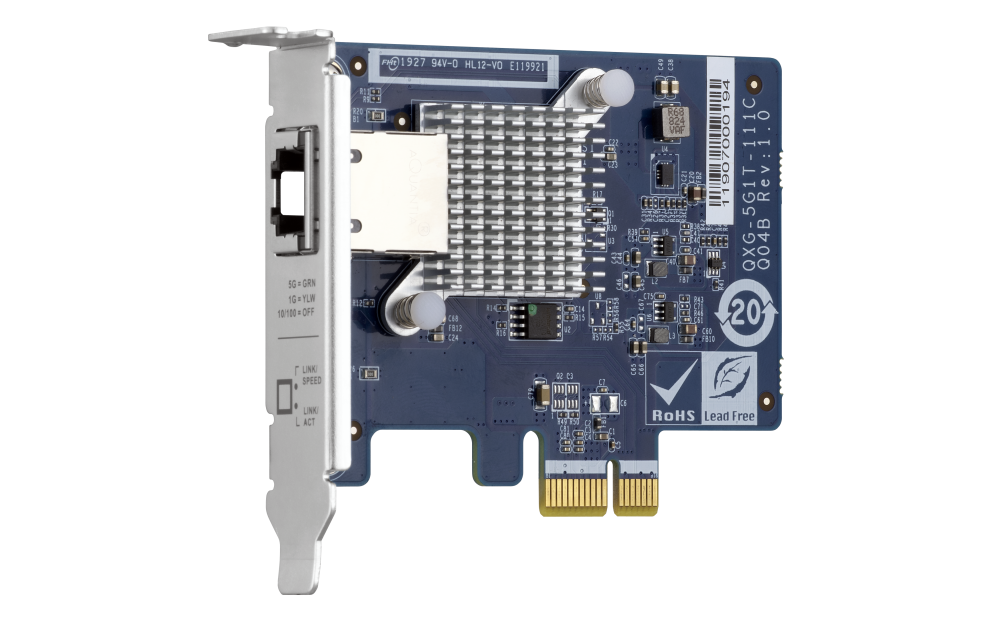

QNAP - QXG-5G1T-111C - 5GbE multi-Gig expansion card;Aquantia AQC111C
Part number:
QXG-5G1T-111C
Price:

QNAP offers various cost-effective network expansion cards for businesses and home users to easily upgrade the bandwidth of their QNAP NAS, servers and computers to accommodate high-speed data transfer and bandwidth-hungry applications.



QNAP offers affordable 5 GbE network expansion cards to assist organizations and individuals in enhancing the bandwidth of their PCs and workstations to accommodate intensive data transfer and virtualization applications. Empowering desktop PCs with lightning-fast 5 Gbps network access is now within reach for all users to effortlessly handle data-intensive tasks and speed up workflows in offices and homes.

ControllerMarvell AQtion AQC111C; Driver download: Marvell AQtion Driver Downloads (not required for QTS)
Number of Ports1 x NBASE-T (RJ45)
ConnectorNBASE-T (RJ45)
PCIe and LanesPCIe Gen 3.0 x1
Transmission Rates5Gbps/ 2.5Gbps/ 1Gbps/ 100Mbps
IEEE StandardsIEEE 802.3an
IEEE 802.3bz

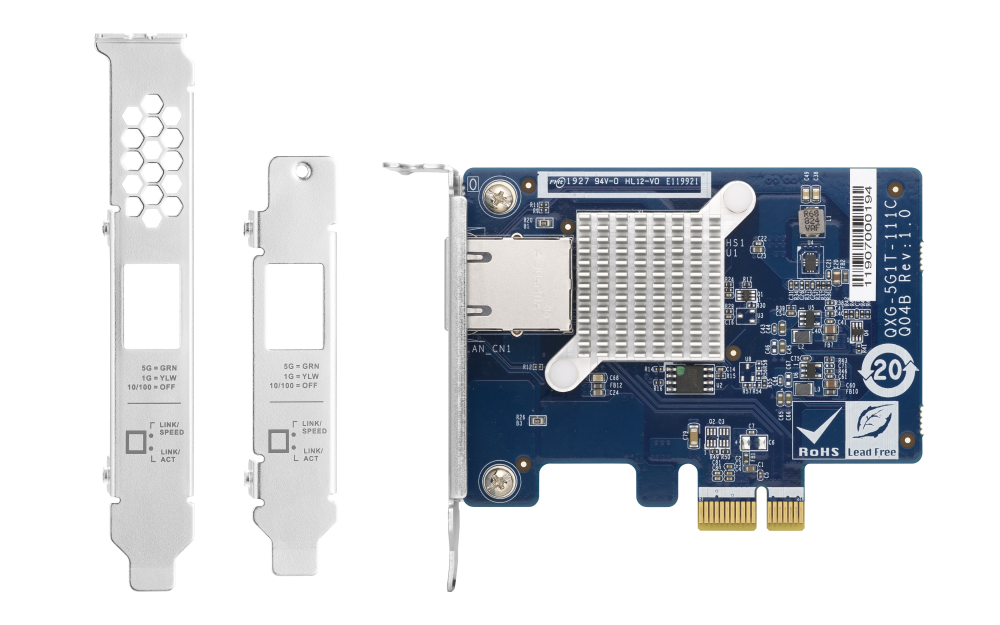

BracketLow-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
Supported NAS operating systemsQTS/QuTS hero (recommend an upgrade to the latest version); Windows (Driver required); Linux (Driver required)
Supported QNAP NASModels with PCIe slot(s) (1 free slot required)
Support Ubuntu Commercial Linux DistributionUbuntu 18.04/20.04
Support WindowsWindows 8/10
Port and CableRJ-45; over CAT-5e class cable
Package Contents1 x Network card; 1 x QIG; 3 x Brackets
