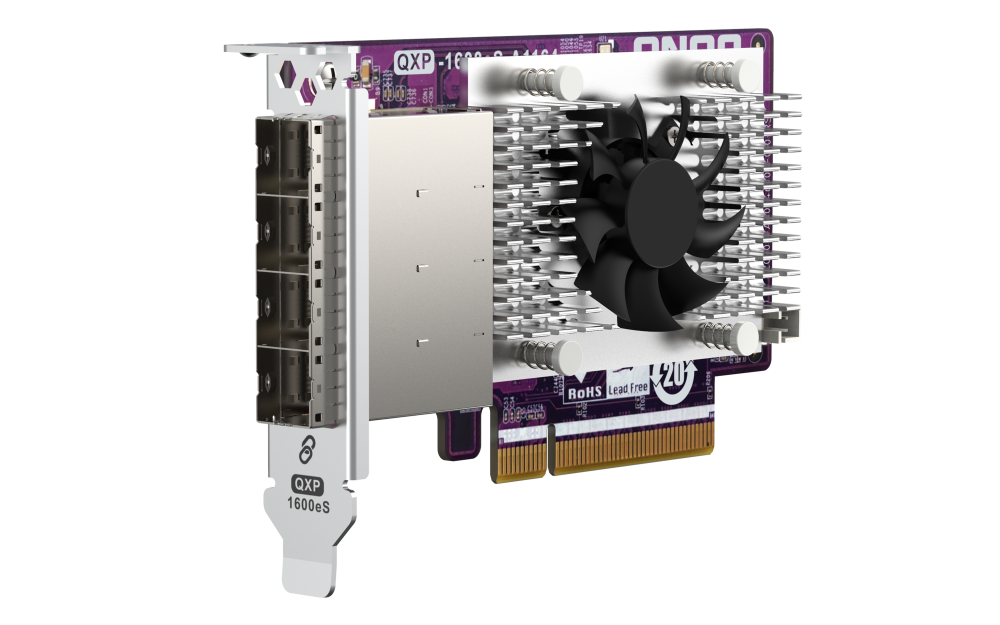

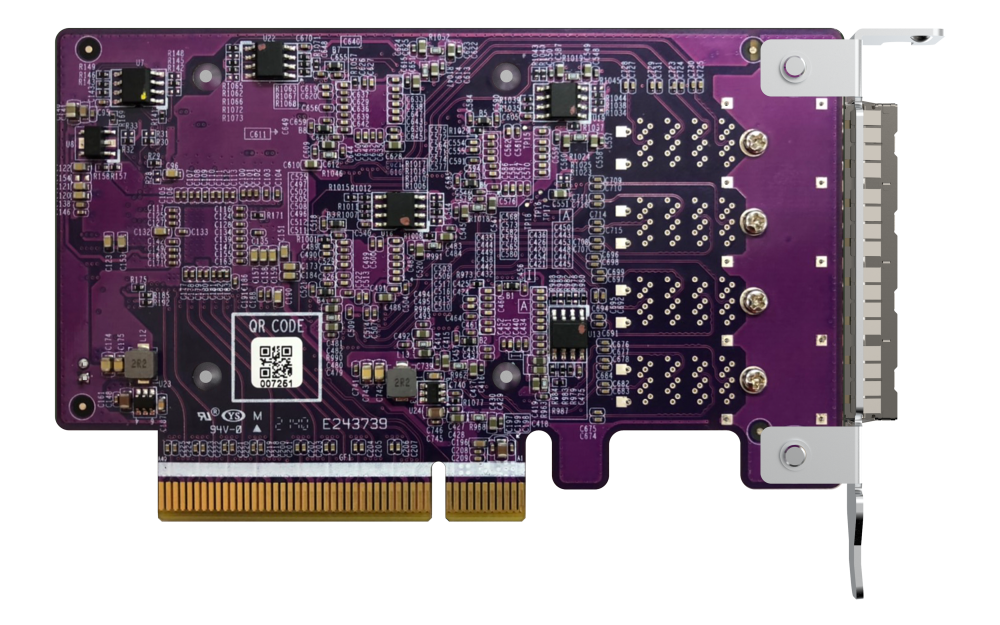

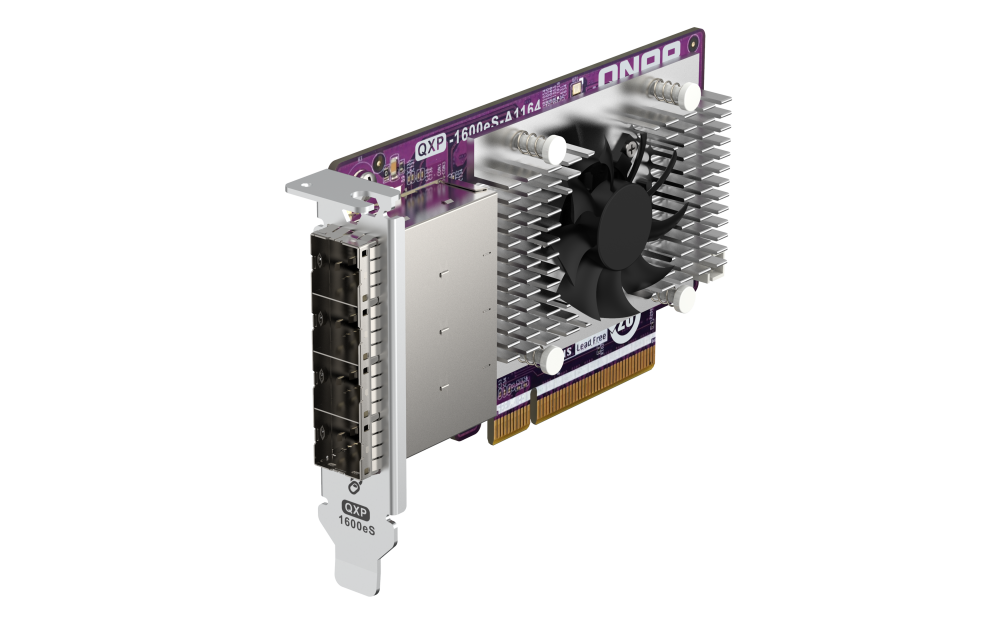

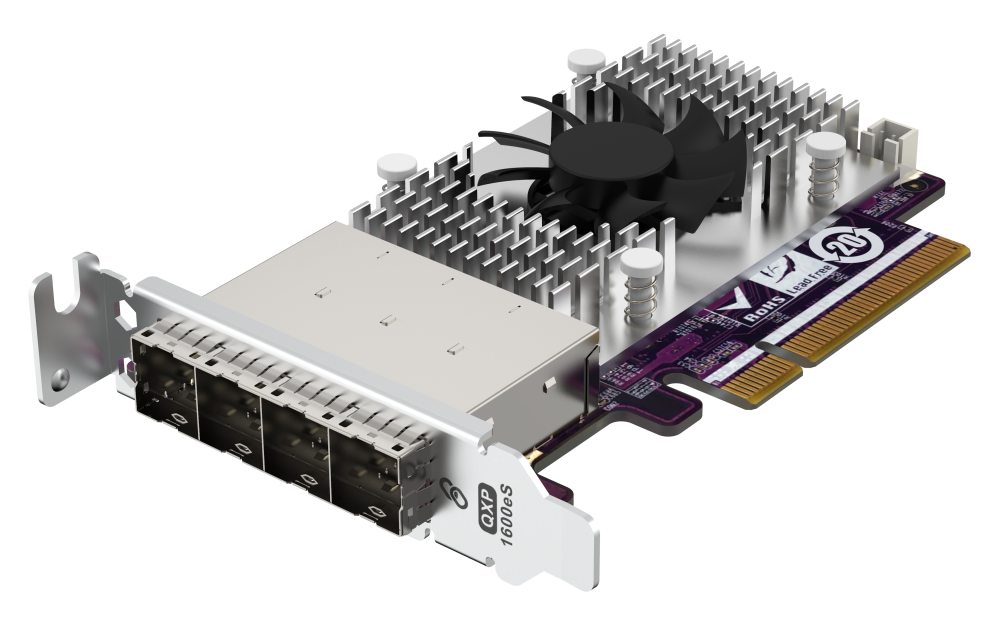

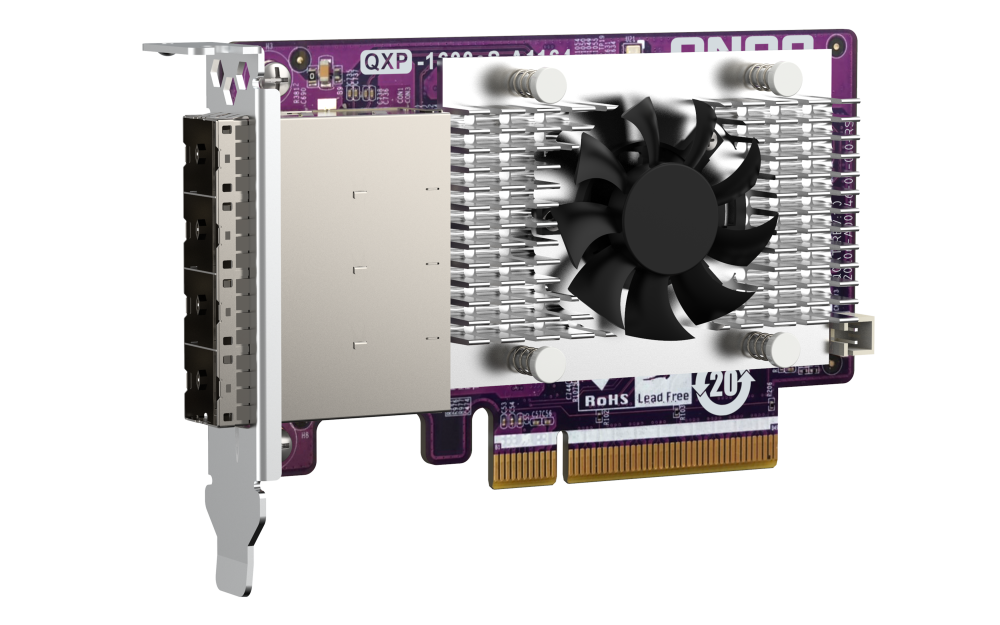

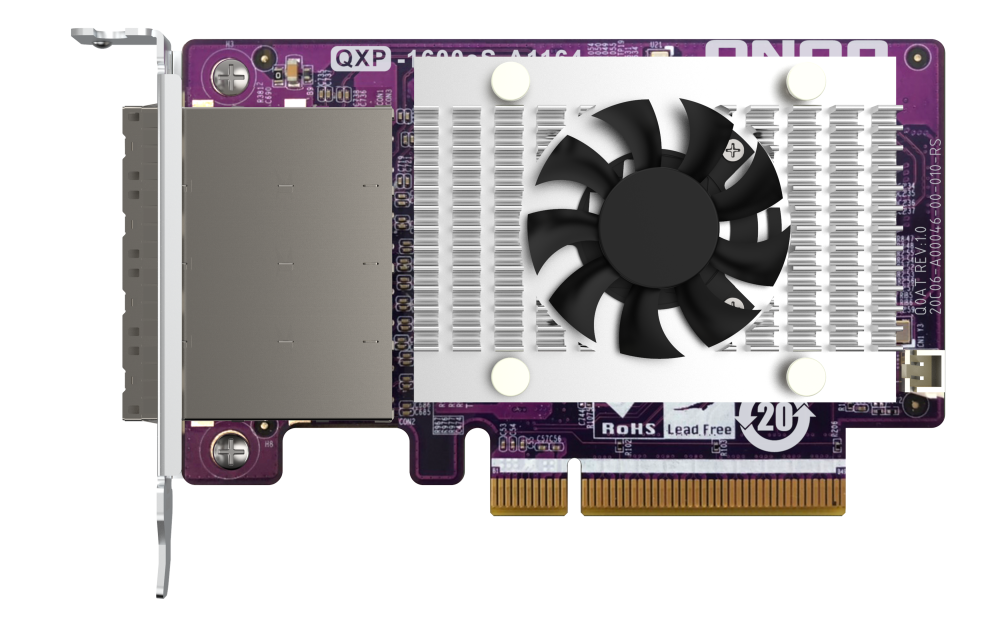

QNAP - QXP-1600eS-A1164 - 4-port miniSAS HD host bus adapter
Part number:
QXP-1600eS-A1164
Price:
4-port miniSAS HD host bus adapter, 16 x SATA, PCIe 3.0 x8, for QNAP NAS, Windows or Linux
The QNAP QXP-1600eS-A1164 expansion card is designed for QNAP’s TL series JBOD storage enclosures that support SATA drives. The storage capacity of a QNAP NAS or Windows®/ Ubuntu® (Linux®) PC can be easily expanded by installing a QXP-1600eS-A1164 into a PCIe slot, and then connecting it to a TL series JBOD storage enclosure using an SFF-8088 or SFF-8644 cable. The low-profile card form-factor allows the QXP-1600eS-A1164 to be compatible with a wide range of NAS, computers, and servers.
| Controller | 4 x PCIe to SATA Controllers |
| Connector | 4 x SFF-8644 |
| Supported SATA driver numbers | 16 x SATA 6Gb/s drives (Each SFF-8644 internal connector supports four SATA drives) |
| PCIe interfaces | PCIe Gen3 x8 (64Gbps) |
| Supported operating systems | QTS 4.5.4 or later, QuTS hero h4.5.4 or later - Windows 8 or later - Windows Server 2012 R2 or later - Linux with Kernel 3.10 or later |
| Form factor | 117.72 x 68.9 x 18.26 mm (Without connector 111.65 x 68.9 x 18.26 mm) |
| Cable | QNAP provides 1.0M SFF-8644 to SFF-8088 cable for optional purchase. Order number: CAB-SAS10M-8644-8088 |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
