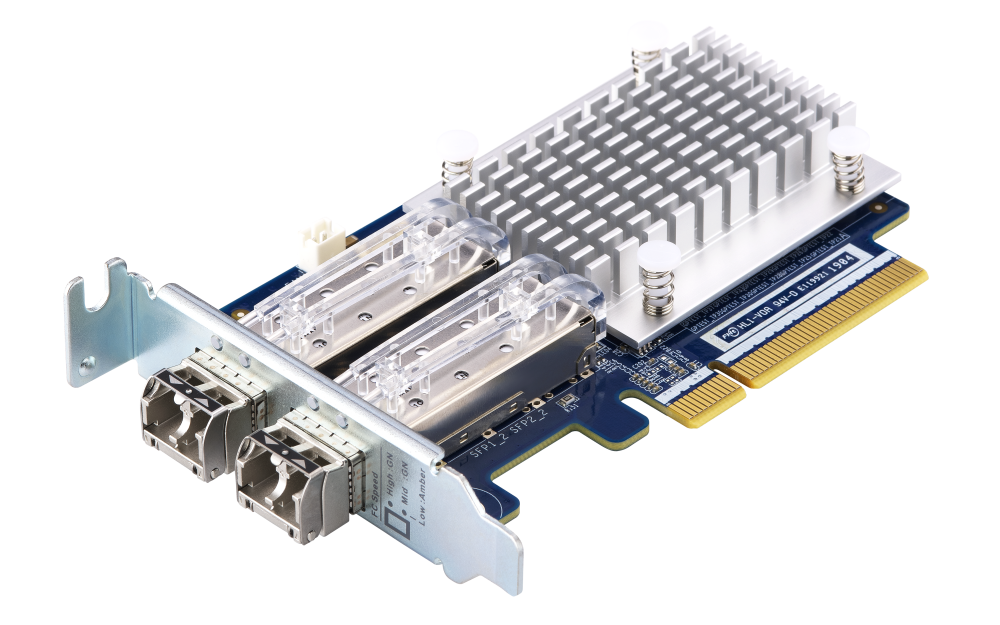

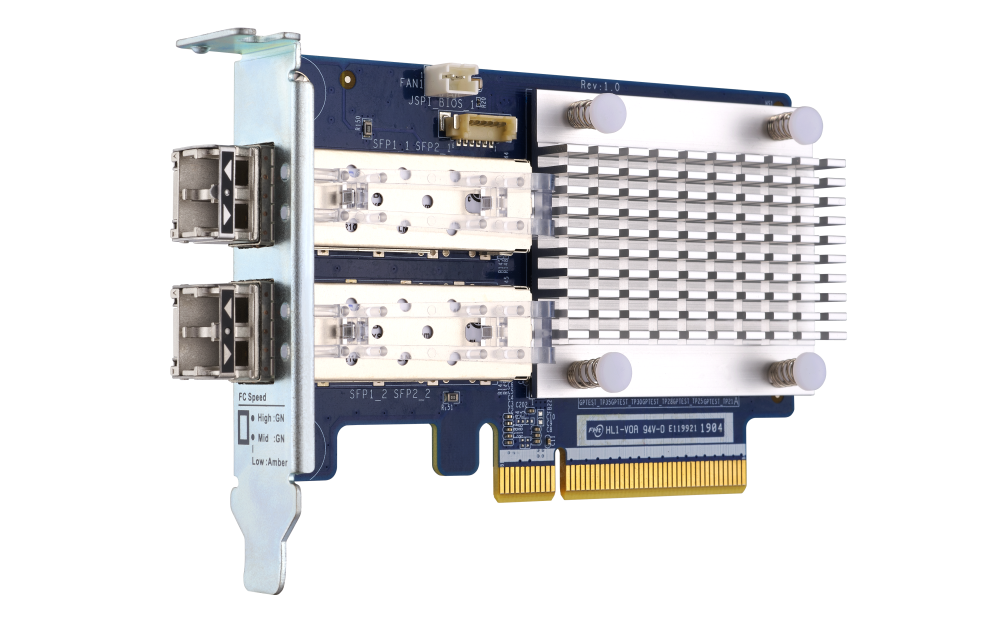

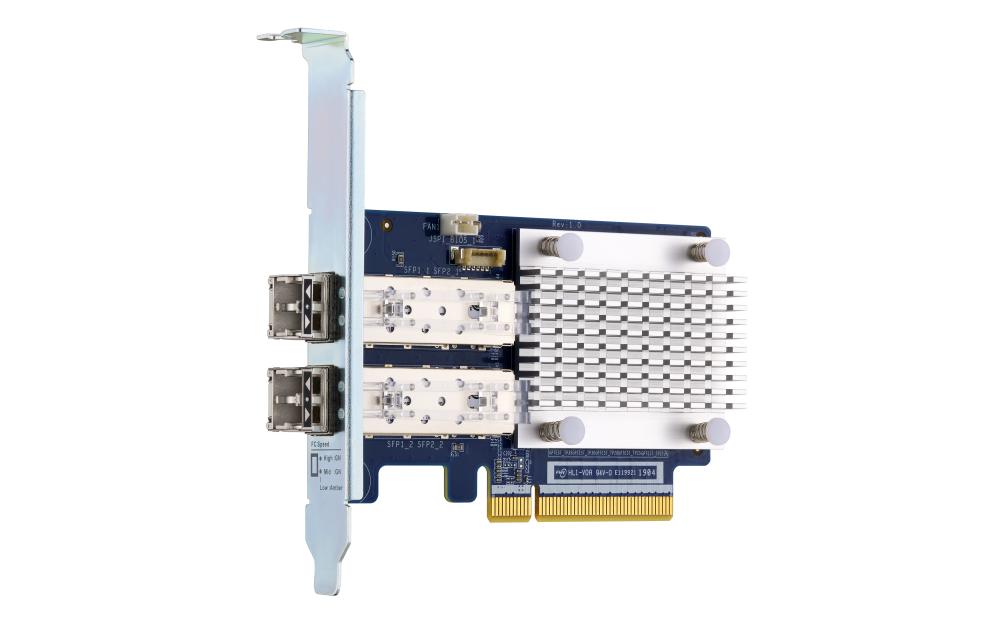

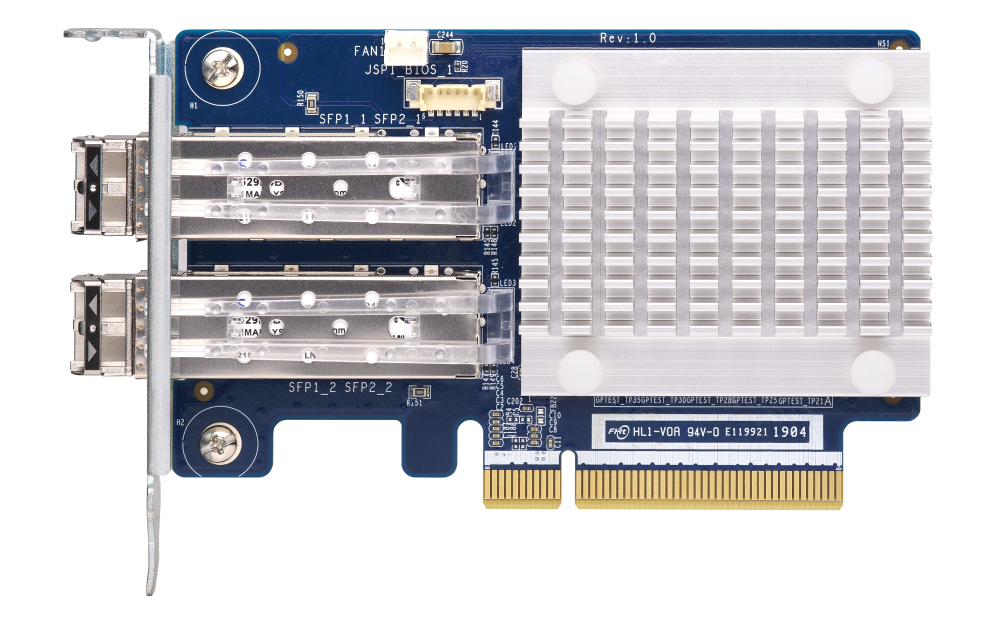

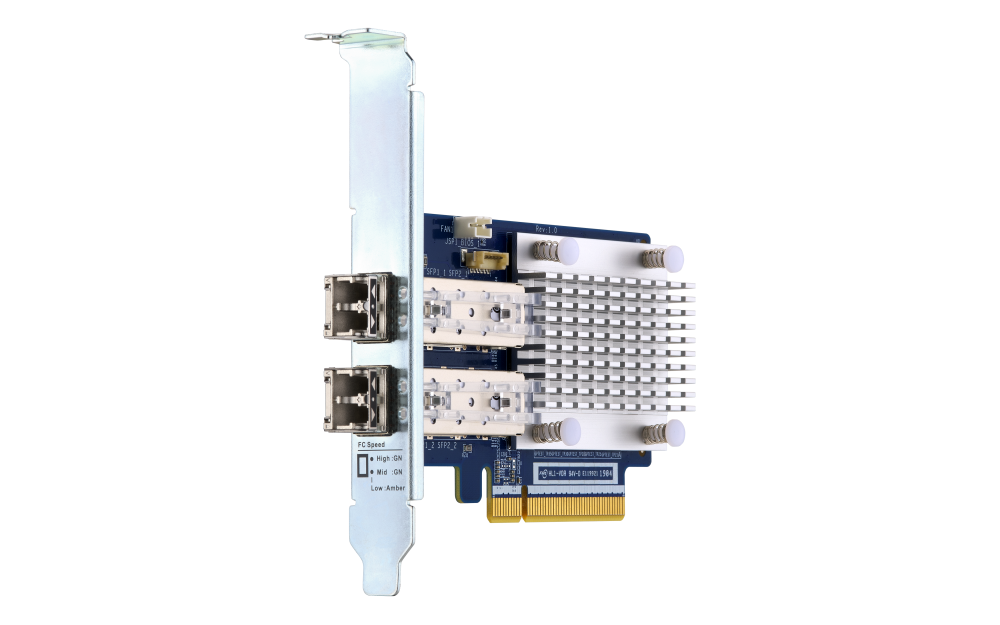

QNAP - QXP-32G2FC - 32G Fibre Channel Host Bus Adapter, 2 x Transceivers are Included
Part number:
QXP-32G2FC
Price:
Common Fibre Channel SAN (Storage Area Networks) are closed network environments, and their devices are often expensive while lacking deployment flexibility. QNAP introduces dual-port 16Gb/32Gb Fibre Channel expansion cards that feature high performance, reliability, security, and energy efficient Fibre Channel. With a QNAP Fibre Channel card in your QNAP NAS, your NAS can be added to an existing SAN environment at an affordable price point to fulfill requirements for high-performance storage and backup.
| PCIe and Lanes | PCIe Gen3 x8 |
| Transmission rates | Fibre Channel 32/16/8 Gb/s (Up to 28.05 Gb/s per port) |
| Form factor | Low-profile PCIe card10.68 x 6.89 cm (4.20 x 2.71 inches) |
| Supported NAS operating system | QTS 4.4.1 / QuTS hero 4.5.0 (or later) for QNAP NAS with PCIe slots as a FC Target. Check Compatible NAS Models |
| Bracket | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| Port and cable | 32Gb Transceiver* (bundled with 2 x TRX-32GFCSFP-SR short wavelength SFP+ transceivers) and Fibre LC Cable (optical purchase) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | –20°C to 70°C (–4°F to 158°F) |
| Relative humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Note | *Only QNAP certified transceivers are supported. Check compatibility list. Note: QNAP Fibre Channel cards can only be installed in a QNAP NAS (with the QTS or QuTS hero operating system) as a Fibre Channel Target. Windows, Linux, and other systems are not supported. |
