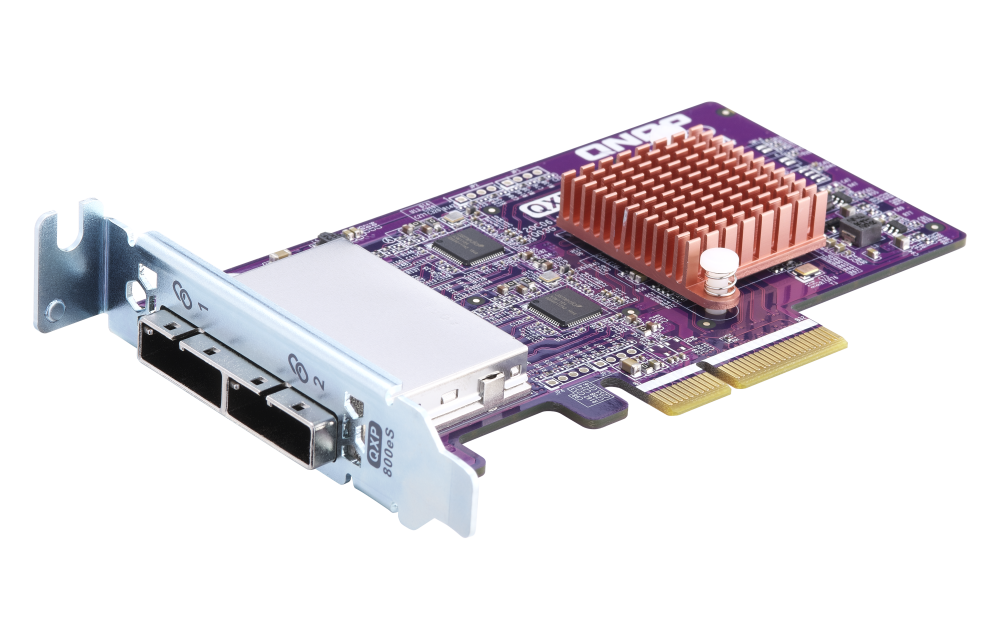

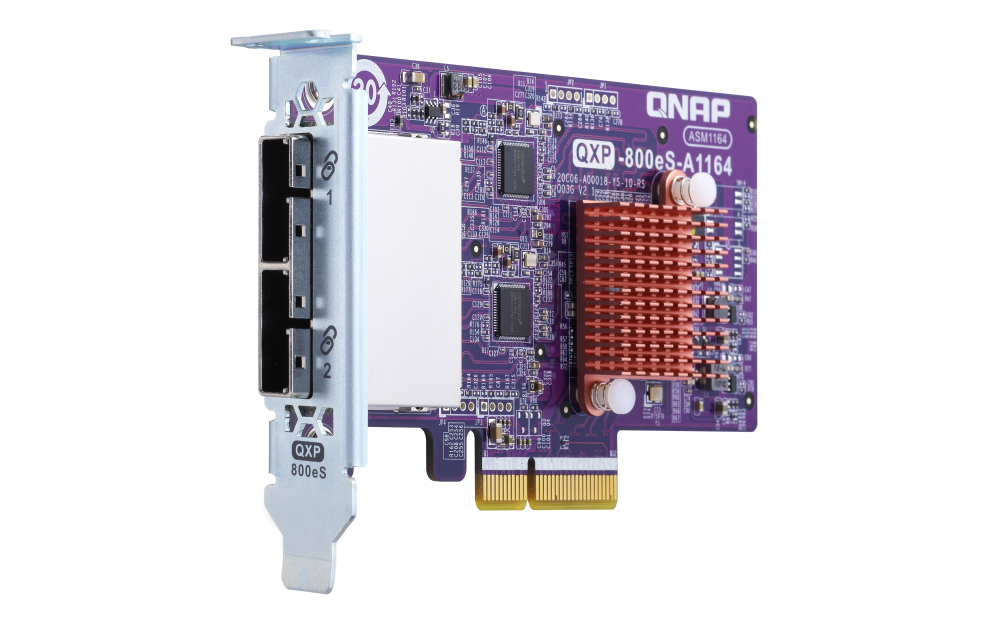

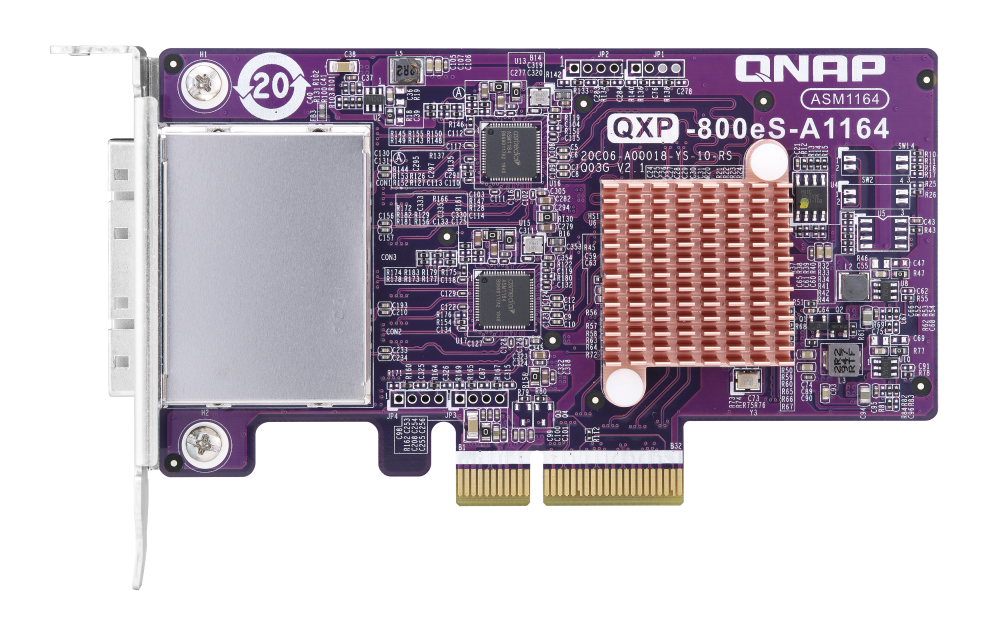

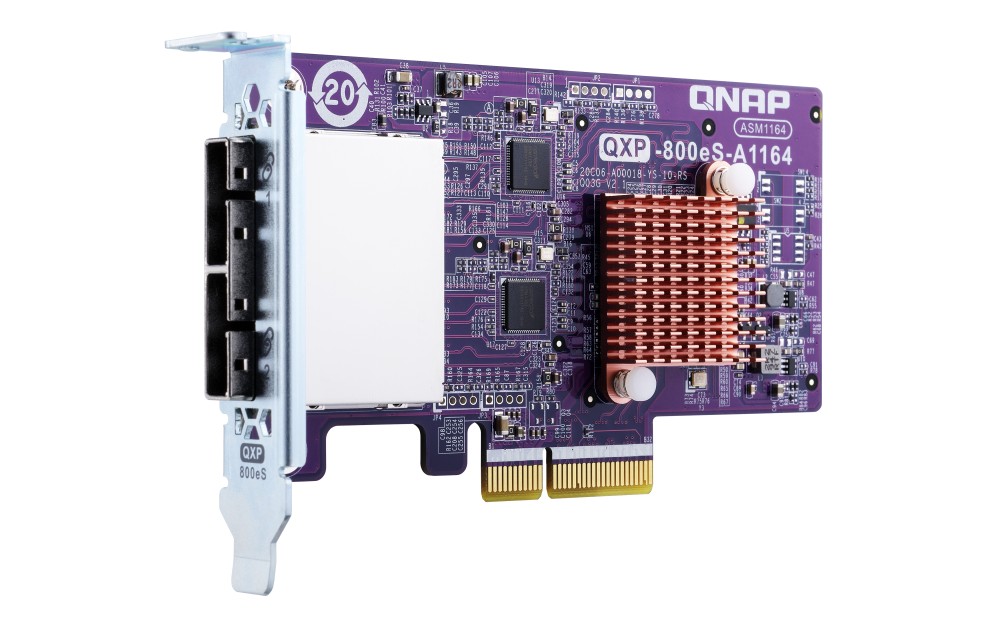

QNAP - QXP-800eS-A1164 - 2-port SFF-8088 SATA host bus adapter
Part number:
QXP-800eS-A1164
Price:
2-port SFF-8088 SATA host bus adapter, 8 x SATA 6Gb/s, PCIe 3.0 x4, for QNAP NAS, Windows or Linux
The QXP SATA expansion cards are designed for QNAP’s TL series JBOD storage enclosures that support SATA drives. Expand storage capacity easily by installing a QXP SATA expansion card into the PCIe slot of a QNAP NAS or Windows®/ Ubuntu® (Linux®) PC, and then connect the TL series JBOD storage enclosures using an SFF-8088 (or SFF-8644) cable. The low-profile card form-factor allows QXP SATA expansion cards to be compatible with a wide variety of NAS, computers, and servers.
| Controller | Asmedia ASM1164 |
| Connector | 2 x SFF-8088 |
| Supported SATA driver numbers | 8 x SATA 6Gb/s drives (Each SFF-8088 connector supports four SATA drives) |
| PCIe interfaces | PCIe Gen3 x4 (32Gbps) |
| Supported operating systems | QTS 4.4.2 or later, QuTS hero - Windows 8 or later - Windows Server 2012 R2 or later - Linux with Kernel 3.10 or later |

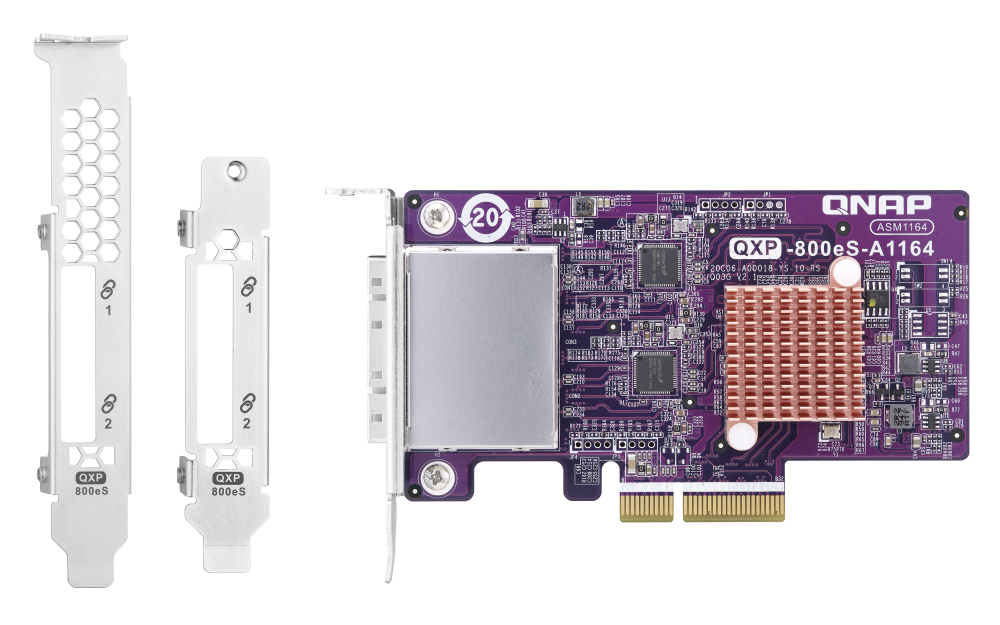

| Form factor | Low-profile 119.65 x 68.9 x 17.24 mm (Without bracket 119.65 x 68.9 x 12 mm) |
| Cable | QNAP provides 1.0M SFF-8088 cable for optional purchase. Order number: CAB-SAS10M-8088 |
