QNAP - TL-D400S-US - 4-bay desktop SATA JBOD expansion unit with a QXP-400eS-A1164 PCIe SATA host card and 1 SFF-8088 to SFF-8088 SAS/SATA 6Gb/s external cables
QNAP - TL-D400S-US - 4-bay desktop SATA JBOD expansion unit with a QXP-400eS-A1164 PCIe SATA host card and 1 SFF-8088 to SFF-8088 SAS/SATA 6Gb/s external cables
Part number:
TL-D400S-US
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

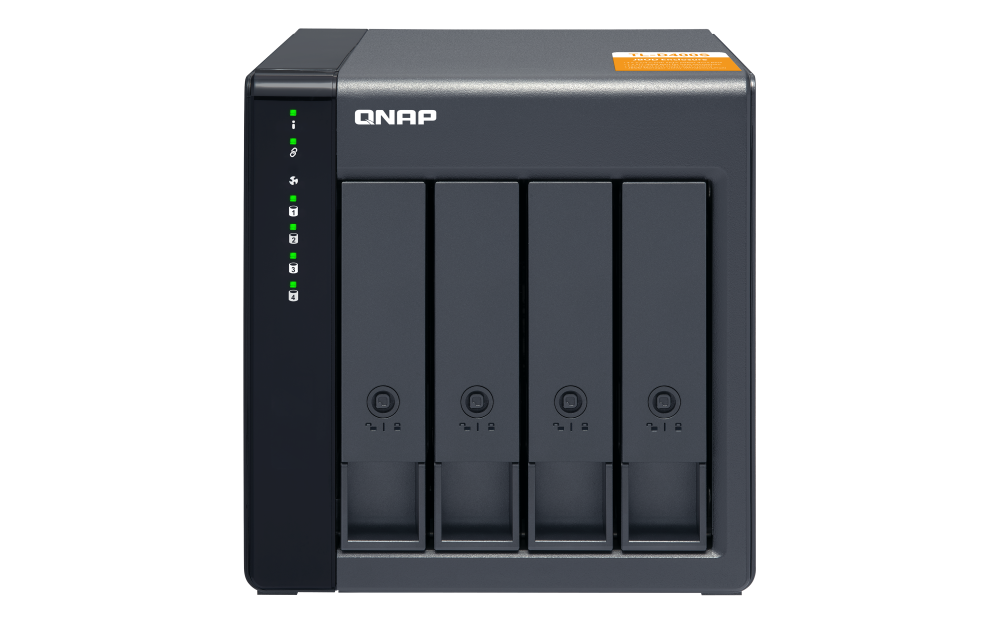

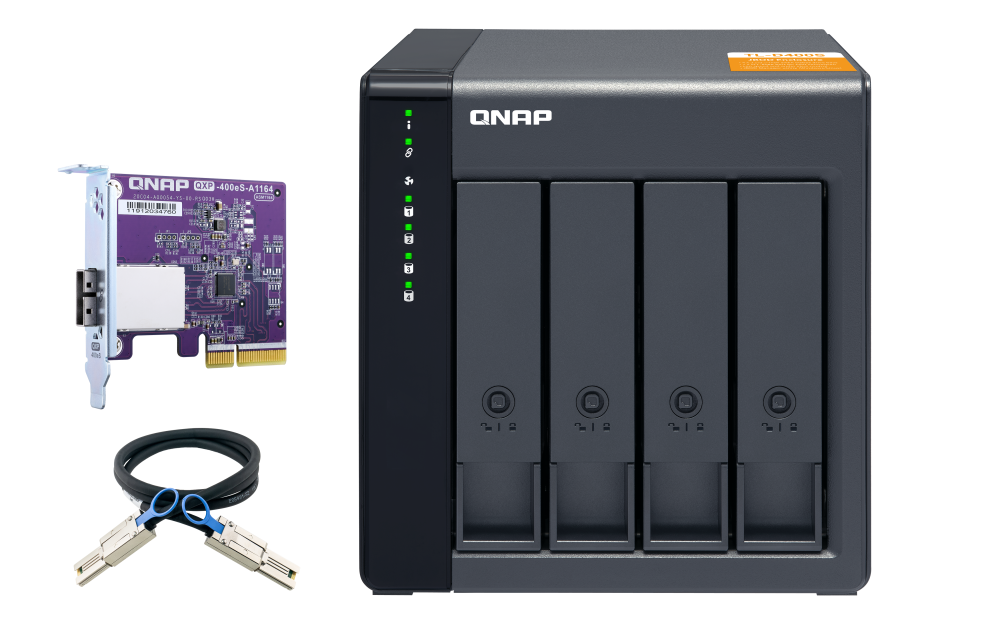

TL-D400S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-D400S features four 3.5-inch SATA 6Gb/s drive bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.



Features:

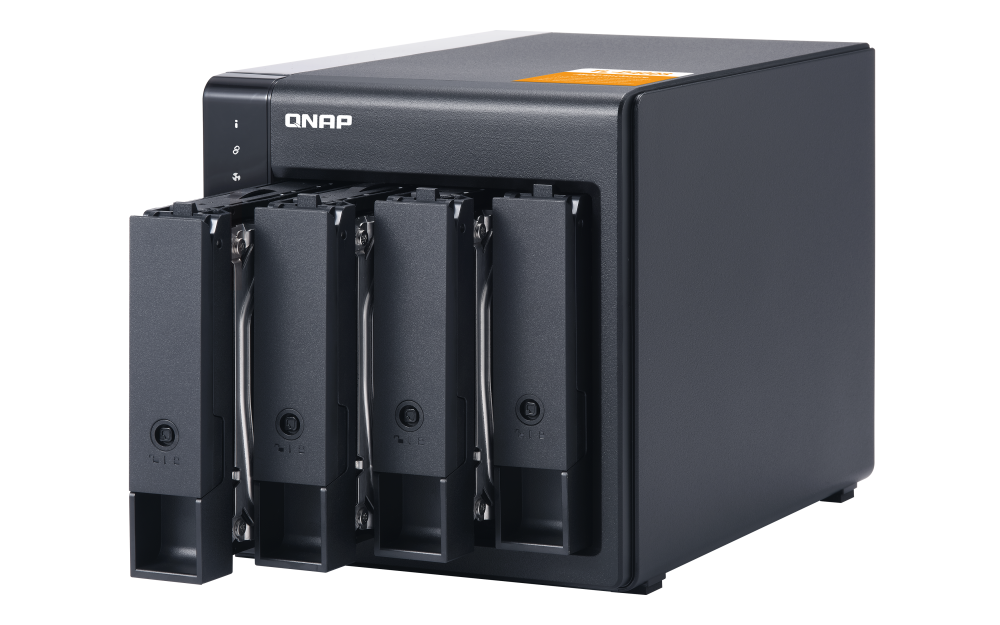

  • Lockable hard drive trays prevent accidental drive removal.
  • SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
  • Easy to use. QNAP NAS and PC can both use utility software to monitor, obtain, and manage JBOD information.

Hardware Spec



Drive Bay4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Audio Alert On/Off SwitchYes
Form FactorTower
Host Interface1 x SFF-8088
LED IndicatorsHDD 1-4, Status, Link, Fan error
ButtonsPower switch
Dimensions (HxWxD)168.5 × 160.2 × 219 mm
Weight (Net)3.66 kg
Max. number of HDDs/SSDs supported4
Hard Drive Type3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Operating Temperature0 - 40 °C (32°F - 104°F)
Storage Temperature-20 - 70°C (-4°F - 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit65W adapter, 100 - 240V
Power Consumption: Operating Mode, Typical

22.985 W

Tested fully populated with Seagate ST6000NM0024 hard drives.

Fan Mode Switch(Auto, high, medium, low)

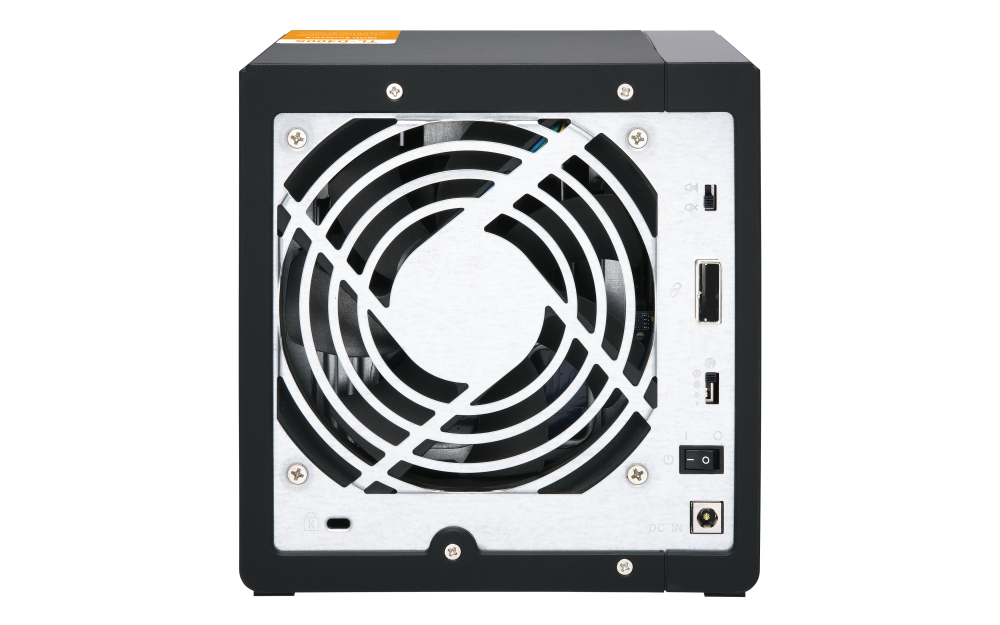

Fan1 x 120mm, 12VDC
System WarningBuzzer
Kensington Security SlotYes


Software Spec



Supported O.S.QNAP QTS / QuTS hero, Windows, Linux
QTS / QuTS hero
  1. QTS 4.4.2 / QuTS hero h4.5.0 (or newer)
  2. QTS QTS drive monitoring and storage pool support
  3. QTS advanced drive features such as bad block scan, Erase,Performance Test, Seagate Ironwolf IHM
  4. RAID migrated & expanded
  5. Qtier on Enclosure



Utility for other platform
  1. QNAP JBOD Manager
  2. Windows: Win8 or nerwer / Server2012 R2 or newer
  3. Linux:Ubuntu
  4. Device Info
    (Health/Bus type/PSU/Temperature/FAN)
  5. Device Temperature Warning & automatic FAN control
  6. Event Log (support Export)
  7. Enclosure located via LED & beep
  8. LCM + enclosure customizable naming
  9. SATA wiring determination
