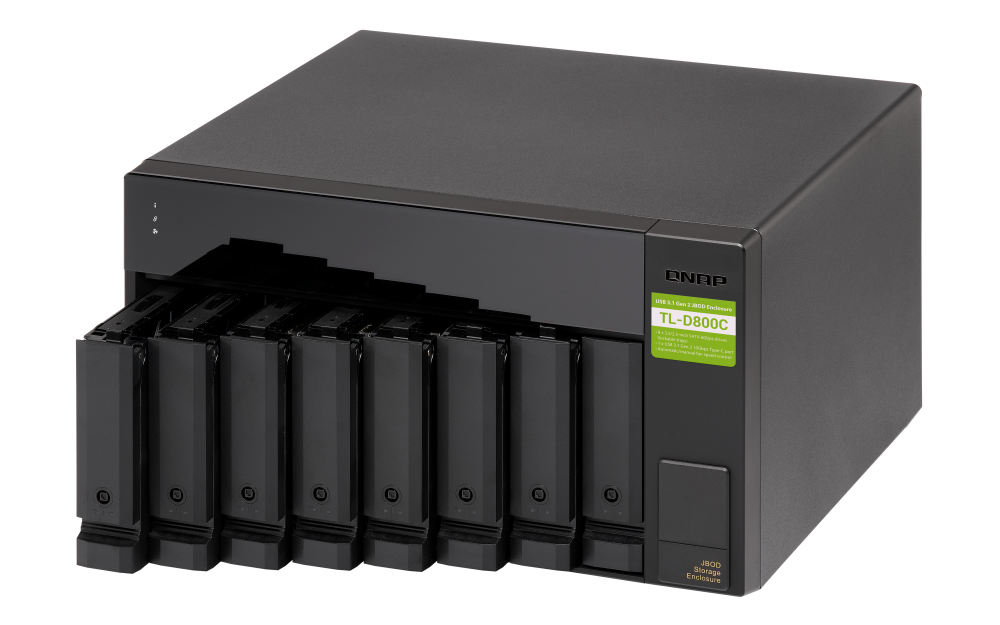

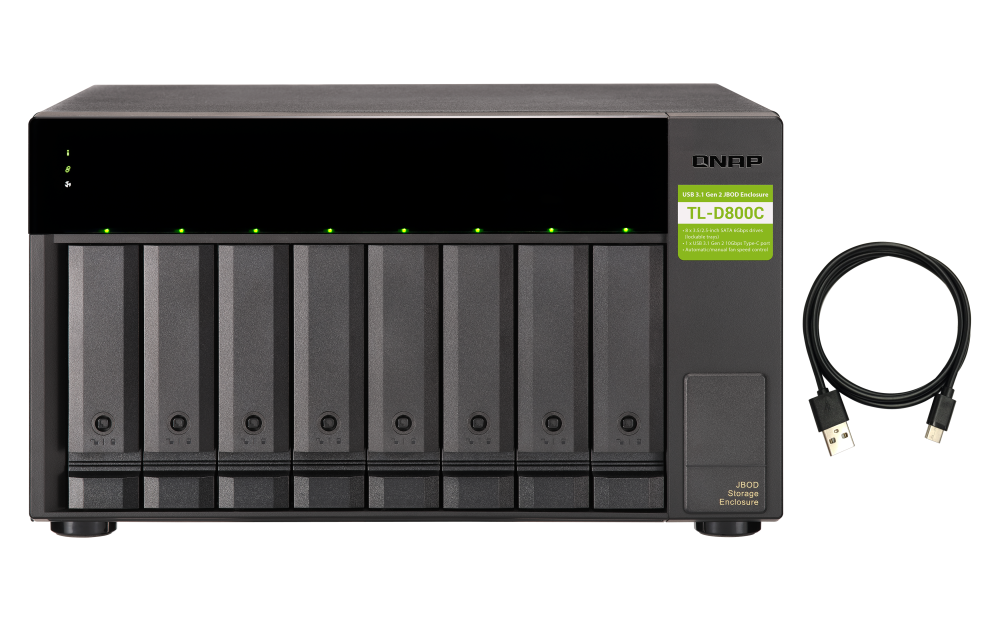

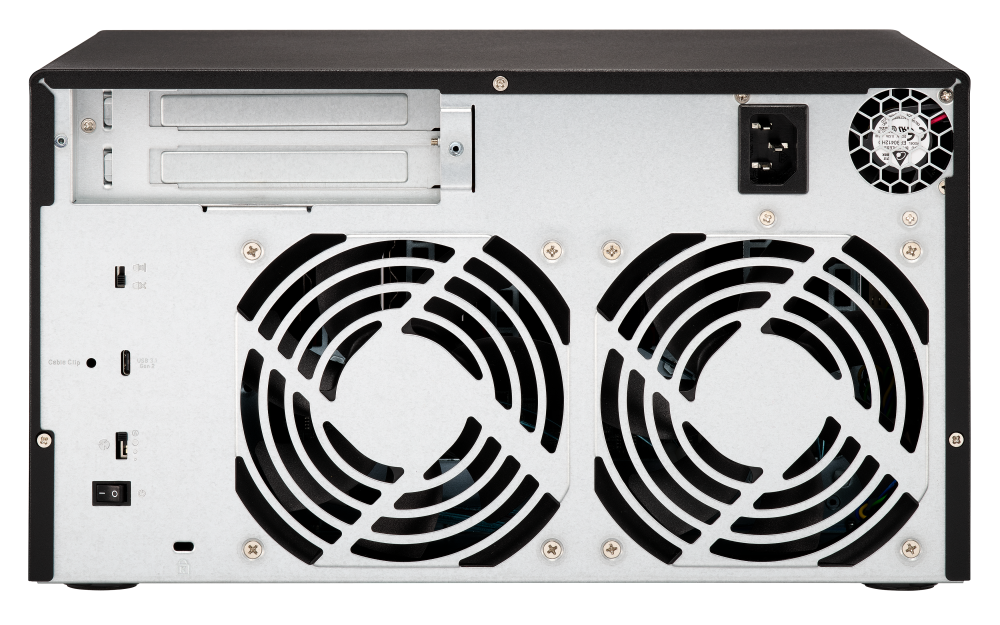

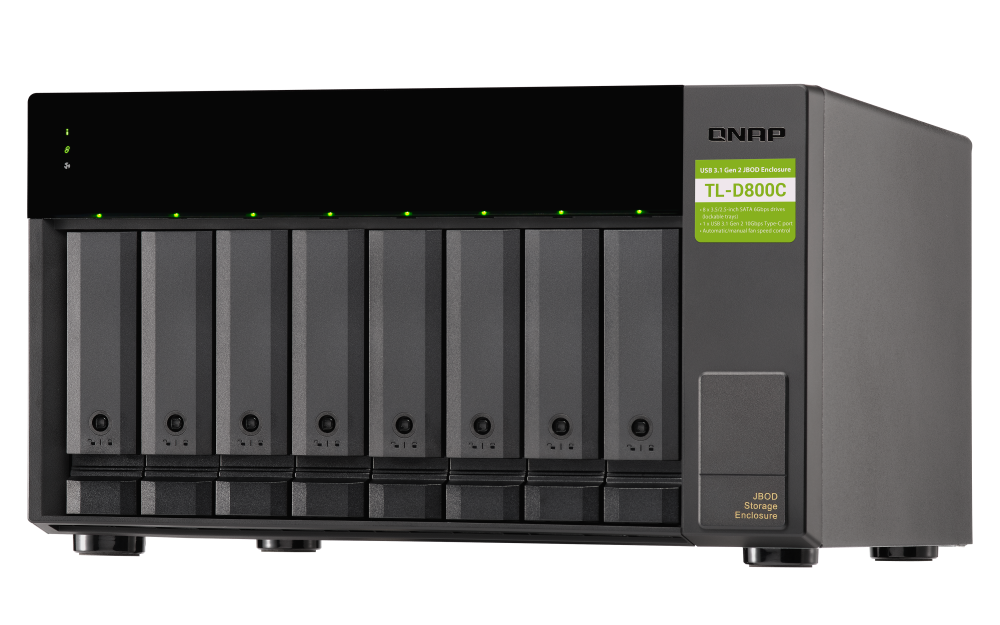

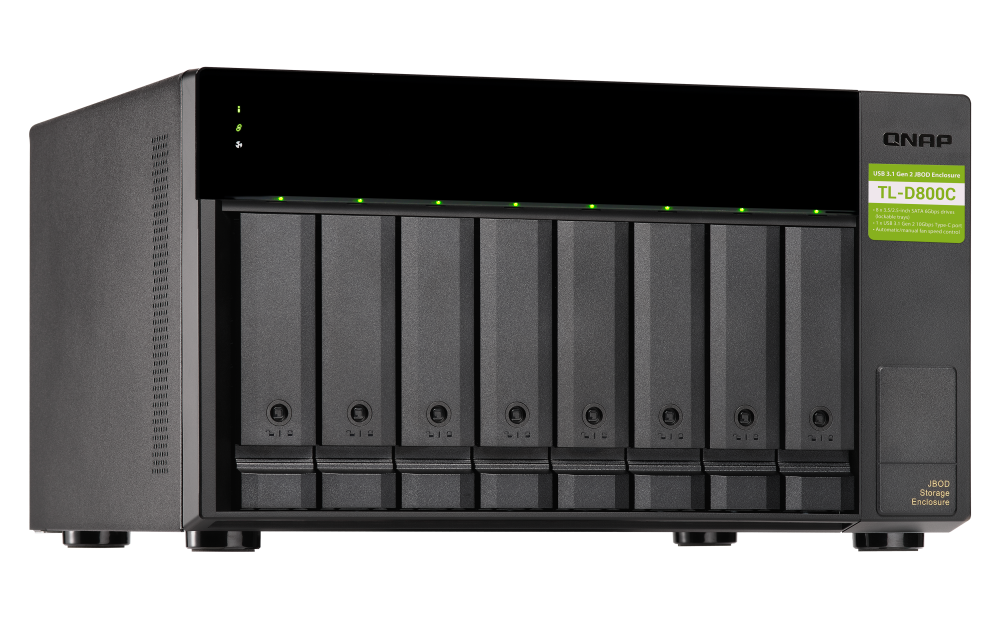

QNAP - TL-D800C-US - 8-bay desktop USB-C 3.1 Gen2 10Gbps JBOD expansion unit with a 1-meter USB-C to USB-A 3.1 Gen2 cable
Part number:
TL-D800C-US
Price:
The TL-D800C JBOD storage enclosure allows you to back up and expand your QNAP NAS. The TL-D800C features eight 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.
Features:
- USB 3.2 Gen2 Type-C connectivity* provides up to 10 Gb/s data transfer speeds. The port can support USB Type-A to Type-C connection or Thunderbolt 3 Type-C connection using different cables.
- Lockable hard drive trays prevent accidental drive removal.
- Supports SATA 6Gb/s drives for reliable read/write performance.
Hardware Spec
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Audio Alert On/Off Switch | |
| Form Factor | Tower |
| Host Interface | 1 x USB 3.2 Gen 2 Type-C |
| LED Indicators | HDD 1-8, Status, Link, Fan error |
| Buttons | Power switch |
| Dimensions (HxWxD) | 188.2 × 329.3 × 281.4 mm |
| Weight (Net) | 6.18 kg |
| Weight (Gross) | 7.54 kg |
| Max. number of HDDs/SSDs supported | 8 |
| Hard Drive Type | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 48.4 W Tested with drives fully populated. |
| Fan Mode Switch | (Auto, high, medium, low) |
| Fan | 2 x 120mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot |
Software Spec
| Supported O.S. | QNAP QTS / QuTS hero, Windows, Mac, Linux |
| QTS / QuTS hero | QTS 4.4.2 / QuTS hero h4.5.0 (or newer) |
| QTS QTS drive monitoring and storage pool support | Yes |
| QTS advanced drive features such as bad block scan, Erase,Performance Test, Seagate Ironwolf IHM | Yes |
| RAID migrated & expanded | Yes |
| Qtier on Enclosure | Yes |
| Utility for other platform | QNAP JBOD Manager |
| Windows | Win8 or nerwer / Server2012 R2 or newer |
| Mac | MacOS 10.13 or newer |
| Linux | Ubuntu 18.04 |
| Device Info (Health/Bus type/PSU/Temperature/FAN) | Yes |
| Device Temperature Warning & automatic FAN control | Yes |
| Event Log (support Export) | Yes |
| Enclosure located via LED & beep | Yes |
| LCM + enclosure customizable naming | N/A |
| SATA wiring determination | N/A |
