QNAP - TL-D800S-US - 8-bay desktop SATA JBOD expansion unit with a QXP-800eS-A1164 PCIe SATA host card and 2 SFF-8088 to SFF-8088 SAS/SATA 6Gb/s external cables
Part number:
TL-D800S-US
Price:

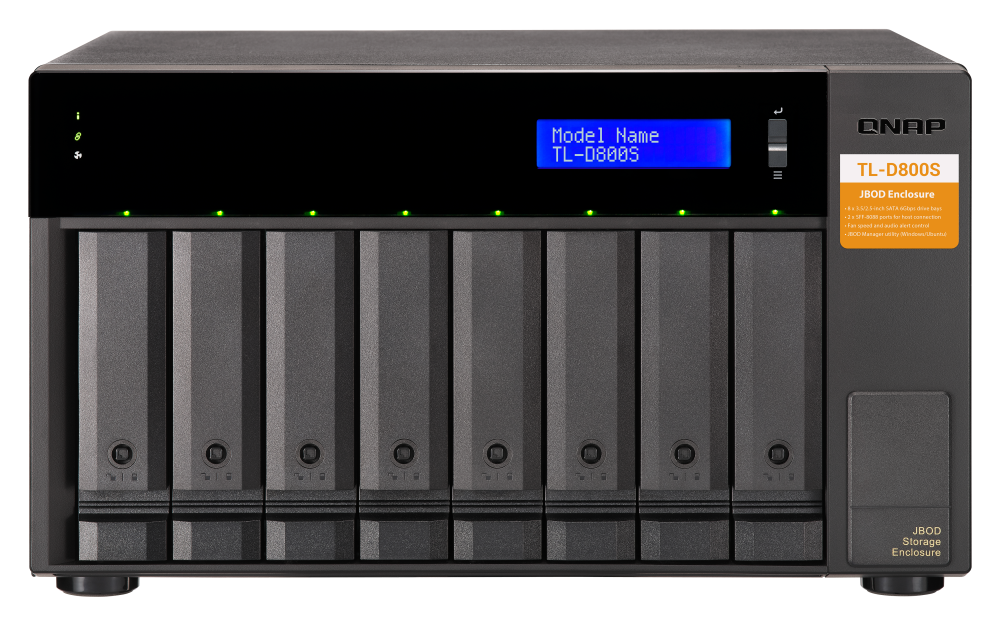

TL-D800S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-D800S features eight 3.5-inch SATA 6Gb/s drive bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.
Features:
- Lockable hard drive trays prevent accidental drive removal.
- SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
- Easy to use. QNAP NAS and PC can both use utility software to monitor, obtain, and manage JBOD information.
Hardware Spec
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Audio Alert On/Off Switch | Yes |
| Form Factor | Tower |

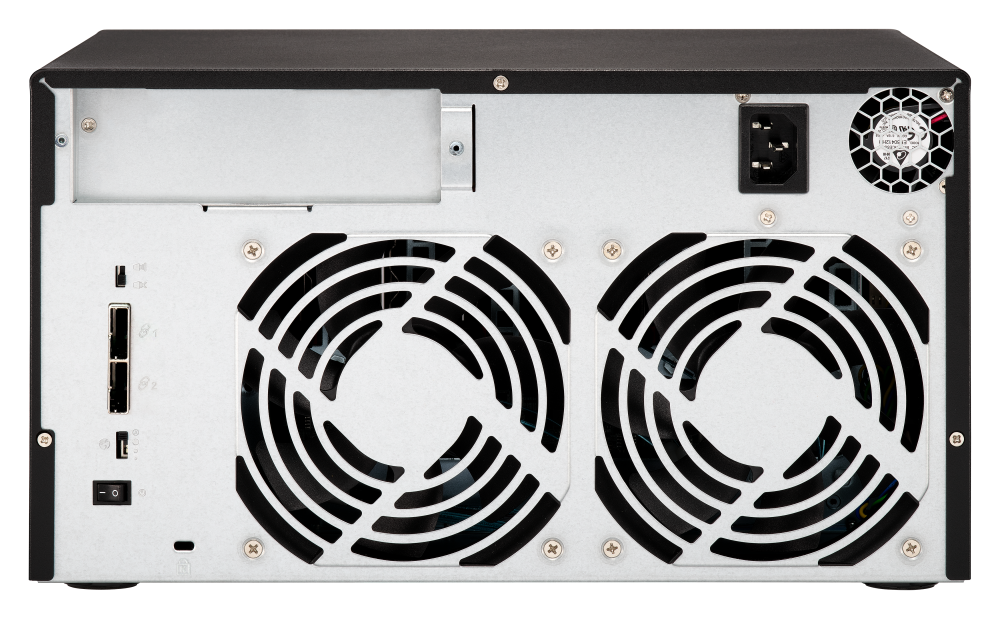

| Host Interface | 2 x SFF-8088 |
| LED Indicators | HDD 1-8, Status, Link, Fan error |
| LCD Display/ Button | Yes |
| Buttons | Power switch, enter, select |
| Dimensions (HxWxD) | 188.2 × 329.3 × 279.6 mm |
| Weight (Net) | 6.17 kg |
| Max. number of HDDs/SSDs supported | 8 |
| Hard Drive Type | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 51.606 W Tested fully populated with Seagate ST6000NM0024 hard drives. |
| Fan Mode Switch | (Auto, high, medium, low) |
| Fan | 2 x 120mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
Software Spec
| Supported O.S. | QNAP QTS / QuTS hero, Windows, Linux |
| QTS / QuTS hero |
|
| Utility for other platform |
|
Name
Description
Size
Downloads
File
Datasheet
0.1mb
