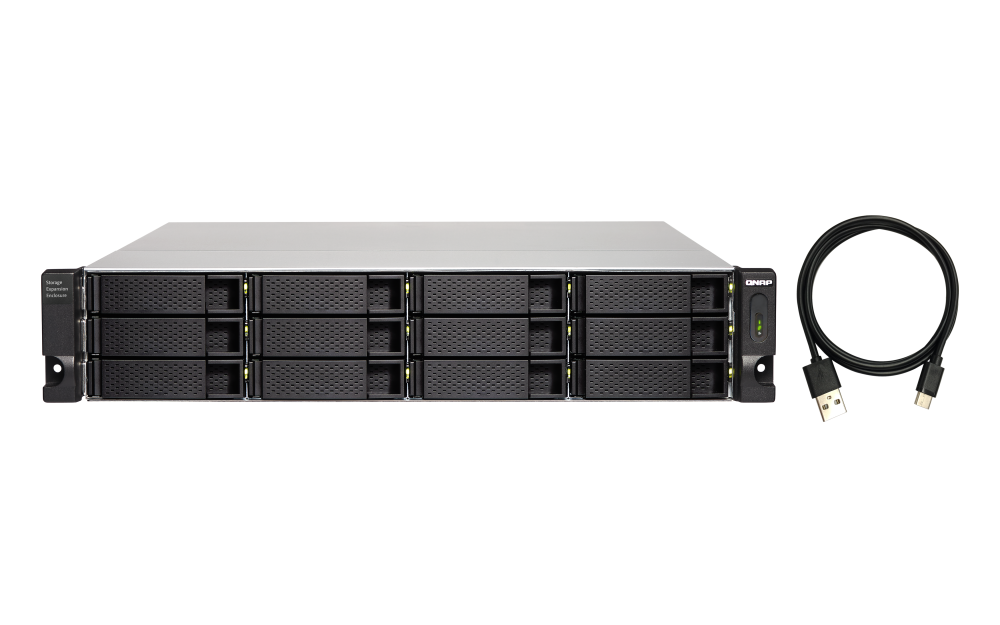

QNAP - TL-R1200C-RP-US - 12-bay 2U rackmount USB-C 3.1 Gen2 10Gbps JBOD expansion unit, redundant PSU, with a 1-meter USB-C to USB-A 3.1 Gen2 cable
Part number:
TL-R1200C-RP-US
Price:
The rackmount TL-R1200C-RP JBOD storage enclosure allows you to back up and expand your QNAP NAS, computers (supports Windows and Mac), and servers. The TL-R1200C-RP features twelve 3.5-inch SATA 6Gb/s drive bays with USB 3.2 Gen 2 (10 Gbps) Type-C connectivity to provide a fast and smooth expansion solution.
Features:
- USB 3.2 Gen 2 Type-C connectivity* provides up to 10 Gb/s data transfer speeds. The port can support USB Type-A to Type-C connection or Thunderbolt 3 Type-C connection using different cables.
- Provides high capacity and affordability, making it an excellent backup solution for QNAP NAS.
- 250W redundant power supply to ensure maximum system uptime.
Hardware Spec
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
|---|---|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Audio Alert On/Off Switch | Yes |
| Form Factor | 2U Rackmount |
| Host Interface | 1 x USB 3.2 Gen 2 Type-C |
| LED Indicators | HDD 1-12, Status, Link, Fan error |
| Buttons | Power switch |
| Dimensions (HxWxD) | 88.6 × 482 × 562.5 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 11.03 kg |
| Weight (Gross) | 14.29 kg |
| Max. number of HDDs/SSDs supported | 12 |
| Hard Drive Type | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W(x2) PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 82.26 W Tested with drives fully populated. |
| Fan Mode Switch | (Auto, high, medium, low) |
| Fan | 2 x 70mm, 12VDC |
| System Warning | Buzzer |
Software Spec
| Supported O.S. | QNAP QTS / QuTS hero, Windows, Mac, Linux |
| QTS / QuTS hero | QTS 4.4.2 / QuTS hero h4.5.0 (or newer) |
| QTS QTS drive monitoring and storage pool support | Yes |
| QTS advanced drive features such as bad block scan, Erase,Performance Test, Seagate Ironwolf IHM | Yes |
| RAID migrated & expanded | Yes |
| Qtier on Enclosure | Yes |
| Utility for other platform | QNAP JBOD Manager |
| Windows | Win8 or nerwer / Server2012 R2 or newer |
| Mac | MacOS 10.13 or newer |
| Linux | Ubuntu 18.04 |
| Device Info (Health/Bus type/PSU/Temperature/FAN) | Yes |
| Device Temperature Warning & automatic FAN control | Yes |
| Event Log (support Export) | Yes |
| Enclosure located via LED & beep | Yes |
| LCM + enclosure customizable naming | N/A |
| SATA wiring determination | N/A |
