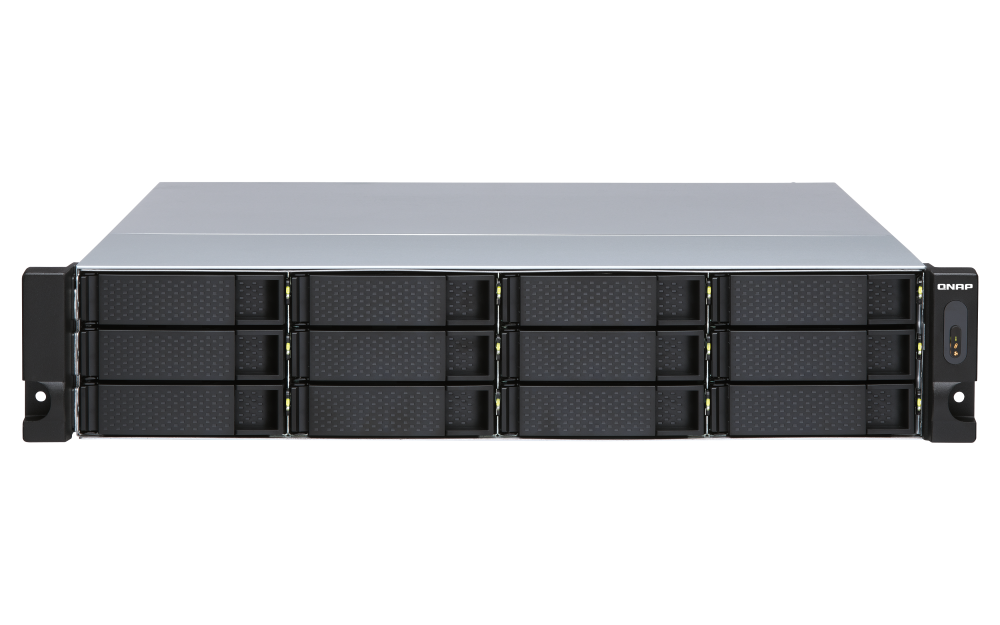

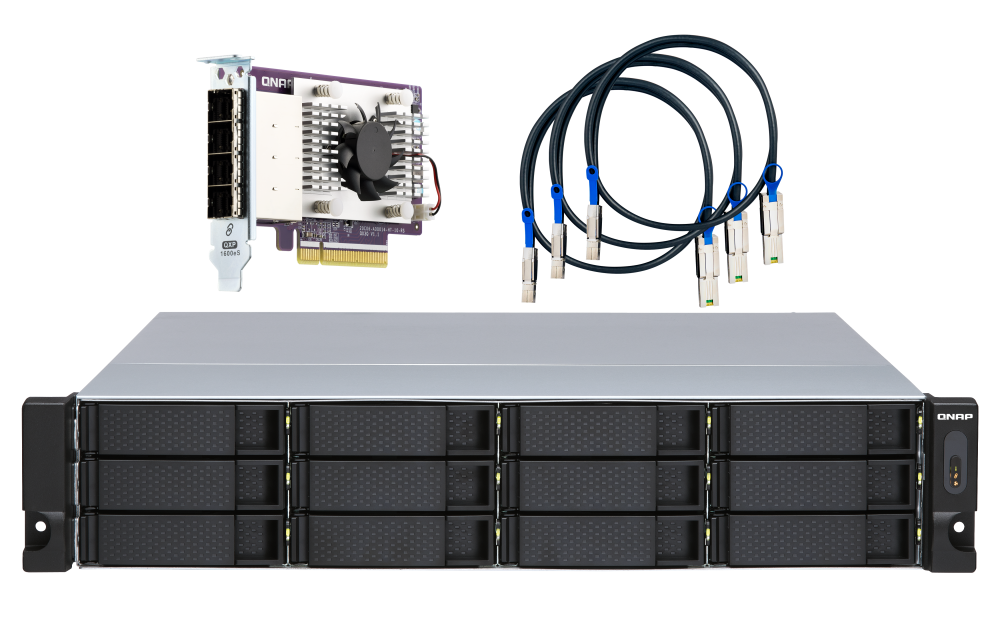

QNAP - TL-R1200S-RP-US - 12-bay 2U rackmount SATA JBOD expansion unit, redundant PSU, with a QXP-1600eS PCIe SATA host card and 3 SFF-8088 to SFF-8644 SAS/SATA 6Gb/s external cables
Part number:
TL-R1200S-RP-US
Price:
TL-R1200S-RP Rackmount JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows and Ubuntu computers and servers. Features twelve 3.5-inch SATA 6Gb/s drive bays, the TL-R1200S-RP comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.
Features:
- High-capacity TL SATA JBOD not only can expand NAS storage, but also Windows and Ubuntu computers and servers.
- SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
- The 250W redundant power supply can ensure maximum system uptime.
| Hardware Spec | |

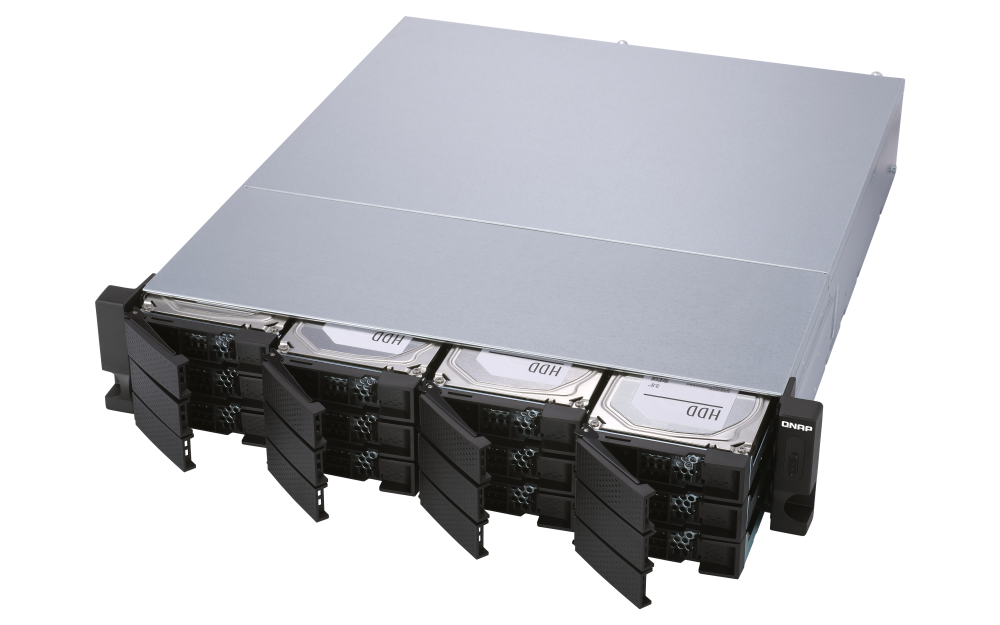

| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Audio Alert On/Off Switch | Yes |
| Form Factor | 2U Rackmount |

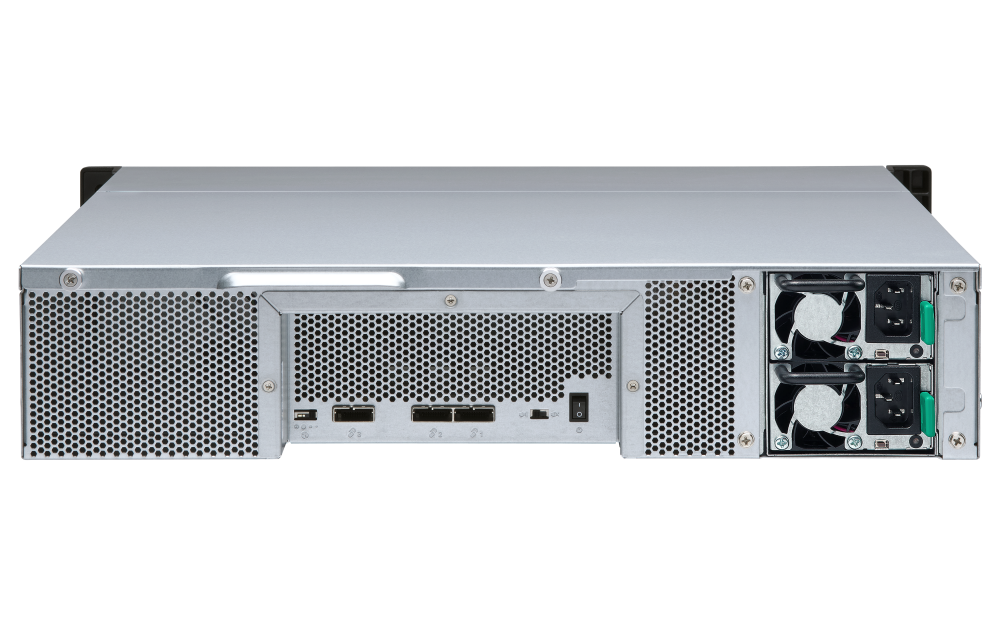

| Host Interface | 3 x SFF-8088 |
| LED Indicators | HDD 1-12, Status, Link, Fan error |
| Buttons | Power switch |
| Dimensions (HxWxD) | 88.6 × 482 × 562.5 mm Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 9.49 kg |
| Weight (Gross) | 12.77 kg |
| Max. number of HDDs/SSDs supported | 12 |
| Hard Drive Type | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W(x2) PSU, 100 - 240V |
| Power Consumption: Operating Mode, Typical | 73.7 W Tested fully populated with Seagate ST6000NM0024 hard drives. |
| Fan Mode Switch | (Auto, high, medium, low) |
| Fan | 2 x 70mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Software Spec | |
| Supported O.S. | QNAP QTS / QuTS hero, Windows, Linux |
| QTS / QuTS hero |
|
| Utility for other platform |
|
