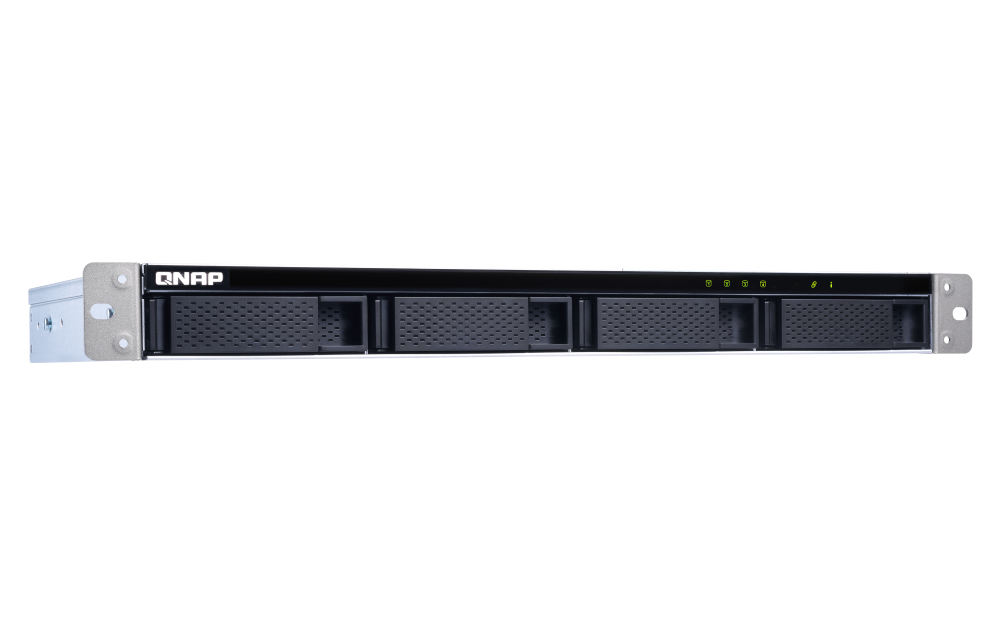

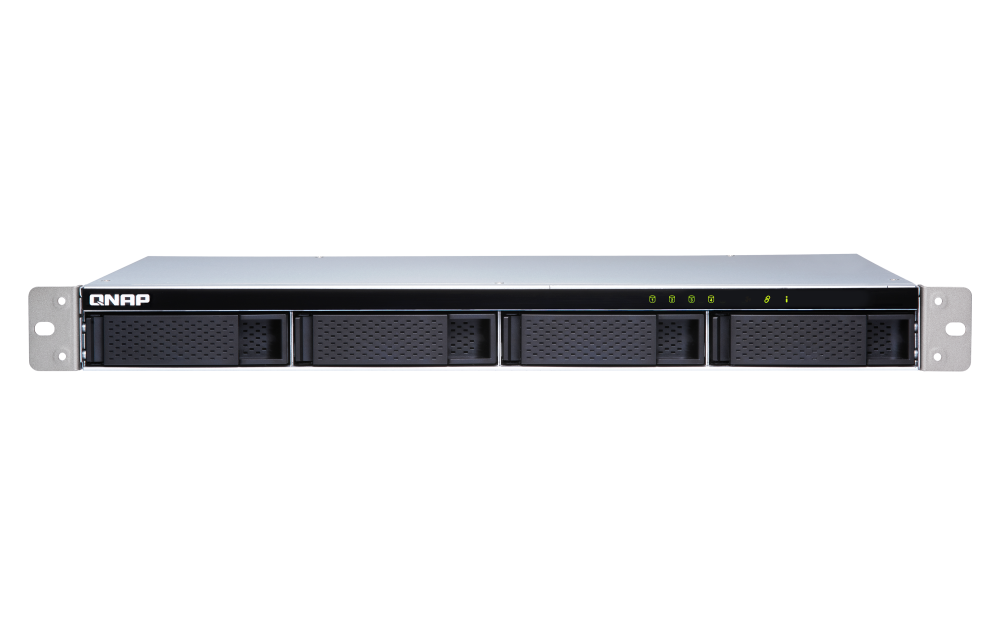

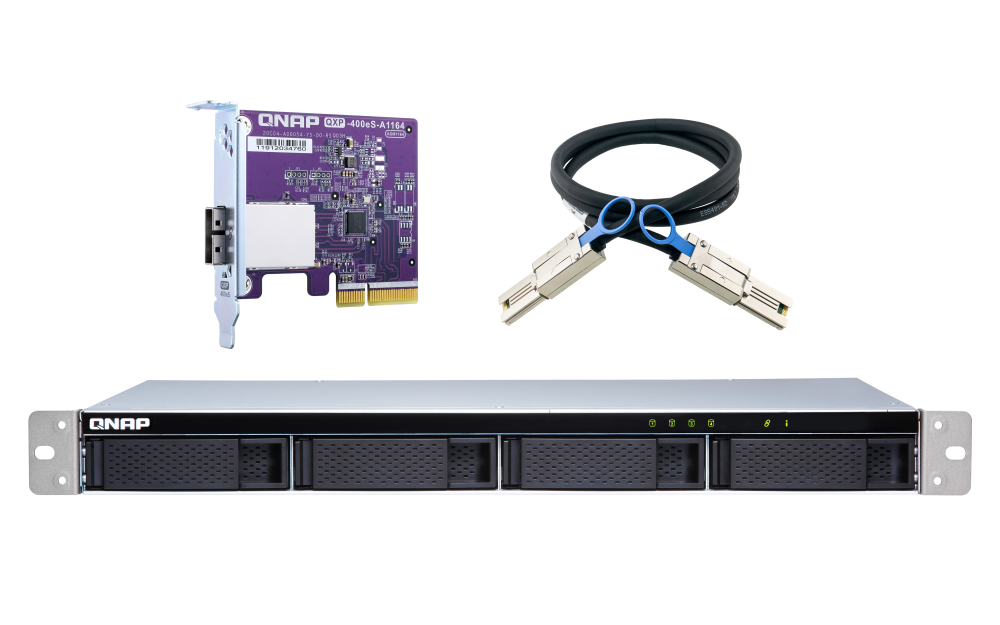

QNAP - TL-R400S-US - 4-bay 1U rackmount SATA JBOD expansion unit with a QXP-400eS-A1164 PCIe SATA host card and 1 SFF-8088 to SFF-8088 SAS/SATA 6Gb/s external cables
Part number:
TL-R400S-US
Price:

TL-R400S Rackmount JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows® and Ubuntu® computers and servers. The TL-R400S features four 3.5-inch SATA 6Gb/s drive bays, the shallow rack design is perfect for installing the TL-R400S in a compact rack, or in areas with a lot of cabling. TL-R400S comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.



Features:

  • High-capacity TL SATA JBOD not only can expand NAS storage, but also Windows® and Ubuntu® computers and servers.
  • SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.
  • The short depth rackmount NAS is perfectly suited for installation in a compact rack, or places with a lot of cabling.

Hardware Spec



Drive Bay4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Audio Alert On/Off SwitchYes
Form Factor1U Short Depth Rackmount
Host Interface1 x SFF-8088
LED IndicatorsHDD 1-4, Status, Link, Fan error
ButtonsPower switch
Dimensions (HxWxD)

43.9 × 438.9 × 291.1 mm

Excludes ear hook and the protruding part of the Power Supply Unit.

Weight (Net)3.98 kg
Weight (Gross)5.38 kg
Max. number of HDDs/SSDs supported4
Hard Drive Type3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Operating Temperature0 - 40 °C (32°F - 104°F)
Storage Temperature-20 - 70°C (-4°F - 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit100W PSU, 100 - 240V
Power Consumption: Operating Mode, Typical

25.07 W

Tested fully populated with Seagate ST6000NM0024 hard drives.

Fan Mode Switch(Auto, high, medium, low)
Fan2 x 40mm, 12VDC
System WarningBuzzer
Kensington Security SlotYes


Software Spec



Supported O.S.QNAP QTS / QuTS hero, Windows, Linux
QTS / QuTS hero
  1. QTS 4.4.2 / QuTS hero h4.5.0 (or newer)
  2. QTS QTS drive monitoring and storage pool support
  3. QTS advanced drive features such as bad block scan, Erase,Performance Test, Seagate Ironwolf IHM
  4. RAID migrated & expanded
  5. Qtier on Enclosure



Utility for other platform
  1. QNAP JBOD Manager
  2. Windows: Win8 or nerwer / Server2012 R2 or newer
  3. Linux:Ubuntu
  4. Device Info
    (Health/Bus type/PSU/Temperature/FAN)
  5. Device Temperature Warning & automatic FAN control
  6. Event Log (support Export)
  7. Enclosure located via LED & beep
  8. LCM + enclosure customizable naming
  9. SATA wiring determination
