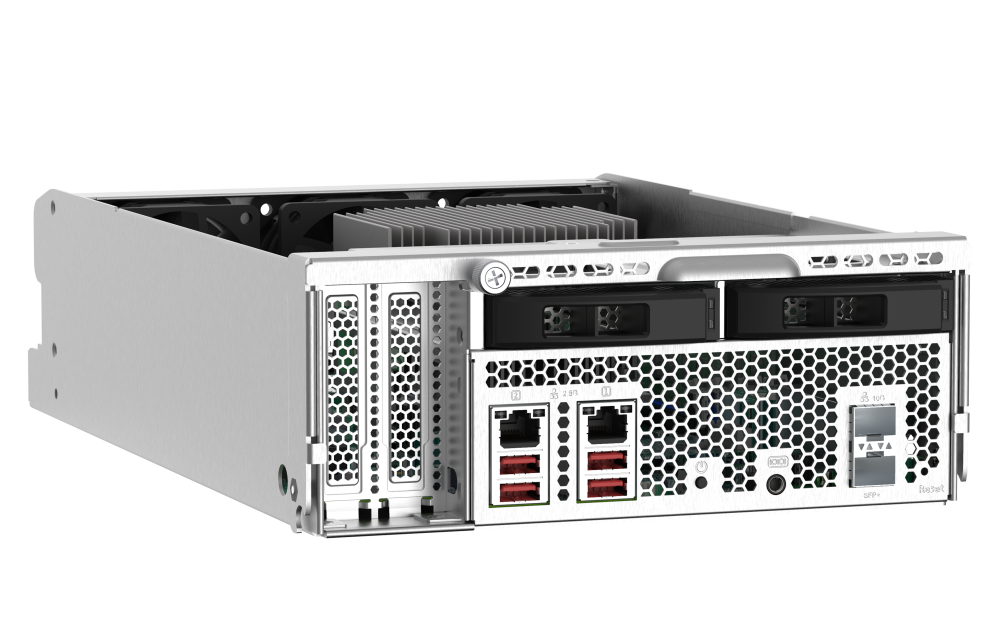

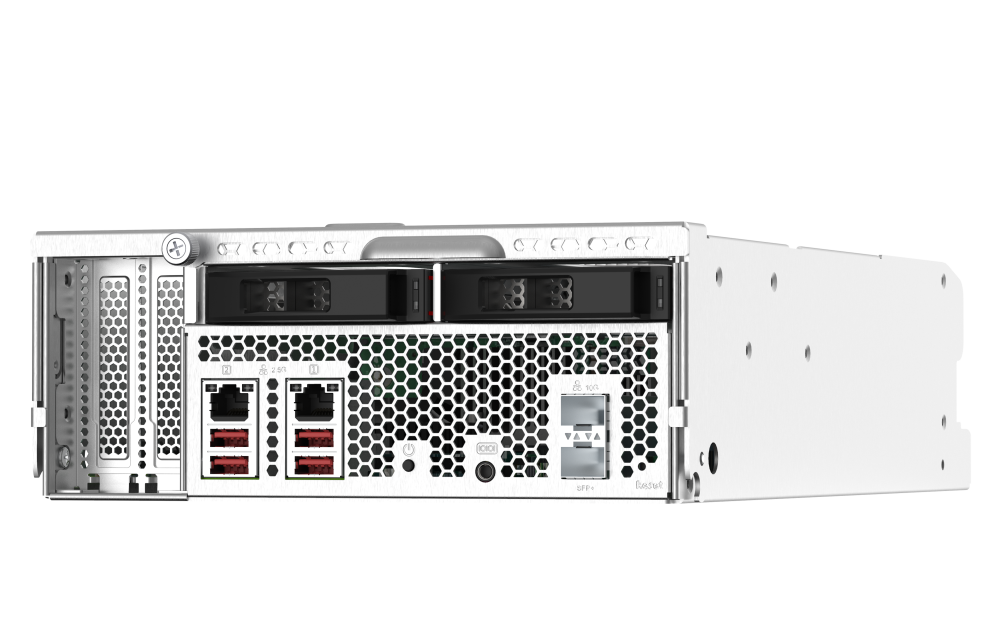

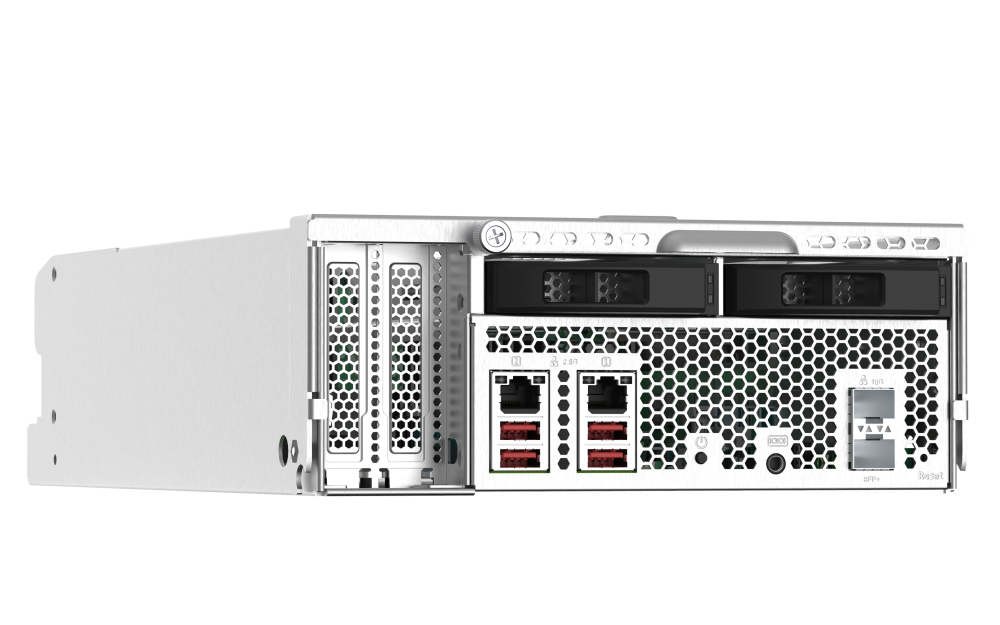

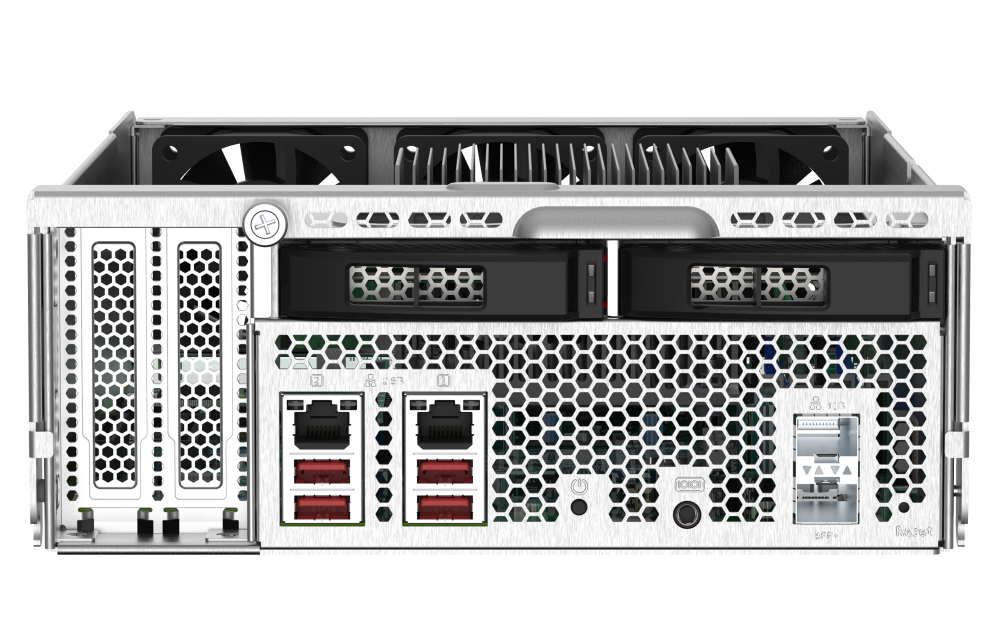

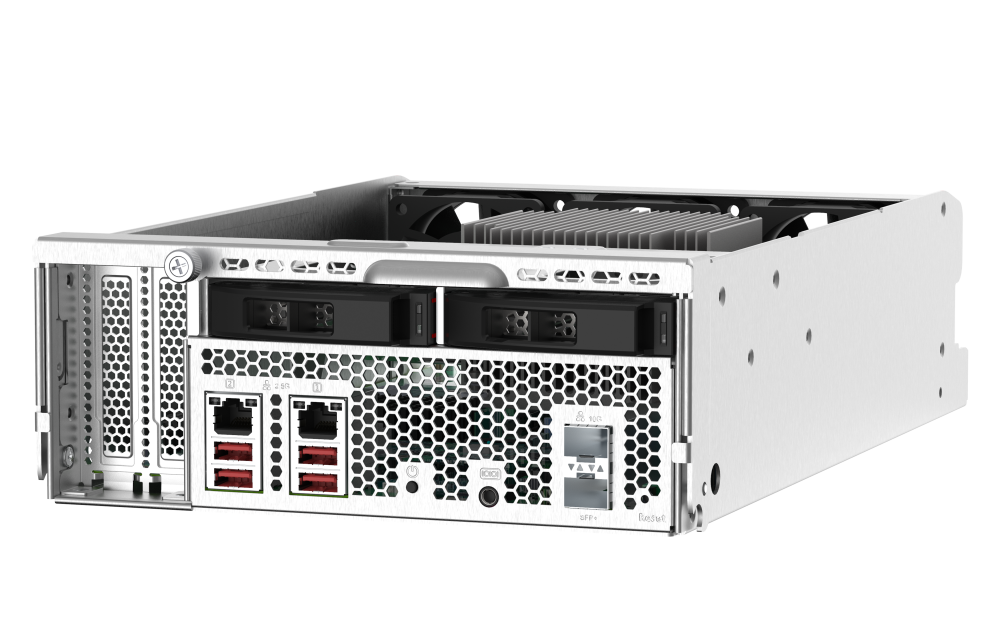

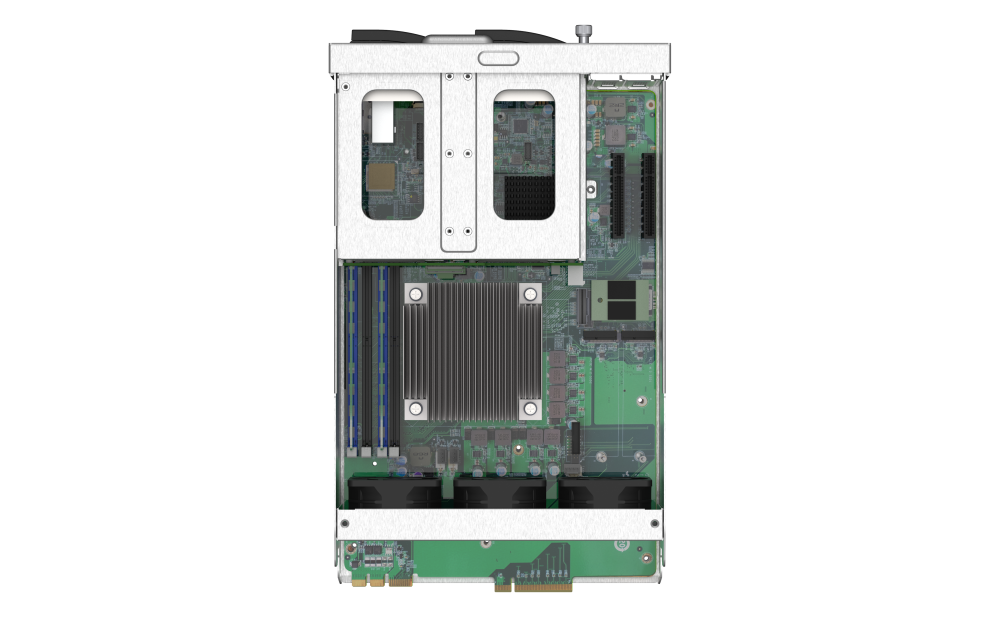

Designed as a NAS node for the GM-1000 storage system, the TNS-h1083X features a powerful Intel® Xeon® E processor, and provides multiple 10GbE / 2.5GbE ports and expandable I/O. Coupled with the built-in M.2 and U.2 SSD slots that allow for cache acceleration, the TNS-h1083X is ideal for business backup and virtualization applications. The TNS-h1083X runs the ZFS-based QuTS hero operating system, supporting block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and more business-oriented features to ensure reliable service-level agreement
Features:
A NAS node for the GM-1000 system. Enables easier hardware upgrade and maintenance.
Dual 10GbE and dual 2.5GbE ports boost virtualization, cloud storage gateway, and data center applications.
M.2 and U.2 SSD slots enable cache acceleration to maximize network bandwidth potential.
Two PCIe slots support 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V®, Windows Server® 2019, and hosts virtual machines and containers.
QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business.
Hardware Spec
| CPU | Intel® Xeon® E-2234 4-core processor, up to 4.8 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 8 GB UDIMM DDR4 (2 x 4 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 2 x 2.5-inch The system is shipped without HDD/SSD. |
| Drive Compatibility | 2.5-inch bays: 2.5-inch SATA solid state drives 2.5-inch U.2 Gen3 x4 solid state drives |
| Hot-swappable | Yes |
| M.2 Slot | 2 x M.2 2280 NVMe Gen3 x2 Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility. |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC (Mellanox ConnectX®-4 Lx EN) |
| Jumbo Frame | Yes |
| PCIe Slot | 2 Slot 1: PCIe Gen3 x4 (PCH) Slot 2: PCIe Gen3 x8 (CPU) |
| USB 3.2 Gen 2 (10Gbps) Port | 4 x Type-A |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 86.86 × 219.6 × 369.4 mm |

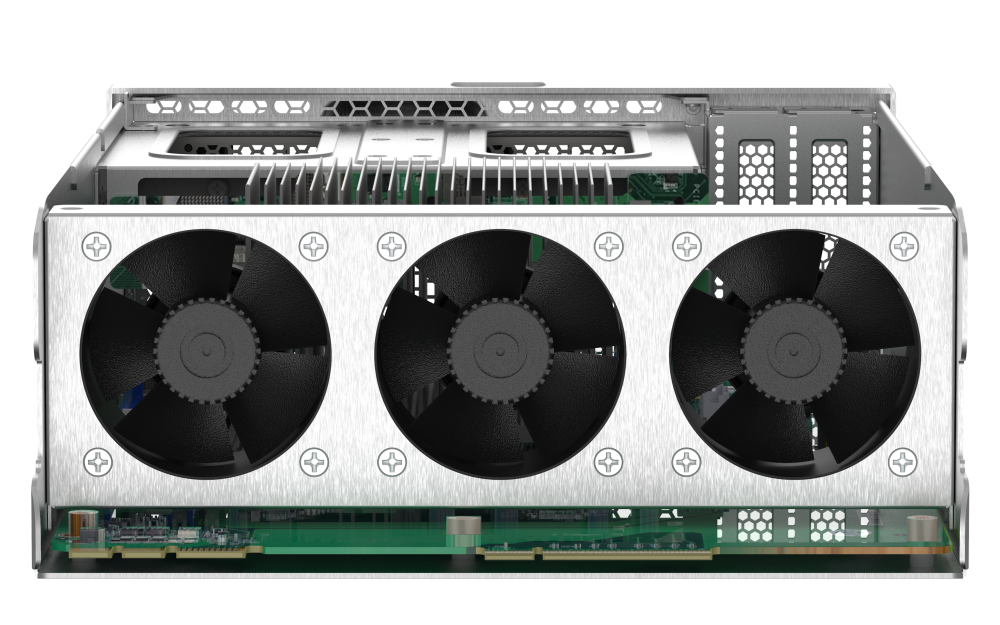

| Fan | 3 x 60mm, 12VDC |
