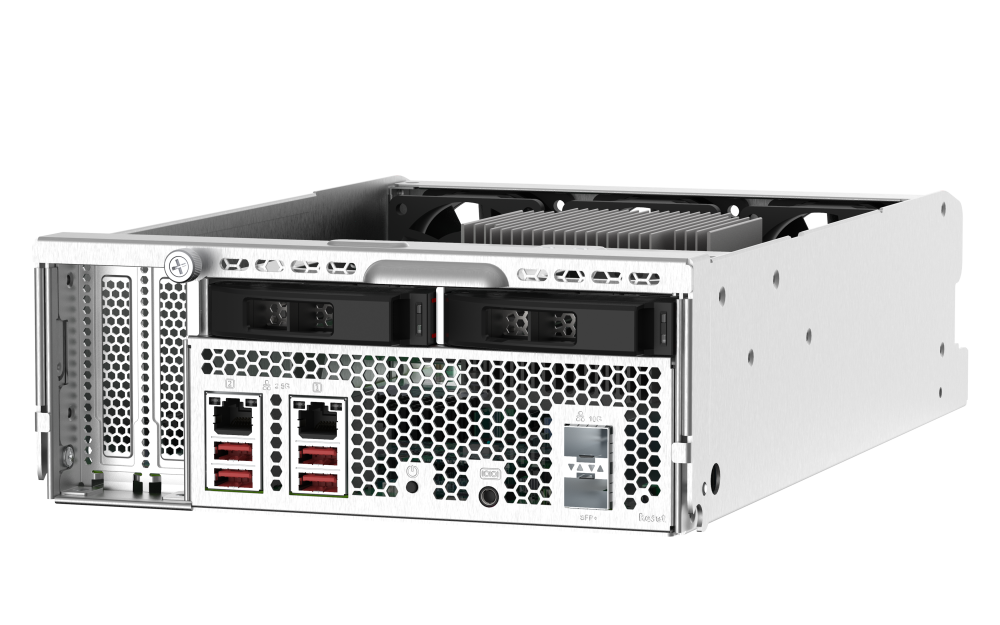

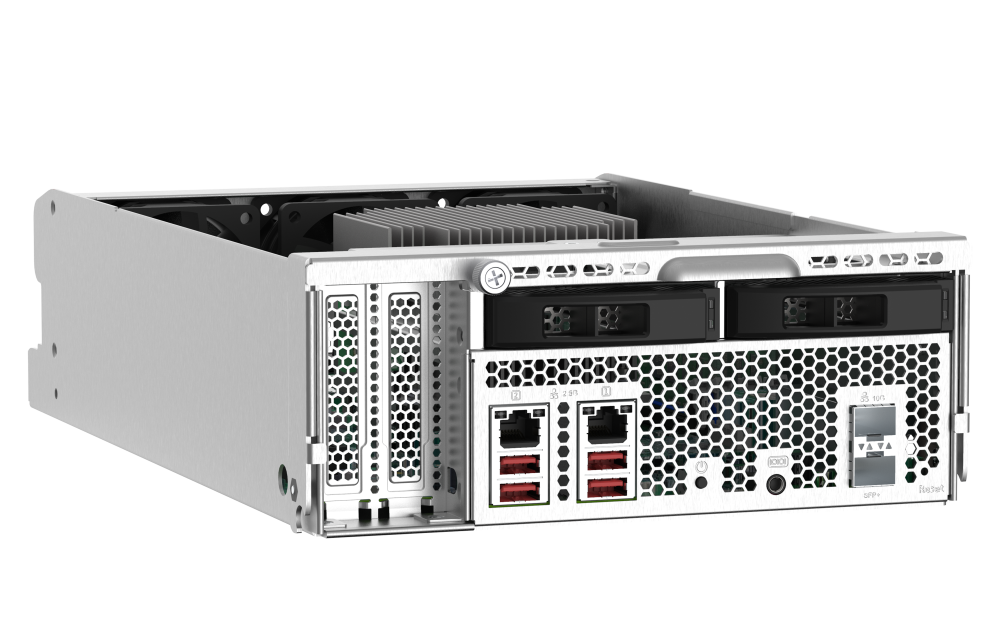

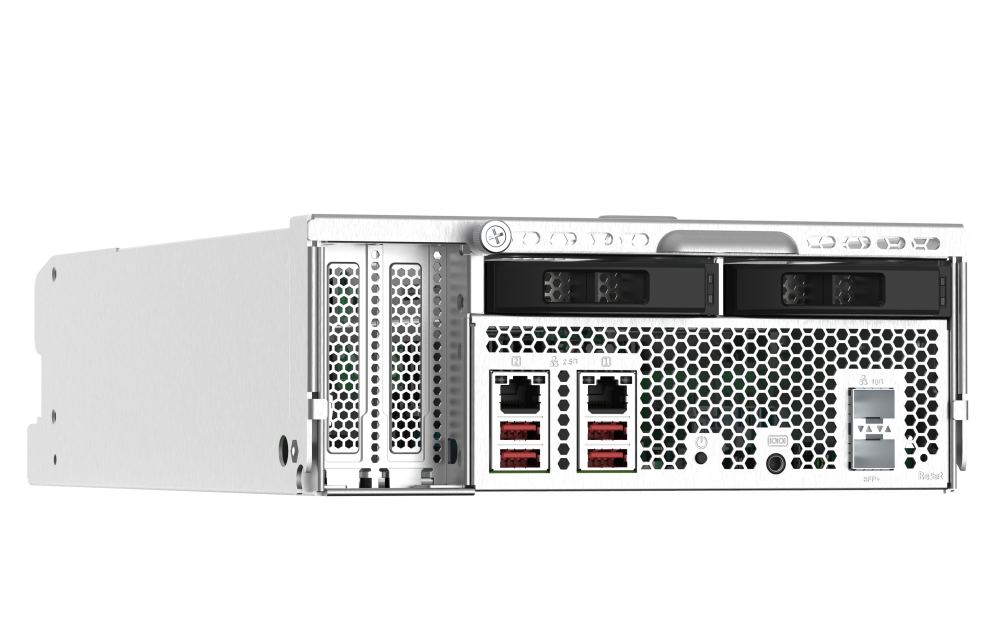

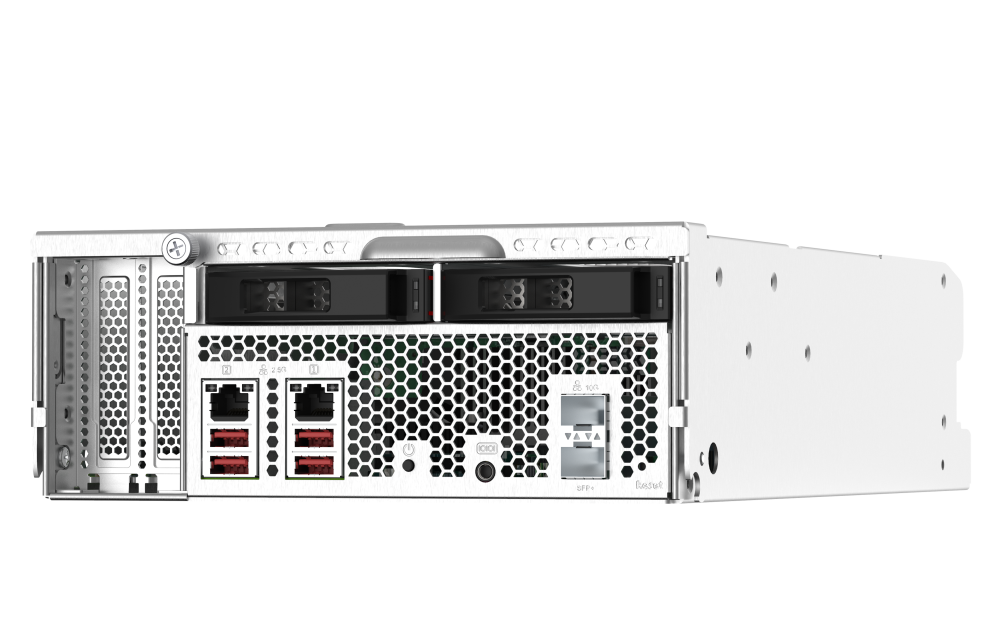

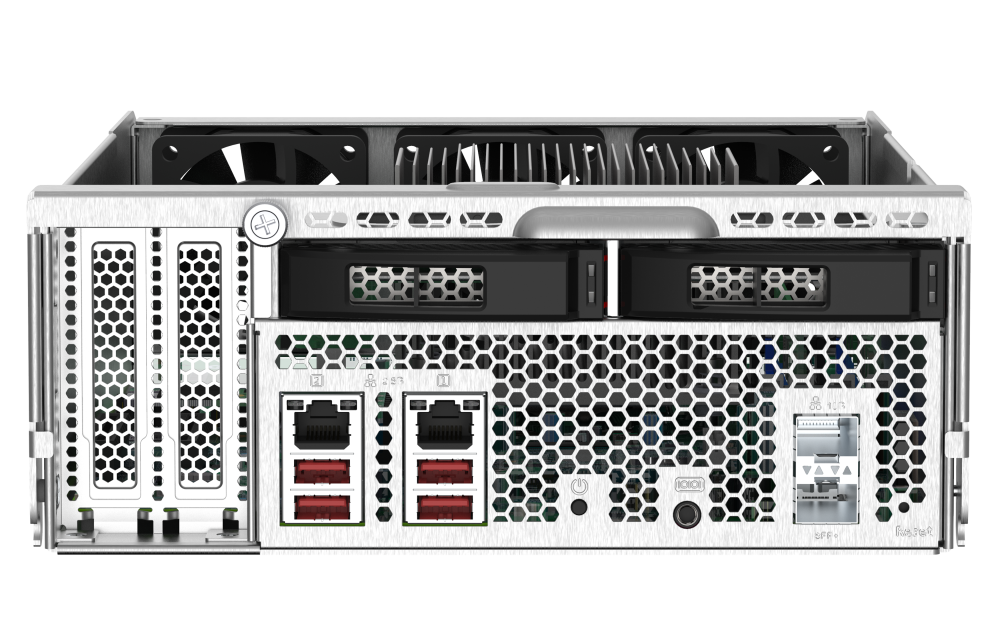

Designed as a NAS node for the GM-1000 storage system, the TNS-h1083X features a powerful Intel® Xeon® E processor, and provides multiple 10GbE / 2.5GbE ports and expandable I/O. Coupled with the built-in M.2 and U.2 SSD slots that allow for cache acceleration, the TNS-h1083X is ideal for business backup and virtualization applications. The TNS-h1083X runs the ZFS-based QuTS hero operating system, supporting block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and more business-oriented features to ensure reliable service-level agreement performance.
Features:
- A NAS node for the GM-1000 system. Enables easier hardware upgrade and maintenance.
- Dual 10GbE and dual 2.5GbE ports boost virtualization, cloud storage gateway, and data center applications.
- M.2 and U.2 SSD slots enable cache acceleration to maximize network bandwidth potential.
- Two PCIe slots support 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
- Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V®, Windows Server® 2019, and hosts virtual machines and containers.
- QuTS hero combines ZFS advantages with the QTS App Center ecosystem to empower your business.
Hardware Spec
| CPU | Intel® Xeon® E-2236 6-core/12-thread processor, up to 4.8 GHz |
|---|---|
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 16 GB UDIMM DDR4 (2 x 4 GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 2 x 2.5-inch The system is shipped without HDD/SSD. |
| Drive Compatibility | 2.5-inch bays: 2.5-inch SATA solid state drives 2.5-inch U.2 Gen3 x4 solid state drives |
| Hot-swappable | Yes |
| M.2 Slot | 2 x M.2 2280 NVMe Gen3 x2 Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to https://www.qnap.com/compatibility/ for compatibility. |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC (Mellanox ConnectX®-4 Lx EN) |
| Jumbo Frame | Yes |
| PCIe Slot | 2 Slot 1: PCIe Gen3 x4 (PCH) Slot 2: PCIe Gen3 x8 (CPU) |
| USB 3.2 Gen 2 (10Gbps) Port | 4 x Type-A |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 86.86 × 219.6 × 369.4 mm |

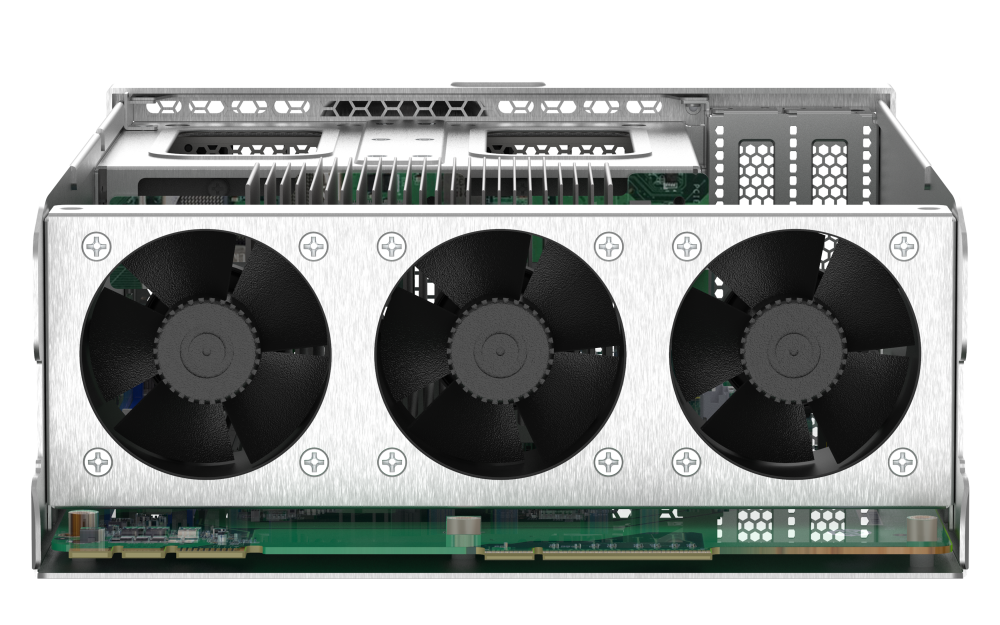

| Fan | 3 x 60mm, 12VDC |
