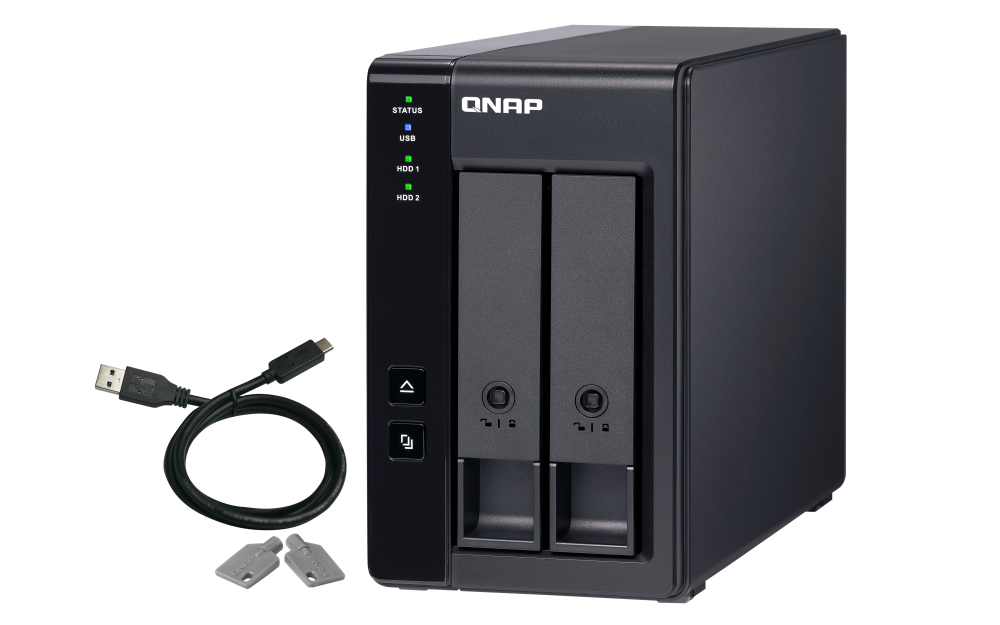

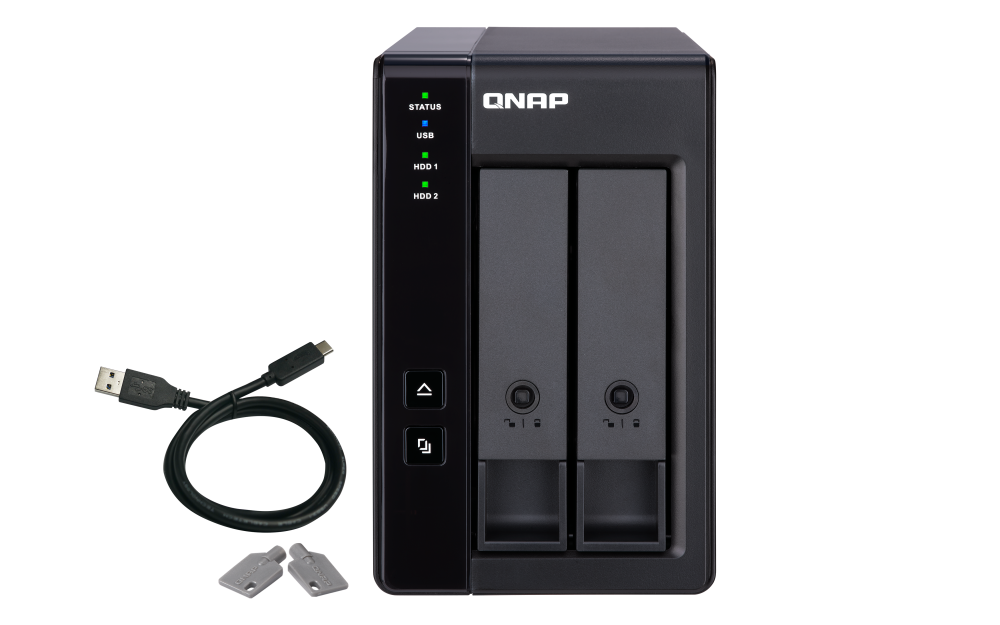

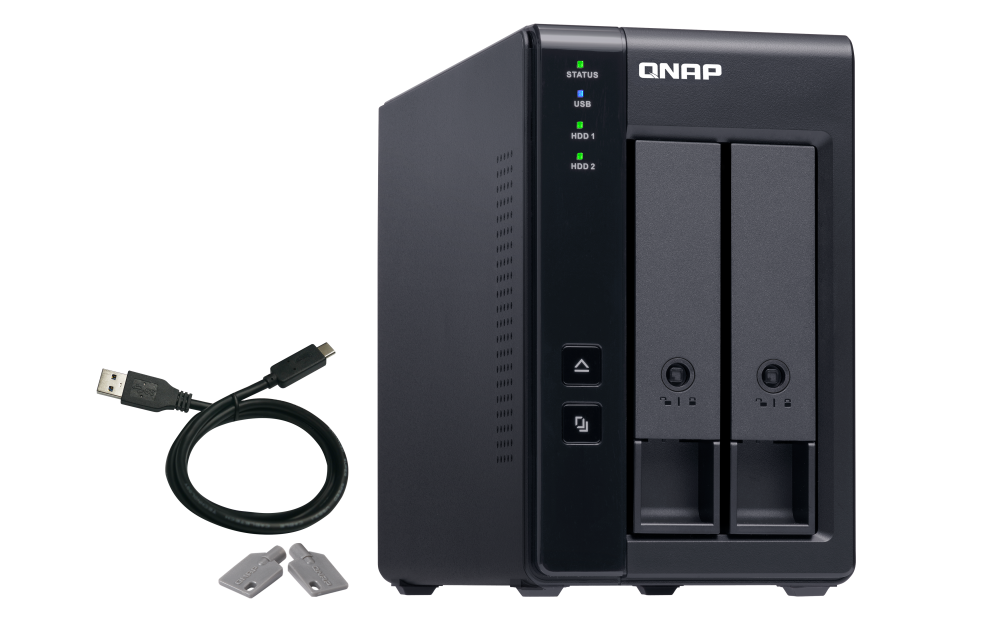

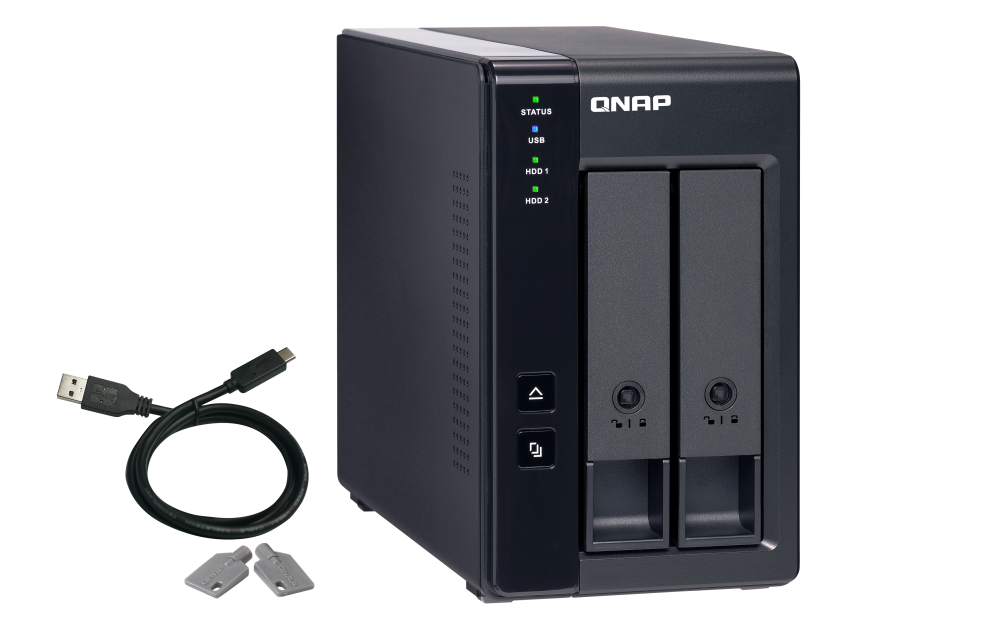

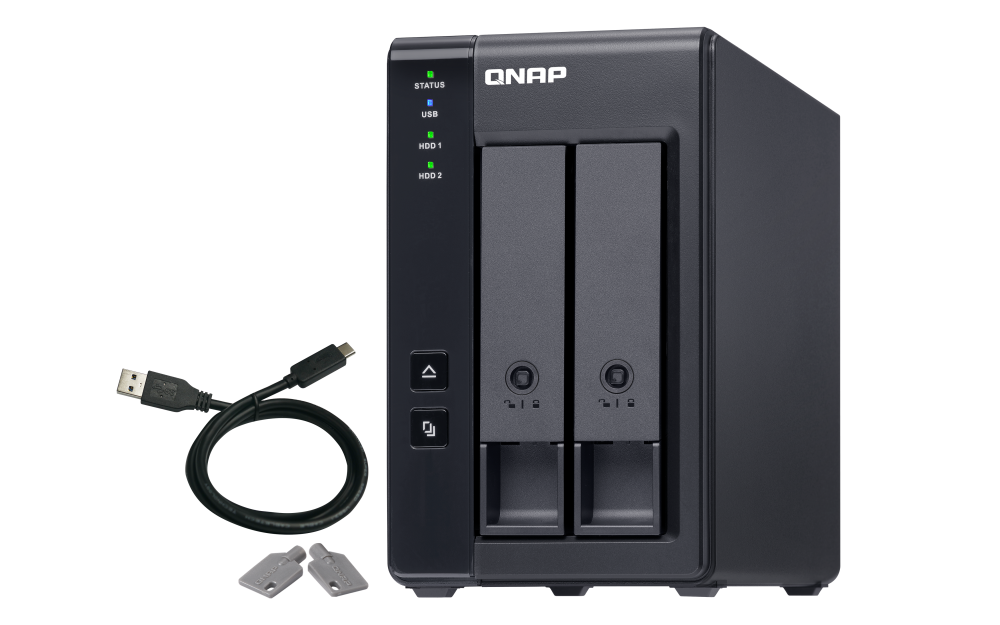

QNAP - TR-002-US - 2-bay 3.5" SATA HDD USB 3.1 Gen2 10Gbps type-C hardware RAID external enclosure. USB-C to USB-A cable included. Expansion unit for QNAP NAS, Windows, Mac, Linux computers

Part number:
TR-002-US
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

The TR-002 USB 3.2 Gen 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.2 Gen 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.



Features:

  • USB 3.2 Gen 2 Type-C port* for faster data transfer.
  • Supports up to two SATA drives.
  • Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.
  • Lockable hard drive trays to prevent accidental drive removal.
  • Eject button for disconnecting the TR-002 from a NAS or computer*.
Specifications
Hardware Spec
CPUMicro processor with hardware RAID
Drive Bay

2 x 3.5-inch SATA 6Gb/s, 3Gb/s

The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/

Drive Compatibility

3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives

You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.

TR-002 does not support the QDA-A2AR/ QDA-A2MAR.

Hot-swappableYes
USB 3.2 Gen 2 (10Gbps) Port1 x Type-C USB 3.2 Gen 2 10Gbps
Form FactorTower
Dimensions (HxWxD)168.5 × 102 × 219 mm
Weight (Net)1.37 kg
Max. number of HDDs/SSDs supported2
Hard Drive Type2 x 2.5-inch or 3.5-inch SATA 6Gb/s
Operating Temperature0 - 40 °C (32°F - 104°F)
Storage Temperature-20 - 70°C (-4°F - 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit36W adapter (12VDC), 100-240VAC
Power Consumption: HDD Sleep Mode2.98 W
Power Consumption: Operating Mode, Typical

10.15 W

Tested with drives fully populated.

Fan1 x 70mm, 12VDC
System WarningBuzzer
Kensington Security SlotYes
Software Spec
System modes

Individual, JBOD, hardware RAID 0/1/5/10, Software control (Software control requires a QNAP NAS or Windows/macOS utility)

Note: QNAP recommends using only one disk type (HDD or SSD) in a RAID group.

Features
  1. RAID rebuild in RAID 1/5/10.
  2. System, fan, and drive failure monitoring with LED and audio alerts.
  3. System sleep during USB cable disconnection and host device hibernation* or shut down.
    *Some hosts may not be supported.
  4. The unused disk drives automatically become the hot spare ones for the RAID 1 and RAID 5 types.
Minimum system requirementsQNAP NAS or PC with a USB Type-A or Type-C port
Minimum operating system requirements
  1. QNAP NAS: QTS 4.3.6 (or later)
  2. Windows: Windows 8.1 (or later), Windows Server 2012 R2 (or later)
  3. Mac: macOS X 10.13 (or later)
System fan5-speed automatic fan control
Software utilityWindows/macOS: QNAP External RAID Manager
Supported File SystemsNAS storage (EXT4), External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT*)

* Purchase of an exFAT driver license from the License Center is required.
QTS Storage Management Features
  1. General & Extenal Storage Mode
    • Overview device, disks, and RAID info and status
    • Support for disk’s S.M.A.R.T. monitoring
    • Determine location of drives using LEDs and system speakers
    • External RAID software configuration
    • RAID rebuild - Hot spare disk configuration
    • RAID recovery
    • Firmware update
    • Format partition
    • Erase partition and device
  2. NAS Storage Mode
    • The storage pools and volumes in the expansion enclosures are configured via the QTS operating system.
    • Volume and LUN snapshots - Snapshot Manager
    • Snapshot Cloning - Snapshot Replica - Snapshot Vault
    • Support for Windows Previous Versions (CIFS/SMB)
Software utility Features
  1. QNAP External RAID Manager
    • Overview device, disks, and RAID info and status
    • Support for disk’s S.M.A.R.T. monitoring
    • Determine location of drives using LEDs and system speakers
    • Desktop notifications for device alerts
    • External RAID software configuration
    • RAID rebuild - RAID rebuild speed customization
    • RAID recovery - Firmware update
    • Notifications when new firmware and application versions are available
    • System event logs for troubleshooting
    • Export event logs to .csv file

Note: Actual performance may vary depending on operating environment and other factors, such as RAID mode, RAID configuration, disk model and capacity.
