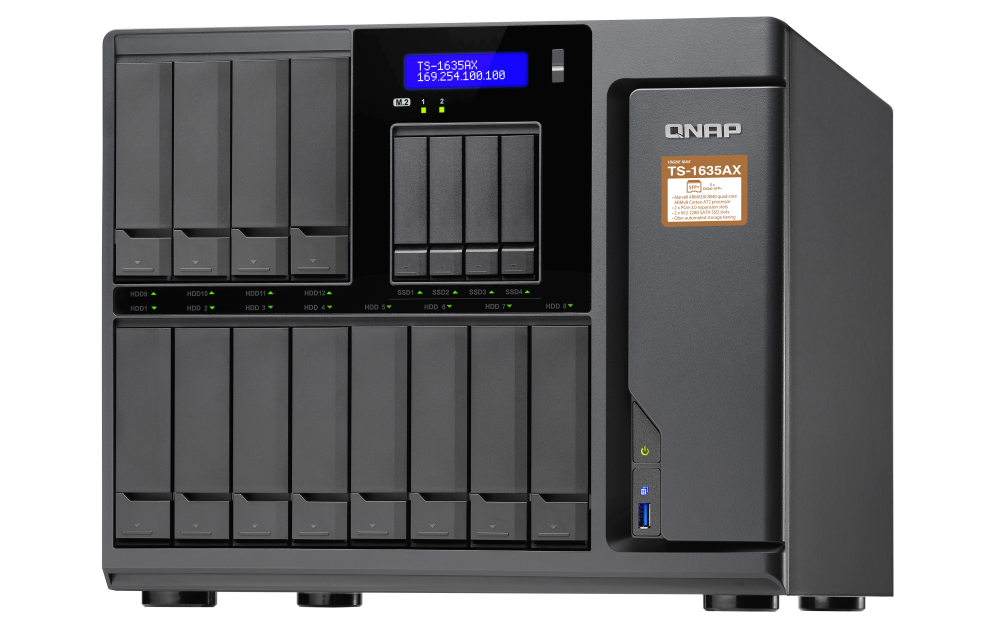

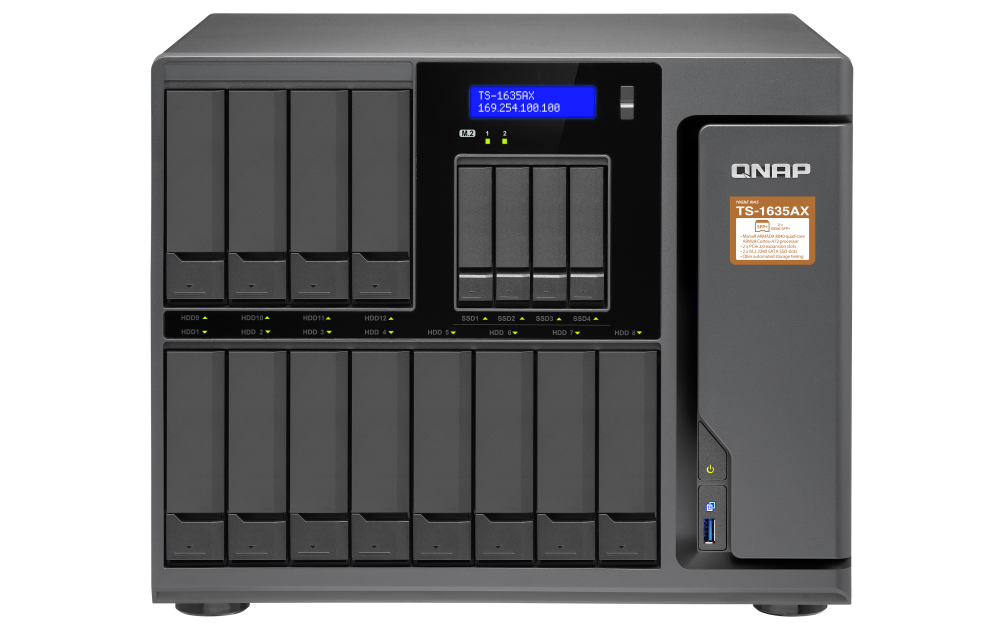

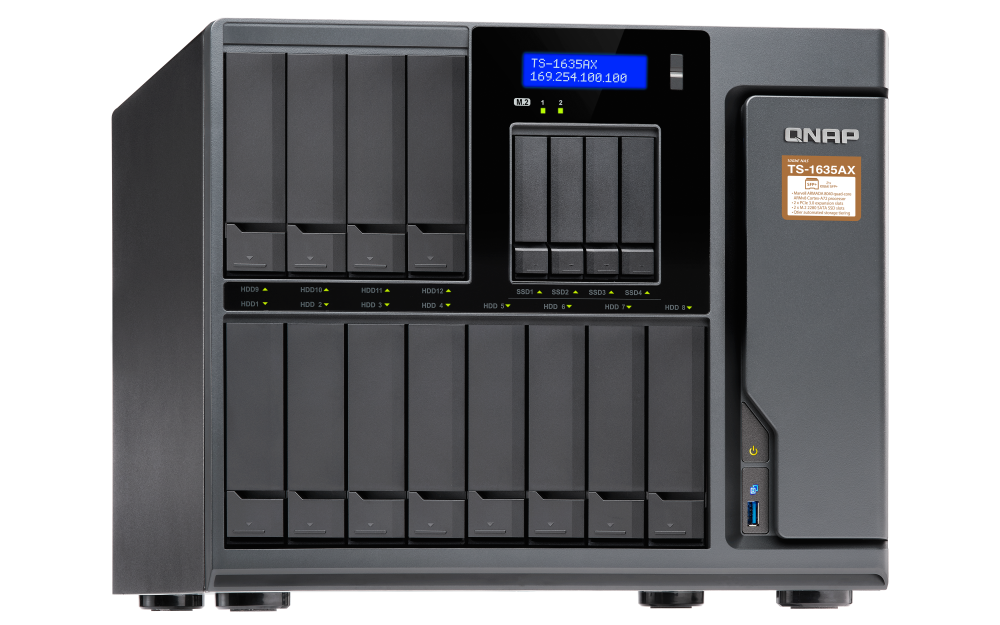

QNAP - TS-1635AX-8G-US - QNAP TS-1635AX (8GB RAM version) 12+4 bay high-capacity 10G NAS with auto data tiering. Marvell ARMADA 8040 quad-core 1.6GHz, 8GB DDR4 RAM (max 16GB)
Part number:
TS-1635AX-8G-US
Price:
The TS-1635AX is powered by a Marvell ARMADA 8040 ARMv8 Cortex-A72 64-bit quad-core 1.6 GHz processor that provides tremendous computing power and is capable of running a range of applications to help businesses grow as their data increases. The TS-1635AX features twelve 3.5-inch drive bays, four 2.5-inch drive bays and two M.2 SATA slots for building a high-capacity and high-performance storage solution with optimal cost efficiency. The TS-1635AX is also equipped with two 10GbE SFP+ ports and two gigabit ports, providing high-speed connectivity and versatile networking possibilities. The TS-1635AX also allows hardware expansion with two PCI Express (PCIe) 3.0 slots, enabling more functionality by adding a QM2 M.2 SSD/10GbE card, QXP-W6-AX200/ QWA-AC2600 wireless network card and/or USB 3.2 Gen 2 (10Gbps) card. The TS-1635AX offers high-capacity storage potential, high processing power, and high versatility for expansion, which all contribute to a next-gen storage system at a lowered total cost of ownership (TCO).
Features:
2 x 10GbE SFP+ ports
The two built-in 10GbE SFP+ ports empower mission-critical applications such as databases and large data transfer/storage.
SSD cache acceleration
Install SSDs with four 2.5-inch drive bays and two M.2 SATA (2280 form factor) slots for enabling Qtier to boost performances.
2 x PCIe Gen 3 slots
The two PCIe 3.0 slots (x2 and x1) can be used to install additional QM2 cards, network cards, and USB 3.2 Gen 2 (10Gbps) cards to expand NAS functionality.
Snapshot protection against Ransomware
Snapshots add an extra layer of protection to your disaster recovery plans, giving you the flexibility to create and revert snapshots locally and/or remotely.
Virtualization applications
The TS-1635AX supports containers (LXC and Docker) and Linux command-line interface (CLI) virtual machines (VMs) for deploying diversified virtualization applications.
Use as virtual JBOD
The TS-1635AX can be used with QNAP's VJBOD technology to expand the capacity of other NAS. The capacity of the TS-1635AX can also be expanded by using QNAP expansion enclosures.
| Specifications | |
| Hardware Spec | |
| CPU | Marvell ARMADA 8040 ARMv8 Cortex-A72 4-core 1.6 GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | Yes |
| Encryption Engine | Yes |
| System Memory | 8 GB UDIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x U-DIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |

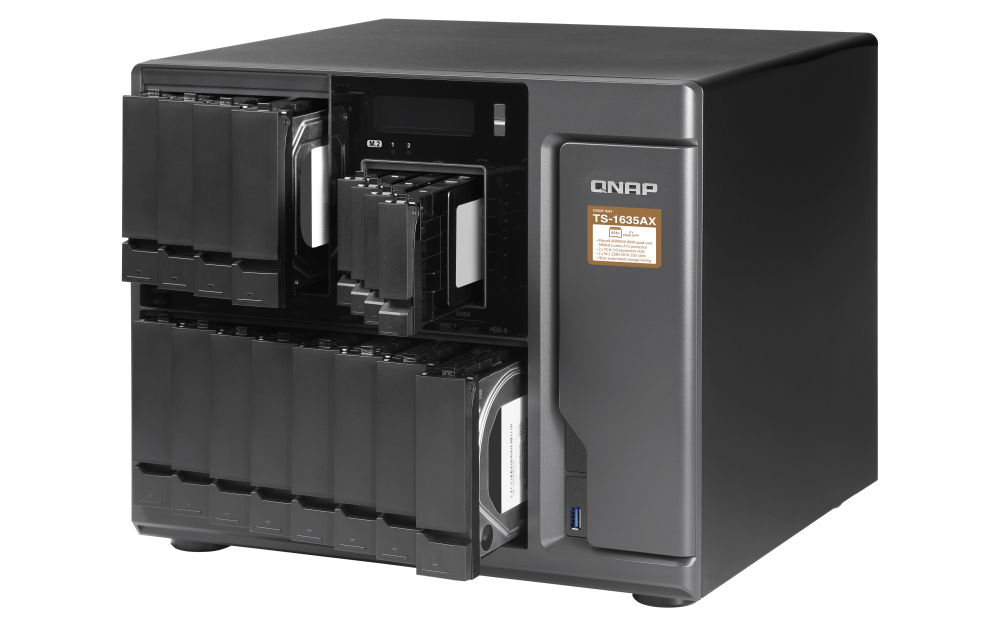

| Drive Bay | 12 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| Hot-swappable | The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots. |
| M.2 Slot | 2 x M.2 2280 SATA SSD slots Compatible with NVME PCIe Gen3 & Gen4 SSDs, refer to https://www.qnap.com/compatibility/ for compatibility |
| SSD Cache Acceleration Support | Yes |
| Gigabit Ethernet Port (RJ45) | 2 Expandable with an optional PCIe adapter |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| PCIe Slot | 2 Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches. |
| USB 3.2 Gen 1 port | 3 |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via a PCIe adapter |
| Audio Output | - (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-12, SSD 1-4, M.2 SSD 1-2 |
| LCD Display/ Button | Yes |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm |
| Weight (Net) | 12.06 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | ATX 250W, Input: 100-240 Vac~, 50-60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 39.74 W |
| Power Consumption: Operating Mode, Typical | 76.69 W Tested fully populated with 1TB hard drives and 120GB solid-state drives. |

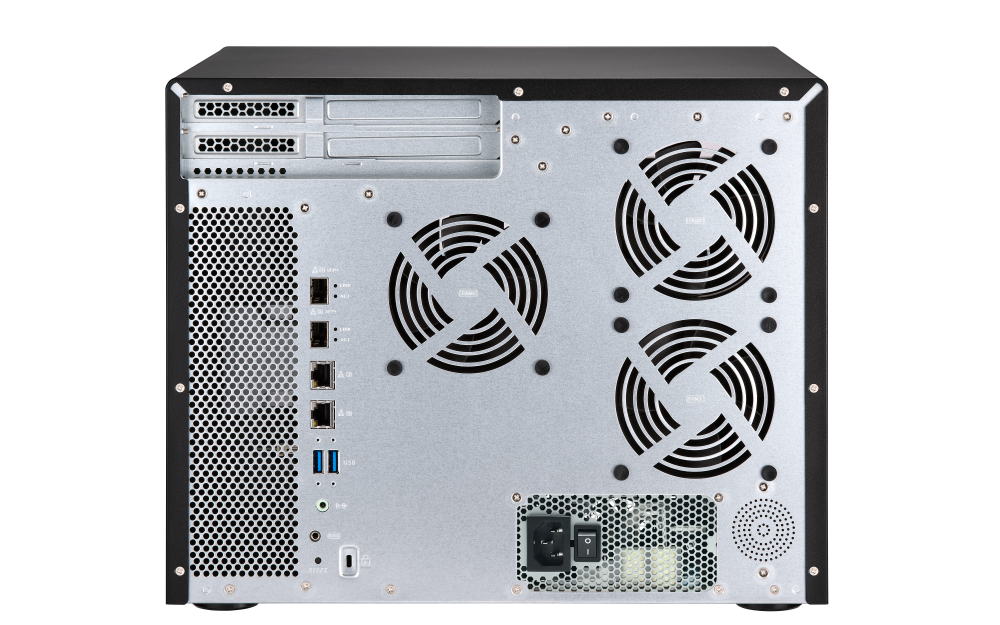

| Fan | System fan: 3 x 92mm, 12VDC CPU fan: 1 x 60mm, 12VDC |
| Other Interfaces | Kensington security slot |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 700 |
| Software Spec | |
| Operating System | QTS 5.1.0 |
| Supported Client Operating Systems | 1. Apple Mac OS 10.10 or later |
| 2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux | |
| 3. IBM AIX 7, Solaris 10 or later UNIX | |
| 4. Microsoft Windows 7, 8, 10 and 11 | |
| 5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022 | |
| Supported Browsers | 1. Apple Safari (latest version) |
| 2. Google Chrome (latest version) | |
| 3. Microsoft Edge (latest version) | |
| 4. Mozilla Firefox (latest version) | |
| Supported Languages | Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish |
| Storage Pool | Yes |
| SED Storage Pool | Yes |
| Maximum Pool size | 308 TB |
| Maximum number of storage pool | 128 |
| Volume Type | Thick, Thin, Static |
| Maximum volume size | 250 TB |
| Note: At least 4 GB RAM is required. | |
| Maximum number of volume | 128 |
| Maximum shared folder size | 250 TB |
| Maximum number of shared folder | 512 |
| JBOD Expansion | Yes |
| VJBOD / VJBOD Cloud | Yes |
| iSCSI Service | Yes |
| Fibre Channel Service | Yes |
| LUN Type | Thick, Thin |
| File-based iSCSI LUN | Yes |
| Block-based iSCSI LUN | Yes |
| Maximum LUN size | 250 TB |
| Note: At least 4 GB RAM is required. | |
| Maximum number of targets LUN | 128 |
| LUN feature | 1. LUN Mapping (LUN can be moved between iSCSI and FC) |
| 2. LUN Masking | |
| 3. WWPN Aliases Import/Export | |
| 4. FC Port Group | |
| Auto Tiering | Requires minimum 2GB memory. |
| RAID Type | 1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 |
| 2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 | |
| 3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 | |
| 4. 2-bay: JBOD, Single, RAID 0, 1 | |
| RAID Group | To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected. |
| RAID Level Migration | Yes |
| RAID Expansion (by adding Disk) | Yes |
| RAID Expansion (by replacing bigger Disks) | Yes |
| Storage Pool Expansion (by adding RAID Group) | Yes |
| RAID Hot Spare | Global, Local |
| RAID Sync/Rebuild/Scrubbing | Yes |
| Internal drive | EXT4 |
| External drive | EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model) |
| Note: To use exFat in certain models you must purchase an exFAT driver license from License Center. | |
| Disk, Enclosure Locate | Yes |
| Disk S.M.A.R.T. Scan | Yes |
| Disk S.M.A.R.T. Data Migration | Yes |
| Ironwolf Health Management | Yes |
| Secure Erase | Yes |
| SSD Trim | Yes |
| SSD Life Estimation | Yes |
| Disk Roaming | Yes |
| Disk Standby | Yes |
| Volume Snapshot | Yes |
| LUN Snapshot | Yes |
| Maximum Snapshot (Per System) | Check maximum number of snapshots of your NAS |
| Maximum Snapshot (Per Volume / LUN) | Check maximum number of snapshots of your NAS |
| Minimum Snapshot Interval | 5 minutes |
| Snapshot Retention Policy | Yes |
| Self-serve Snapshot Recovery | Yes |
| Application Consisted Snapshot | Yes |
| Snapshot Full Clone | Yes |
| Snapshot Replica / Vault | Yes |
| SSD read-only Cache | Yes |
| SSD read-write cache | Yes |
| SSD write-only cache | Yes |
| SSD Cache Maximum Size | Check your QNAP NAS cache capacity and RAM requirements |
| SSD Cache RAID | 0, 1, 5, 6, 10 |
| SSD profiling tool | Yes |
| External Device Management | Yes |
| Mount Smart Phone (MTP) | Yes |
| External RAID Device (QNAP so on) Management (External Device Mode) | Yes |
| External RAID Device (QNAP so on) Management (NAS Mode) | Yes |
| File Server | 1. File sharing across Windows, Mac, and Linux/UNIX |
| 2. Microsoft networking (CIFS/SMB) | |
| 3. Apple networking (AFP) | |
| 4. NFS version 3/4 services | |
| FTP Server | 1. QuFTP |
| 2. FTP, SFTP and TFTP protocols | |
| 3. FTP over SSL/TLS (explicit FTPS) | |
| 4. FXP support | |
| Maximum FTP connection | 1024 |
| File Station (Web) | Yes |
| Object Storage | Yes |
| Local user account | 4,096 |
| Local group account | 512 |
| Domain user/group account | 200,000 |
| Domain Security | Yes |
| Domain Controller | Yes |
| Shared folder permission | Yes |
| Advanced folder permission | Yes, (AFP, CIFS/SMB, FTP, and File Station) |
| Windows ACL | Yes, (CIFS/SMB) |
| User quota | Yes |
| Group quota | Yes |
| Folder quota | Yes, (Snapshot shared folder) |
| Home folder | Yes |
| Resource Monitor | Yes |
| SNMP | V2, V3 |
| Network recycle bin | 1. Recover files deleted using AFP, CIFS/SMB, and File Station |
| 2. Automatic cleanup and file type filter | |
| System Log & Notification Center | Log recording: 3,000 event per second |
| Smart Fan | Yes |
| Schedule on/off | Yes |
| Internet protocol | IPv4, IPv6 |
| Virtual Switch | Yes |
| Port trunking | Yes, (7 modes) |
| VLAN | Yes |
| DHCP Server | Yes |
| DDNS (Dynamic Domain Name Service) | Yes |
| Network access protection with auto-blocking | SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP |
| Security Counselor | Yes |
| Malware Remover | Yes |
| AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP | Yes |
| 2-step verification | Yes |
| Allow/Deny List | Yes |
| Access Protection | Yes |
| Service binding | Yes |
| Firewall | Yes |
| VMware vSphere Ready | Yes |
| Windows Server certifcated | Yes |
| Citrix Ready | Yes |
| vSphere Web Client Plug-in | Yes |
| VMware vSphere VAAI for iSCSI | Yes |
| VMware vSphere VAAI for NAS | Yes |
| Windows ODX | Yes |
| Windows/VMware Snapshot Agent | Yes |
| HTTP/HTTPS Connections | TLS 1.0/1.1/1.2/1.3 |
| Supports WebDAV Connection | Yes |
| Supports Virtual Hosts | 32 |
| Qsync | Note: At least 1 GB RAM is required. |
| [Qsync] Management Mode | User customization, Central |
| [Qsync] Qsync client supported platforms | Windows, macOS, Ubuntu, Android, and iOS |
| [Qsync] Maximum number of version control | 64 |
| HybridMount | Note: At least 1 GB RAM is required. |
| [HybridMount] File Cloud Gateway | Concurrent Connections = 20 Upload & 20 Download |
| [HybridMount] Network Drive Mount | Yes |
| [HybridMount] Free cloud gateway sessions | 2 |
| HBS (Hybrid Backup Sync) | Note: At least 1 GB RAM is required. |
| [HBS (Hybrid Backup Sync)] NAS to NAS backup | Yes |
| [HBS (Hybrid Backup Sync)] Cloud Backup | Yes |
| [HBS (Hybrid Backup Sync)] Cloud Sync | Yes |
| [HBS (Hybrid Backup Sync)] 2-way and Active Sync | Yes |
| [HBS (Hybrid Backup Sync)] Backup Deduplication | Yes |
| [HBS (Hybrid Backup Sync)] Apple Time Machine Backup | Yes |
| [HBS (Hybrid Backup Sync)] External drive backup | Yes |
| [HBS (Hybrid Backup Sync)] Maximum number of backup job | 400 |
| Hyper Data Protector | Yes |
| Boxafe | Note: At least 4 GB RAM is required. |
| [Boxafe] Office 365 Backup | Yes |
| [Boxafe] Google Workspace Backup | Yes |
| [Boxafe] Full-text search | Yes |
| Qsirch | Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory |
| [Qsirch] Previews | Photos, music, videos, PDFs, Gmail, and others |
| [Qsirch] Integrate Mac Finder | Yes |
| [Qsirch] Advanced picture search | Yes |
| [Qsirch] Search filters | Yes |
| QuMagie | Note: At least 1 GB RAM is required. |
| [QuMagie] Browse photos | Yes |
| [QuMagie] Virtual and smart albums | Yes |
| [QuMagie] AI-assisted photo management | People, things, places, and others |
| Antivirus (free) | Yes |
| McAfee (License) | Yes |
| QVPN Service | Note: At least 1 GB RAM is required. |
| [QVPN Service] Remote Access | PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary) |
| [QVPN Service] Supportedd utility and mobile app | Windows, macOS, iOS, and Android |
| [QVPN Service] Supported maximum clients | 100 |
| LDAP Server | Yes |
| RADIUS | Yes |
| SQL server | Yes |
| License Center | Yes |
| Multimedia Console | Yes |
| Photo Station | Yes |
| Music Station | Yes |
| Video Station | Yes |
| Download Station | Yes |
| Notes Station | Yes |
| Qfiling | Yes |
| Media Streaming add-on | Yes |
| QmailAgent | Yes |
| QuWAN | Yes |
| DA Driver Analyzer | Yes |
| Q'center | Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V). |
| Q'center Server | Yes |
| Q'center Agent | Yes |
| Connect to Q'center | Yes |
| Virtualization Station | Note: At least 4 GB RAM is required. |
| [Virtualization Station] Supports Virtual machine instances | Windows, Linux, Unix, and Android |
| [Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration | All function is Fine. |
| [Virtualization Station] Virtual switches | Can create a virtual switch |
| [Virtualization Station] GPU pass-through | Not support GPU |
| [Virtualization Station] Suggested number of virtual machine instances | 32 |
| The actual number of virtual machine instances may vary by the memory installed on NAS (e.g. 1 VM= 1 thread for 1 vCPU and 1GB memory). Please expend memory if needed. | |
| Container Station | Note: At least 1 GB RAM is required. |
| [Container Station] Supported type | LXC/LXD and Docker |
| Note: LXD has been supported after Container Station 2.4 | |
| [Container Station] Docker Hub Registry | Yes |
| [Container Station] Container importing and exporting | Yes |
| [Container Station] Console mode | Yes |
| Linux Station | Notification: At least 4 GB RAM is required. |
| [Linux Station] Supports Ubuntu versions | 18.04, and 20.04 |
| Linux Station Center | Yes |
| QVR Pro | Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector. |
| [QVR Pro] Recording Technique | Index database based |
| [QVR Pro] License Type | Perpetual |
| [QVR Pro] User-defined trigger events | Yes |
| [QVR Pro] Metadata | Yes |
| [QVR Pro] QVR Pro Client (Desktop) | Windows, macOS, and QNAP HybridDesk Station |
| [QVR Pro] QVR Pro Client (Mobile) | Android and iOS |
| [QVR Pro] Recording camera streams | H.264 |
| [QVR Pro] Free built-in camera channels | 8 |
| QVR Elite | Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector. |
| [QVR Elite] Recording Technique | Standard MP4 file based |
| [QVR Elite] License Type | Subscription-based |
| [QVR Elite] User-defined trigger events | Yes |
| [QVR Elite] QVR Pro Client (Desktop) | Windows, macOS, and QNAP HybridDesk Station |
| [QVR Elite] QVR Pro Client (Mobile) | Android and iOS |
| [QVR Elite] Recording camera streams | H.264 |
| [QVR Elite] Free built-in camera channels | 2 |
| QVR Pro Client | Yes |
| [QVR Pro Client] Dynamic View Layout | Yes |
| [QVR Pro Client] Windows | Yes |
| [QVR Pro Client] Mac | Yes |
| [QVR Pro Client] HybridDesktop | Yes |
| [QVR Pro Client] iOS | Yes |
| [QVR Pro Client] Android | Yes |
| QVR Center | Note: At least 4 GB RAM is required. |
| [QVR Center] Log management | Yes |
| [QVR Center] Central monitoring across multiple servers | Yes |
| QVR Guard | Note: At least 4 GB RAM is required. |
| [QVR Guard] Failover design | Yes |
| [QVR Guard] Viewing task details | Yes |
| [QVR Guard] Automatic switch between Standby and Takeover modes | Yes |
| QVR Human | Yes |
| QVR Face | The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/ |
| QVR DoorAccess | Yes |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
