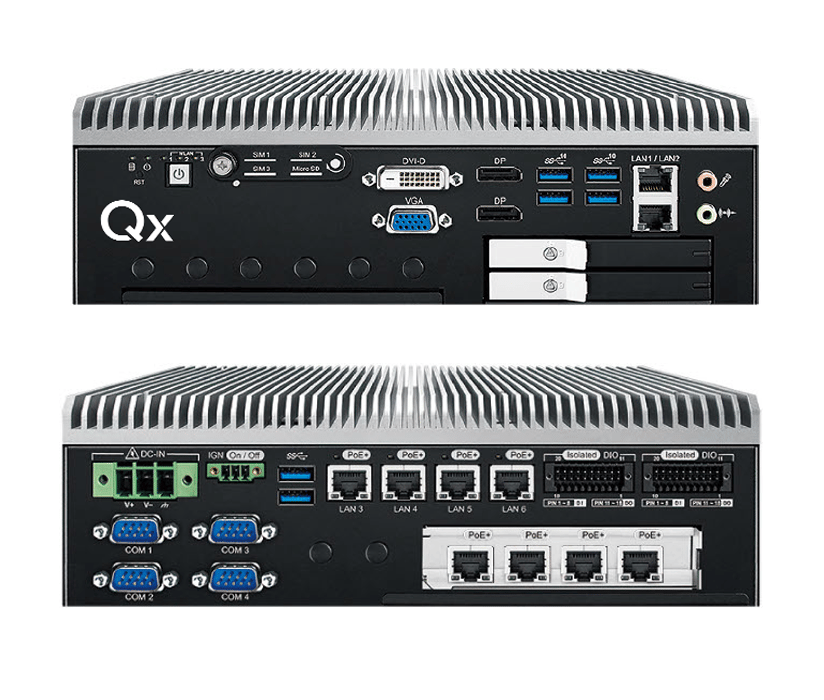

Qumulex - QXE710-08 - QxEnergy 710 - Ruggedized small form factor gateway for harsh environments and mobile applications, 08TB - 8 Ports PoE+. Up to 16 cameras or 32 total resources.
Part number:
QXE710-08
Price:

Designed for harsh environments and mobile deployments, the all new QxEnergy 700 Series allows you to deliver the capability of QxControl nearly anywhere. Providing the convenience of integrated PoE+ ports to power and connect your cameras and door controllers, the QxEnergy 710 also offers WiFi or LTE network connections with optional antennas (*LTE service not included). Selectable local storage provides event driven or continuous recording options for both QxPro and QxOne systems.



Features:

  • Up to 32 cameras and 64 total resources
  • Up to 16TB of local storage
  • Intel® Core 10th Gen i-5 Processor (6 Cores/12Threads/3.7GHZ)
  • 16GB Memory
  • 2-GbE Network Ports
  • 8-1GbE ports with PoE+, 30W per port with a total power budget of 240W
  • 9V-50V DC-in, Fanless, CE/FCC Class A, IP40
  • Operating Humidity 95% at 70°C
  • Input Power: Max 200 Watts
  • Operating Temp: -25°C to 75°C (-40°F to 167°F)
  • Weight: 9.92 lbs (4.5 kg)
  • Small form factor, 10.24”w x 9.45”d x 3.11”h
  • Shock Endurance: IEC 60068-2-27 (SSD, 50G, half sine 11ms)
  • Vibration Endurance: IEC 60068-2-64 (SSD, 5Grms STD,
    random 5 to 500 HZ. 3 axis)
  • Two year warranty
Specifications:
  • Up to 16 cameras and 32 total resources
  • Up to 8TB of local storage
  • Intel® Core 10th Gen i-5 Processor(6 Cores/12Threads/3.7GHZ)
  • 16GB Memory
  • 2- GbE Network Ports
  • 8- 1GbE ports with PoE+, 30W per port with a total power
  • budget of 240W
  • 9V-50V DC-in, Fanless, CE/FCC Class A, IP40
  • Operating Humidity 95% at 70°C
  • Operating Temp: -25°C to 75°C (-40°F to 167°F)
  • Weight: 9.92 lbs (4.5 kg)
  • Small form factor, 10.24”w x 9.45”d x 3.11”h
  • Shock Endurance: IEC 60068-2-27 (SSD, 50G, half sine 11ms)
  • Vibration Endurance: IEC 60068-2-64 (SSD, 5Grms STD, random 5 to 500 HZ. 3 axis)
  • Two year warranty
Part Numbers:
QXE710-02 (Harsh & mobile appliance with 2TB SSD)
QXE710-04 (Harsh & mobile appliance with 4TB SSD)
QXE710-08 (Harsh & mobile appliance with 08TB SSD)
Part Numbers: Accessories
QXE710-PS (Power Supply)
QXE710-5G (5G Kit)
QXE710-LTE (LTE Kit)
QXE710-WIFI (WIFI Kit)
