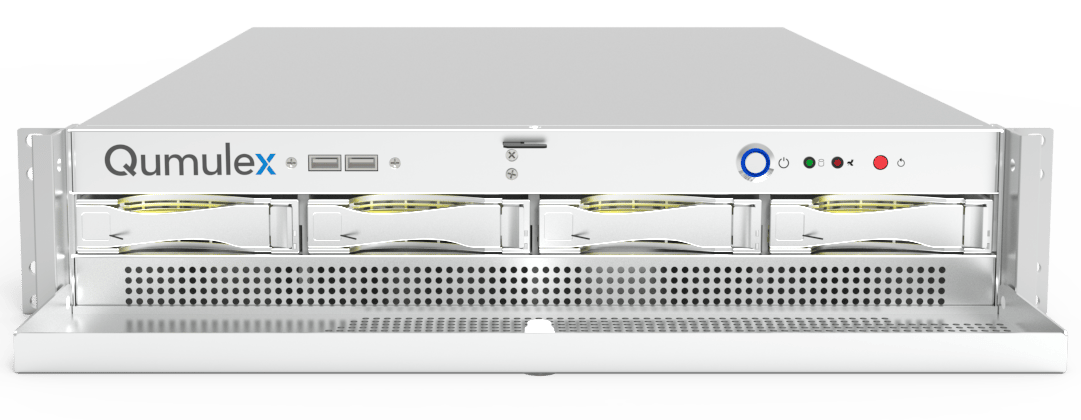

Qumulex - QXS500-18 - QxStation 500 - 2U rackmount gateway with 18TB HDD. Add up to 32 cameras and up to 64 total resources.
Part number:
QXS500-18
Price:
QxStation provides a hybrid cloud/on-premise environment that supports moving to the cloud at any pace. QxStation appliances can either be cloud connected to take advantage of cloudbased management, monitoring and video storage, or be an on premises-only solution. Selectable local storage provides event driven or continuous recording options.
Features:
- Up to 32 cameras/64 total resources (QXS500) and 64 cameras/96 resources (QXS500-UP)
- Up to 72 TB local storage
- Intel Core Processor
- 16GB Memory
- Dual GigE ports
- 90-264 VAC / 47-63 Hz
- Input Power: Max 400 Watts
- Operating Temp: 10°C-35°C
- Weight: 32.6 lbs (14.8 kg)
- 2U form factor, 19"w x 22.25"d x 3.5"h
- Three year warranty
| Specifications: |
• Up to 32 cameras/64 total resources (QXS500) and 64 cameras/96 resources (QXS500-UP) or 96 cameras/96 resources (QXS500-UP96) • Up to 88 TB local storage • Intel Core Processor • 16GB Memory • Dual GigE ports • 90-264 VAC / 47-63 Hz • Input Power: Max 400 Watts • Operating Temp: 10°C-35°C • Weight: 32.6 lbs (14.8 kg) • 2U form factor, 19”w x 22.25”d x 3.5”h • Three year warranty |
| Part Numbers: |
| QXS500-04 (2U rackmount appliance with 4TB HDD) QXS500-08 (2U rackmount appliance with 8TB HDD) QXS500-22 (2U rackmount appliance with 22TB HDD) QXS500-36 (2U rackmount appliance with 36TB HDD) QXS500-44 (2U rackmount appliance with 44TB HDD) QXS500-54 (2U rackmount appliance with 54TB HDD) QXS500-88 (2U rackmount appliance with 88TB HDD) QXS500-UP(Factory upgrade the capacity of the QxStation 500 to support 64 cameras and 96 total resources.) QXS500-UP96 (Factory upgrade the capacity of the QxStation 500 to support 96 cameras and 96 total resources.) |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
