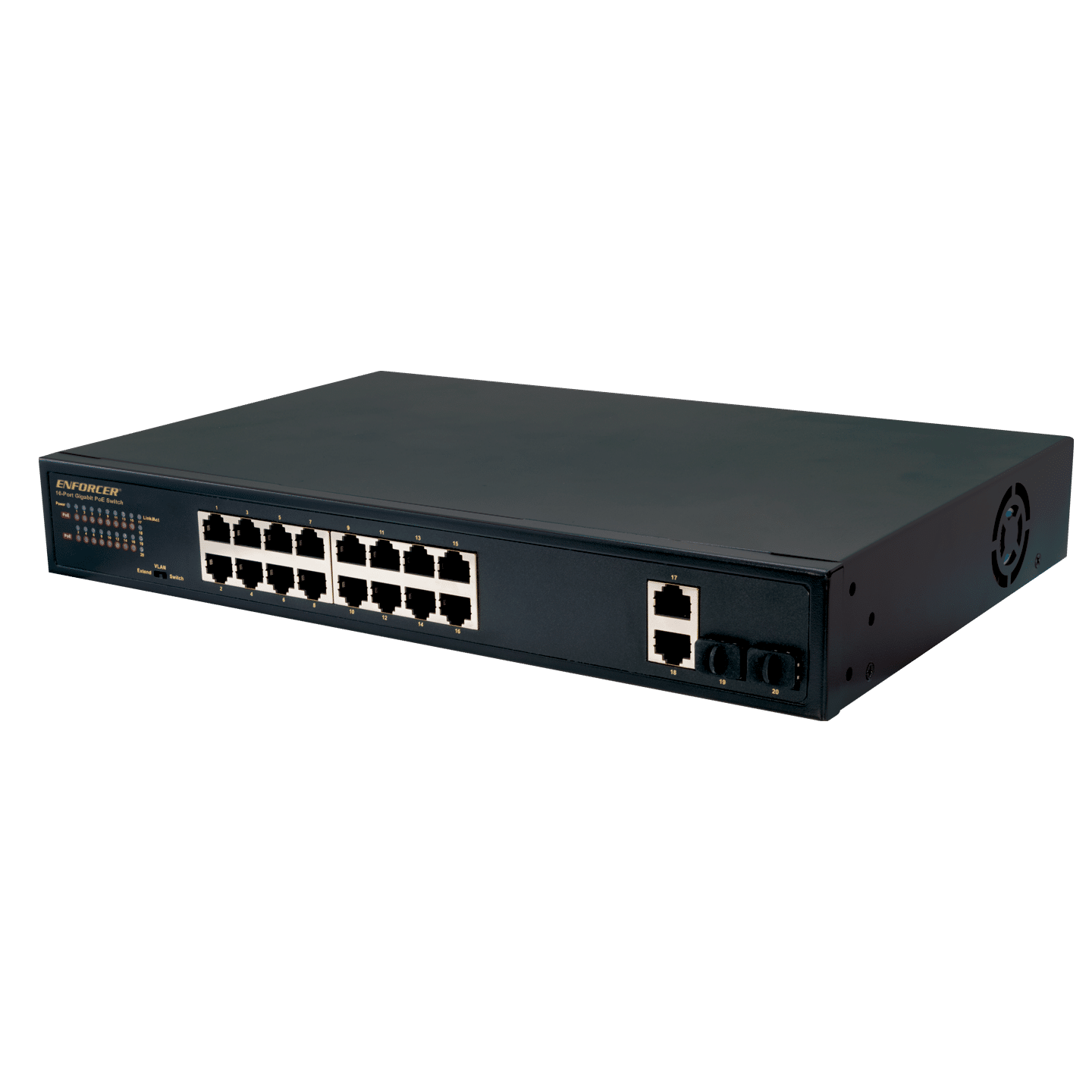

SECO-LARM - NS-516UT-GAQ - 16-Port Gigabit Unmanaged PoE+ Switch
Part number:
NS-516UT-GAQ
Price:
ENFORCER Unmanaged PoE+ Switch provides Ethernet and power to PoE devices such as IP cameras, IP access control, IP speakers/intercoms, IP telephony, etc. Fast packet forwarding capability and extra backplane bandwidth ensure clear images at fast transmission speeds for video, making them well-suited for HD IP CCTV installations.
Features:
- Provides both Ethernet data and power to multiple PoE devices including IP cameras, IP access, IP speakers/intercoms, VOIP, etc.
- Specially designed for video transmission with fast packet forwarding capability for clear images and smooth transmission
- Easy plug-and-play installation
- Supports up to 10/100/1000BASE-T
- IEEE 802.3x flow control
| Operating voltage | 100~240 VAC |
| Power consumption | <20W |
| Ports | 16 Downlink, 2 uplink, 2 SFP |
| Ethernet speed | 10/100/1000Mbps (uplink, 1000Mbps) |
| Ethernet standard | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Transmission distance | 328ft (100m)‡ |
| PoE capacity | 250W |
| Switching capacity | 40Gbps |
| Transfer rate | 10Mbps:14,880pps |
| 100Mbps:148,800 | |
| 1000Mbps:1,488,000 | |
| MAC Address table | 8K |
| LED Indicators | Connection/transmission and PoE for each port, power |
| Operating humidity | 0~90% non-condensing |
| Operating temperature | 14°~122° F (-10°~40° C) |
| Dimensions | 12-5/8″x1-3/4″x8-1/8″ (320x44x207 mm) |
| Weight | 4-lb 8-oz (2.06kg) |
