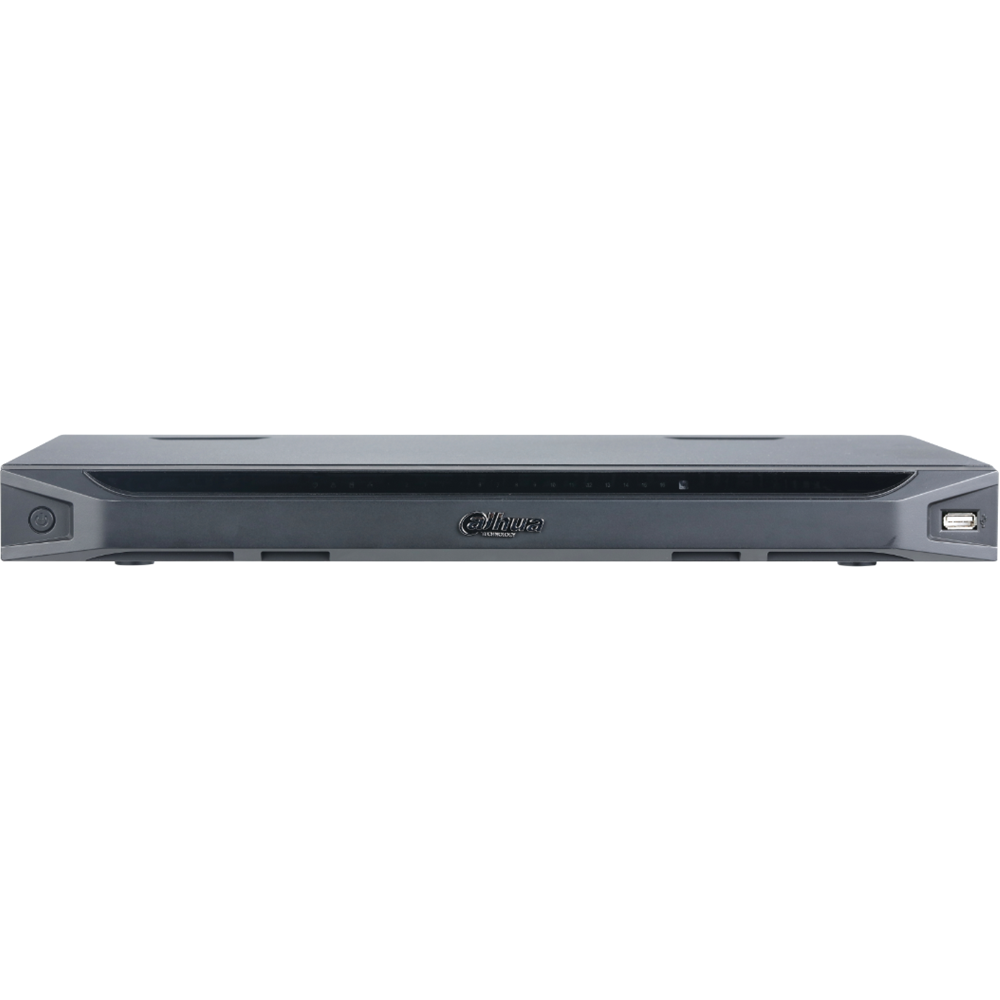

Dahua - DHI-NVD0105DH-4K - Single Screen Ultra-HD Network Video Decoder
Dahua - DHI-NVD0105DH-4K - Single Screen Ultra-HD Network Video Decoder
Part number:
DHI-NVD0105DH-4K
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

The NVD0105DH is a network video decoder that allows customers to easily route IP video from cameras to a video wall without the need of a PC or NVR. Perfect for small to medium scale deployments where display and control is required.



Features:

  •
  • Designed for Standalone Operator Viewers
  • Smart H.265+, H.265, H.264, MPEG4, MJPEG Video Decoding
  • Ultra-high Decoding Capability, up to 12 MP on Three (3) Channels
  • HDMI/VGA Output; HDMI Supports 4K Output
  • Supports 1/4/9/16/25/36/64 Split-screen Display
  • Audio, Alarm, Bi-directional Talk, and RS485 Interfaces
  • Displays Intelligent Regular Line
  • Five-year Warranty (for products sold through authorized Dahua Dealers)
System
ProcessorIntel x86 Processor
Operating SystemEmbedded LINUX
Performance
Video CompressionSmart H.265+ H.265, H.264, MPEG4, MJPEG
Audio CompressionPCM, G711
Decoding Resolution12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p,
960H, D1, HD1, 2CIF, CIF, QCIF
Video Decoding3 channels of 12 MP at 25 fps
4 channels of 8 MP at 30 fps
6 channels of 6 MP at 25 fps
8 channels of 5 MP at 25 fps
9 channels of 4 MP at 25 fps
10 channels of 3 MP at 30 fps
12 channels of 3 MP at 25 fps
16 channels at 1080P
36 channels at 720P
64 channels at D1
Video OutputHDMI or VGA
Display Resolution3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720,
1024 x 768
Audio OutputHDMI

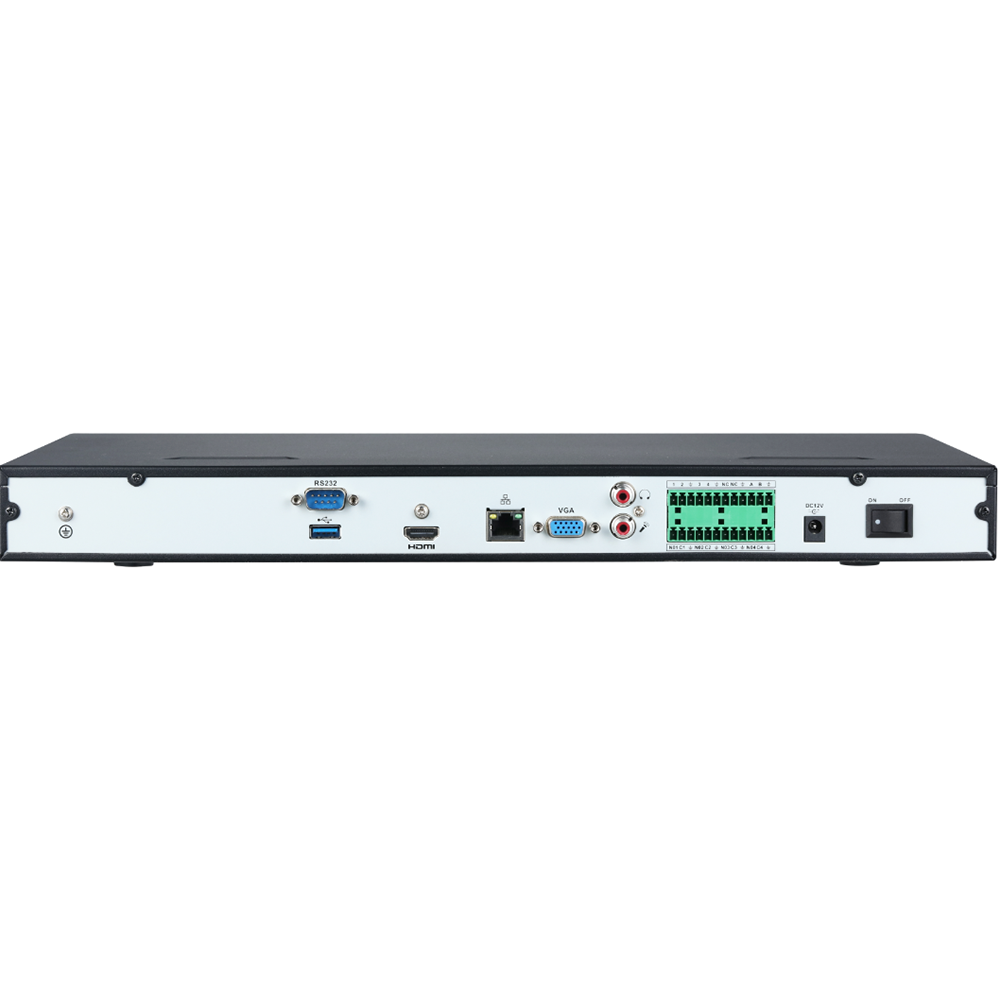

Communication InterfaceOne (1) RJ45 Network Port (10/100/1000 Mbps),
Self-adaptive
One (1) RS232 Port (DB9)
Bi-directional TalkInput: One (1) Channel, RCA
Output: One (1) Channel, RCA
(2 Vrms, 10K Ω)
AlarmsInput: Four (4) Channels
Output: Four (4) Relays (30 VDC 1 A, 125 VAC, 0.5 A)
Power, Environment, Construction
Power Supply12 VDC, 3.3 A
Power Consumption≤ 20 W
Working Temperature–10 °C to +55 °C (14 °F to 131 °F)
Working Humidity10% to 90%, 86 Kpa to 106 Kpa
Name
Description
Size
Downloads
File
Datasheet
0.6mb
