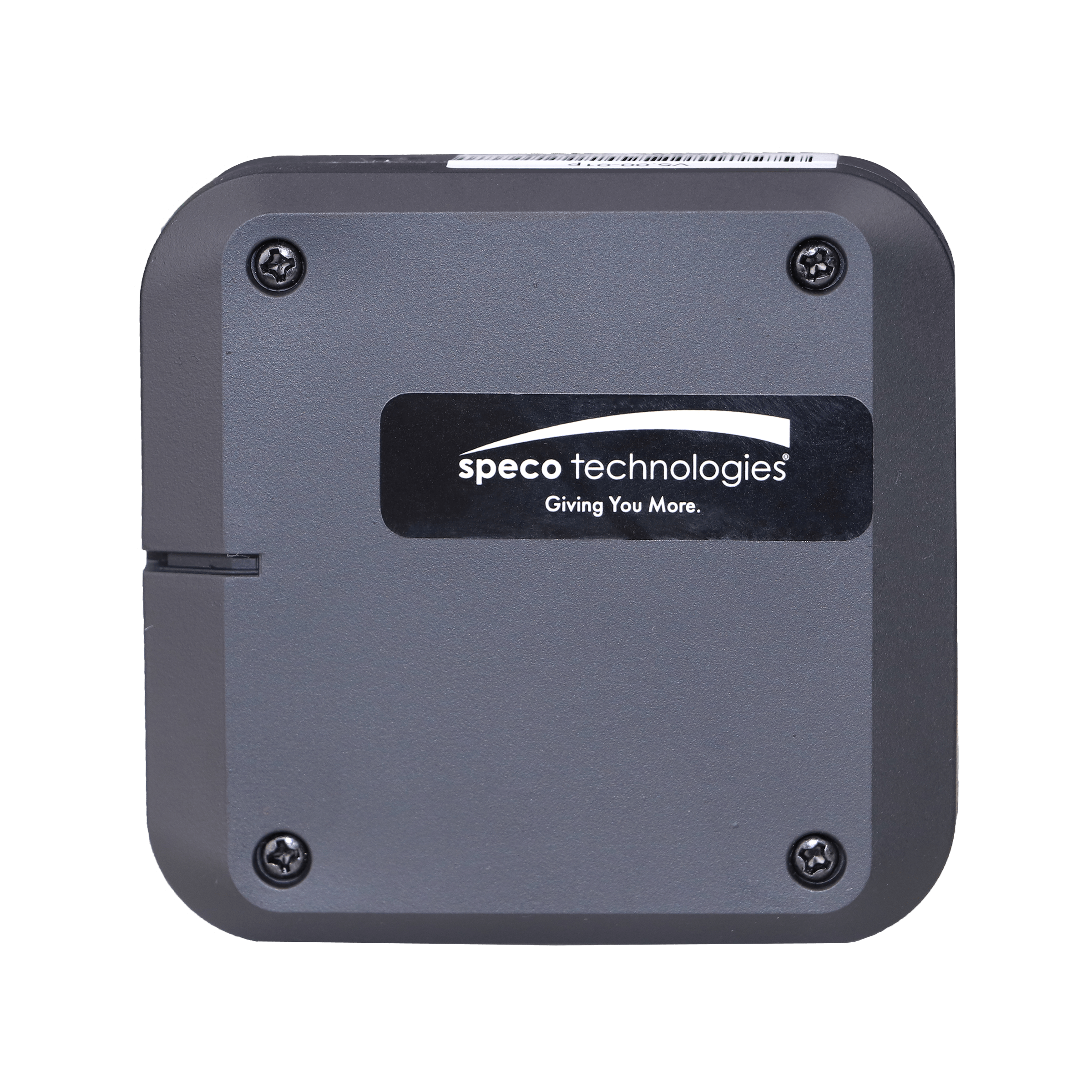

SPECO - A1 - 1 Door Controller
Single door controller
Out of the box ready browser managed •Embedded Linux operating system •2 Readers (In/Out)
2 Relays (Lock/Aux)
3 Inputs (REX, DPS, Aux) Global
UL Listed - 294 Series 7
Technical Specification
|
Processor |
Quad Core Cortex, 1.5 GHz |
|
|
Memory |
1GB DDR3 & 8GB eMMc |
|
|
Operating System |
Embedded Linux |
|
|
Transactions |
> 45 per second |
|
|
Power Requirements |
Regulated 12VDC @ 2A, Class 2 (not supplied) |
|
|
Operating Temperature |
50°F to 95°F (10°C to 35°C) |
|
|
Enclosure Size (W x H x D) |
3.2 x 3.0 x 1.3in (81 x 78 x 32mm) |
|
|
Standby Power Requirements |
350mA @ 12V |
|
|
Number of Doors |
2 Total, One In & One Reader |
|
|
Readers (Wiegand) |
2 Total, One In & One Out Reader |
|
|
Reader Power |
300mA @ 12V Max per Reader |
|
|
600mA @ 12V Max per System |
||
|
|
||
|
Request to Exit (REX) Input |
1 |
|
|
Door Position (status) Input |
1 |
|
|
Auxiliary Input |
1 |
|
|
Tamper Digital Input |
1 |
|
|
Power Fault Digital Input |
1 |
|
|
Door Lock Output |
1 Form C Relay, 24V @ 1.0A |
|
|
Auxiliary Output |
1 Form C Relay, 24V @ 1.0A |
