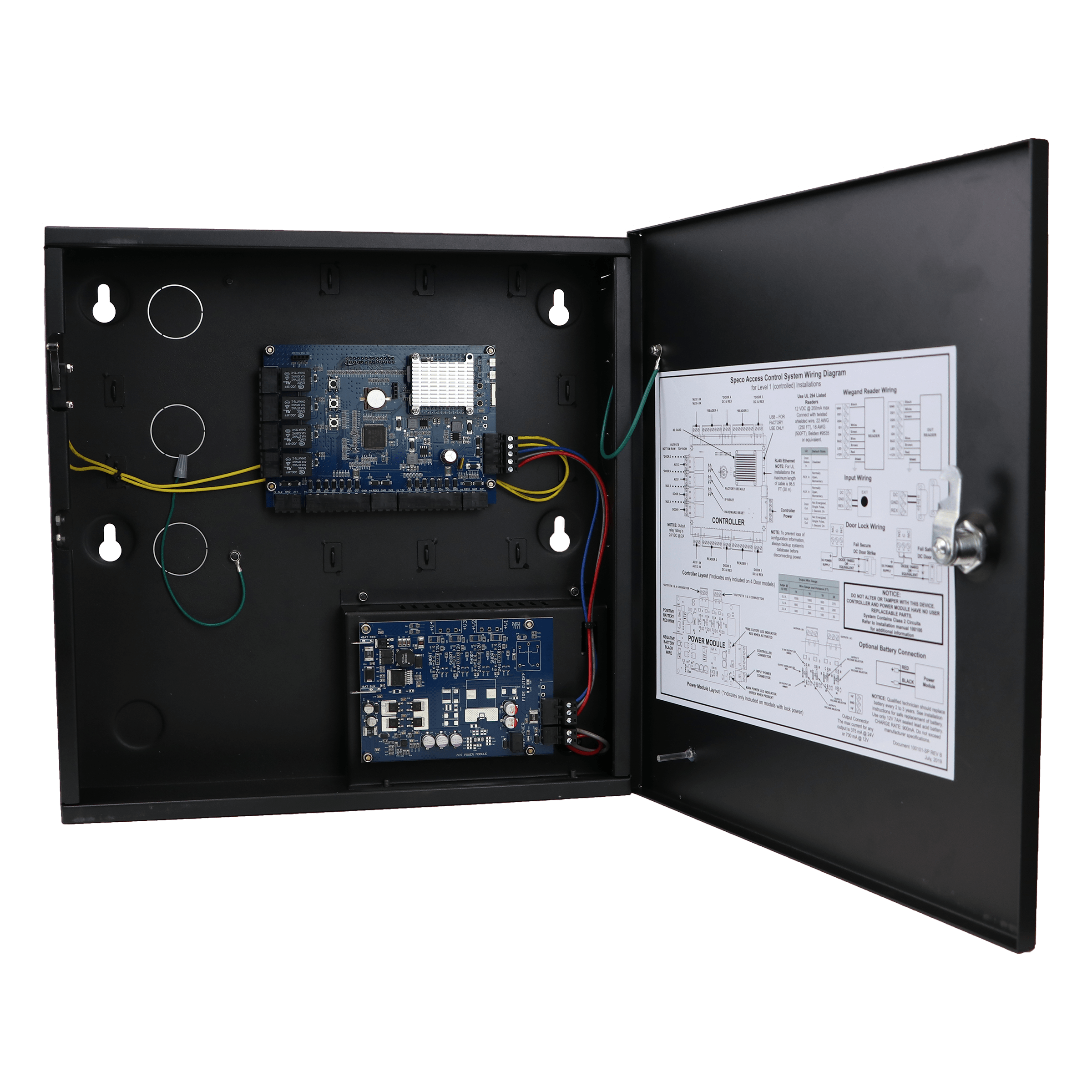

SPECO - A2E4 - 2 to 4 Door with Basic Power
2 door controller - expandable up to 4 doors, basic power
- Expandable up to 4 doors (when used with A2M board)
- Out of the box ready browser managed
- Available on all browsers
- Embedded Linux operating system
- UL Listed – 294 Series 7
Technical Specification
|
Model |
A2E4 |
|
A2E4P |
|
Processor |
Quad Core Cortex, 1.5 GHz |
|
|
|
Memory |
1GB DDR3 & 8GB eMMc |
|
|
|
Operating System |
Embedded Linux |
|
|
|
Transactions |
> 45 per second |
|
|
|
System Power Requirements |
115VAC @ 1.5A |
|
|
|
Operating Temperature |
50°F to 95°F (10°C to 35°C) |
|
|
|
Enclosure Size (W x H x D) |
14.25 x 14.25 x 3.75in (362 x 362 x 95mm) |
||
|
Internal Power Supply |
Controller & Readers Only |
|
Controller, Readers & 12V and |
|
|
|||
|
|
24V DC for Door Locks |
||
|
|
|
|
|
|
Lock Power Output |
NA |
|
375mA @ 24V |
|
|
700mA @ 12V |
||
|
|
|
|
|
|
Battery Backup |
Controllers & Readers Only |
|
Controllers, Readers, & Door Lock |
|
Recommended Battery Type |
Powersonic PS-1270-FI or Similar |
|
|
|
(battery is not included) |
12V, 7AH, Sealed Lead Acid with 0.187 inch terminals |
||
|
Standby Power Requirement |
400mA @ 12V |
|
450mA @ 12V |
|
|
|||
|
Readers (Wiegand) |
4 Total, One In & One Out Reader for Each Door |
||
|
Reader Power |
300mA @ 12V Max per Reader |
|
|
|
1000mA @ 12V Max per System |
|
|
|
|
|
|
|
|
|
Request to Exit (REX) Inputs |
2 Total, One for Each Door |
|
|
|
Door Position (status) Inputs |
2 Total, One for Each Door |
|
|
|
Auxiliary Input |
2 Total, General Purpose |
|
|
|
Tamper Digital Input |
Yes, Prewired on Units with Integrated Power |
||
|
Power Fault Digital Input |
Yes, Prewired on Units with Integrated Power |
||
|
Door Lock Outputs |
2 Form C Relay, 24V @ 2.0A |
|
|
|
Auxiliary Outputs |
2 Form C Relay, 24V @ 2.0A |
||
