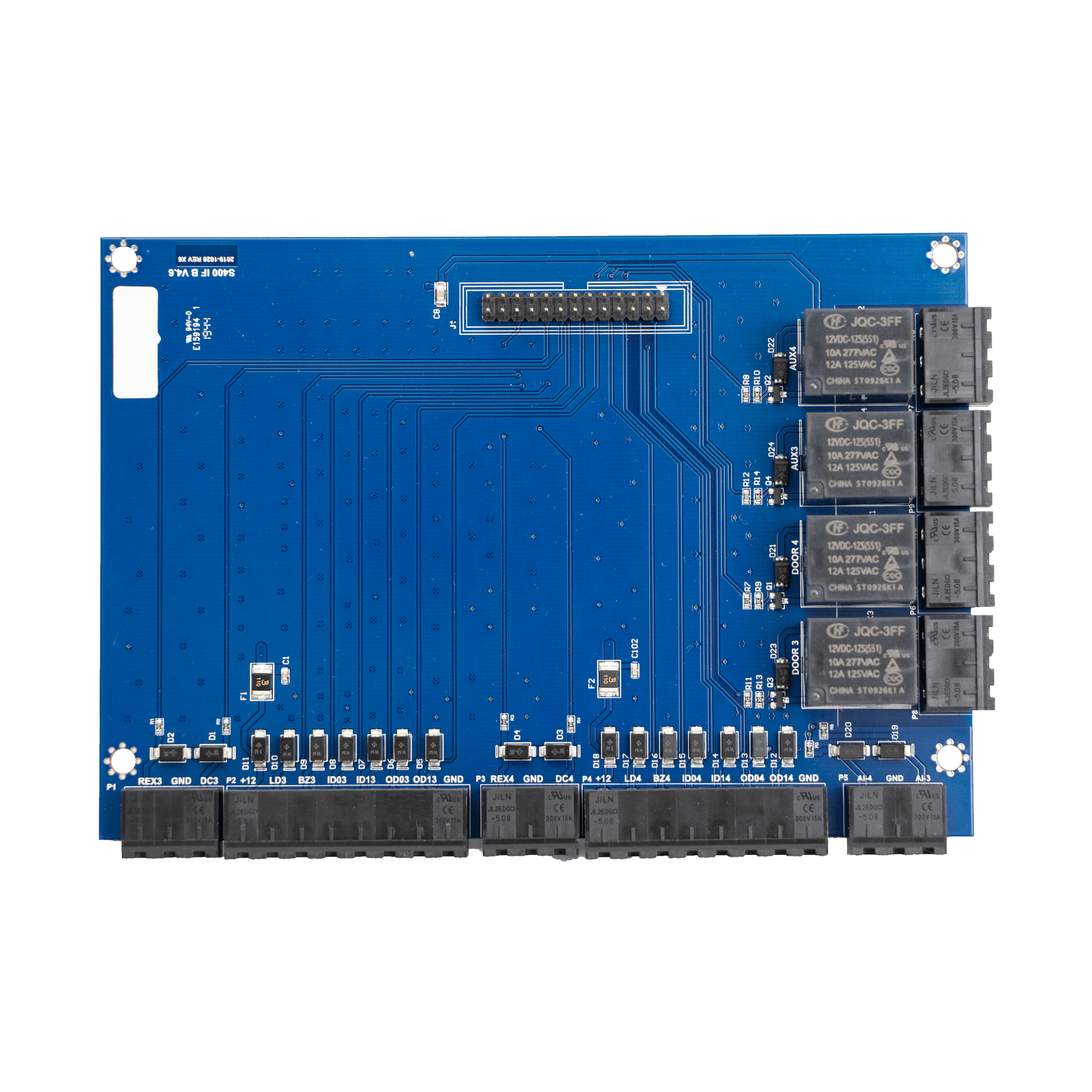

SPECO - A2M - 2 Door Expansion Board
Add on 2 door module to use with A2E4 and A2E4P
Part number:
A2M
Price:
- Expands A2E4/A2E4P up to 4 doors
- 2 Readers (In/Out)
- 2 Relays (Lock/Aux)
- 3 Inputs (REX, DPS, Aux)
- Global
- UL listed - 294 Series 7
Technical Specification
|
Model |
A2M |
|
|
Operating Temperature |
50°F to 95°F (10°C to 35°C) |
|
|
Dimensions |
6.125 x 4.25 x 0.75in |
|
|
Internal Power Supply |
Controller & Readers Only |
|
|
Readers (Wiegand) |
4 Total, One In & One Out Reader for Each Door |
|
|
Reader Power |
300mA @ 12V Max per Reader |
|
|
1000mA @ 12V Max per System |
||
|
|
||
|
Request to Exit (REX) Inputs |
2 Total, One for Each Door |
|
|
Door Position (status) Inputs |
2 Total, One for Each Door |
|
|
Auxiliary Input |
2 Total, General Purpose |
|
|
Door Lock Outputs |
2 Form C Relay, 24V @ 2.0A |
|
|
Auxiliary Outputs |
2 Form C Relay, 24V @ 2.0A |
Name
Description
Size
Downloads
File
Data Sheet
0.4mb
