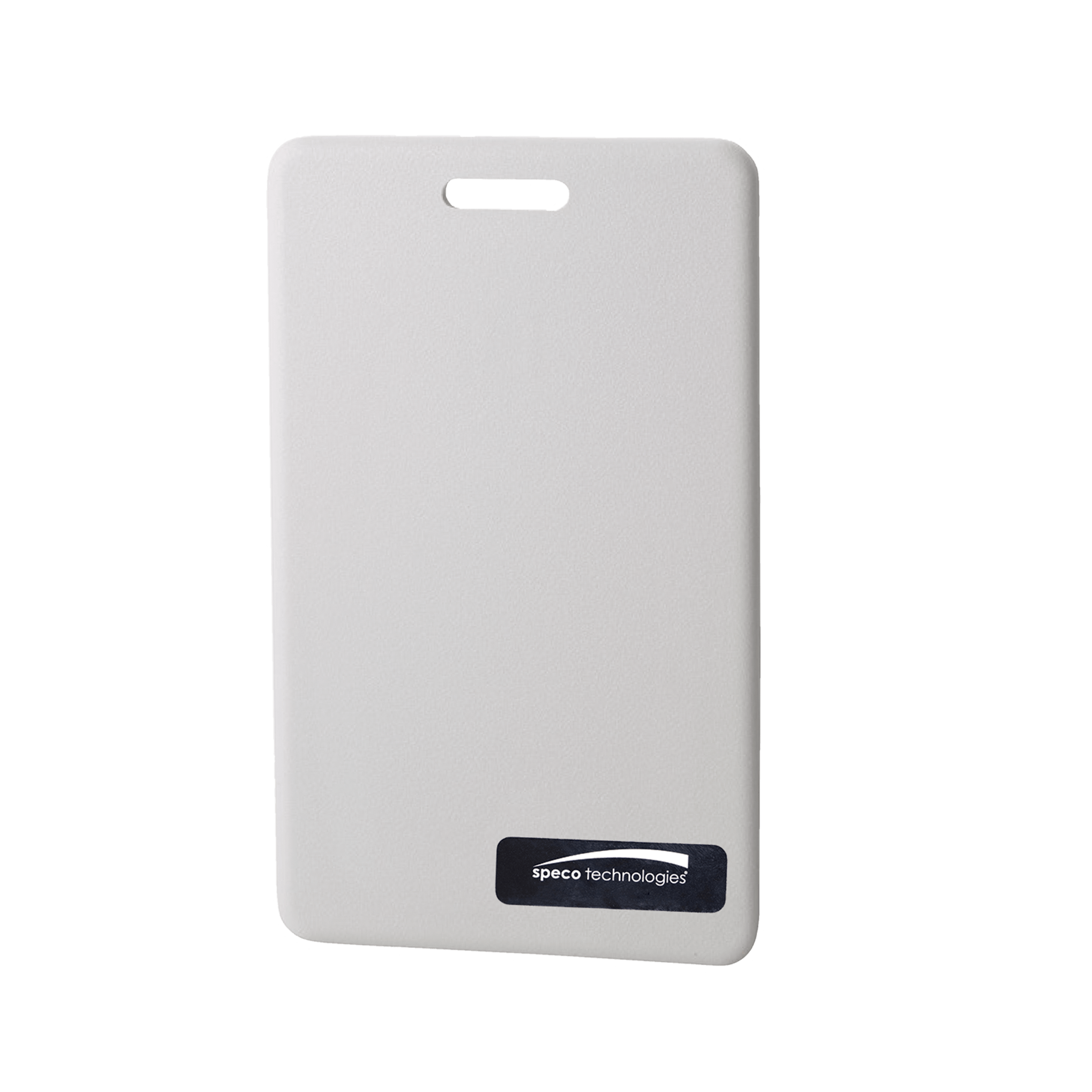

SPECO - APSC1 - Clamshell Credentials for Proximity Readers (pack of 25)
Clamshell Proximity Card
Part number:
APSC1
Price:
- Up to 8in contactless read range
- Contactless Digital Radio Frequency Identification (RFID) technology
Technical Specification
|
Technology |
Proximity |
|
Frequency |
125 kHz |
|
Operation |
Passive (no battery) |
|
Type |
Clamshell card |
|
Formats |
Wiegand 26-bit |
|
Material |
ABS |
|
Color |
Off-White |
|
Slot Punch |
Standard, vertical slot |
|
Marking |
Date code and ID |
|
Read Range |
Up to 8in (202mm) |
|
Warranty |
Lifetime warranty |
|
Dimensions |
2.2” W x 3.4” H x 0.06” D (56mm x 86mm x 1.5mm) |
|
Weight |
0.3oz (9g) |
|
Operating Temperature |
-35°F to 122°F (-37°C to 50°C) |
|
Humidity |
0-95% non-condensing |
|
Supporting Readers |
AP300HA, AP500HA, AP620HA, AP640HA |
Name
Description
Size
Downloads
File
Specs Sheet
0.2mb
