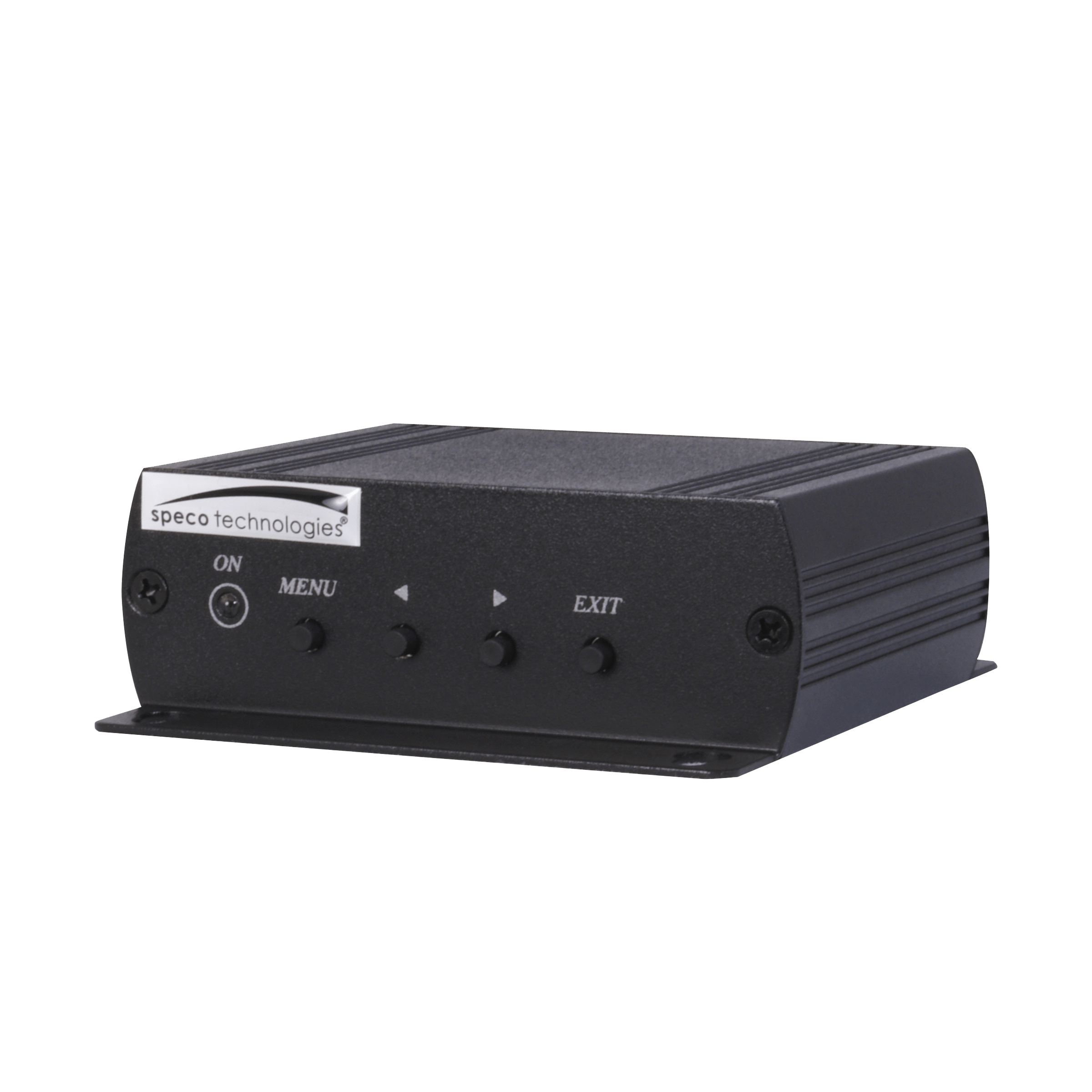

SPECO - BNCVGAHR - Use a VGA Monitor to View a Composite Video Signal - High Resolution
Use a VGA Monitor to View a Composite Video Signal – High Resolution
Part number:
BNCVGAHR
Price:
- Input: allows composite video output to be viewed on a VGA monitor (CRT or LCD)
- Dual output: BNC x 1 for TV monitor and DB15 x 1 for VGA monitor
- High resolution VGA display up to 1280 x 1024@60Hz
- Frequency output: 60Hz to 85Hz
- OSD video control
- On screen display function: brightness, contrast, color, tint, features, resolution
- OSD video control
- Compact size and low working temperature
- Built-in auto AGC for picture quality
- Supports NTSC & PAL video systems
- Power supply included
Specifications
|
Input Signal |
BNC, 75 Ω, 1 Vp-p |
|
|
Output Signal |
VGA: 0.7 Vp-p RGB, 15 pin D female connector |
|
|
BNC, 75 Ω, 1 Vp-p |
||
|
|
||
|
Power Consumption |
800mA (Max) |
|
|
Power Supply |
DC5V 1 Amp Regulated Power Supply (included) |
|
|
|
Operation: 32° - 131°F |
|
|
Temperature |
Storage: -4° - 185°F |
|
|
|
Humidity: up to 95% |
|
|
Unit Dimensions |
3.5” (L) x 3.7” (W) x 1.2” (H) |
|
|
Weight |
.45 lbs |
