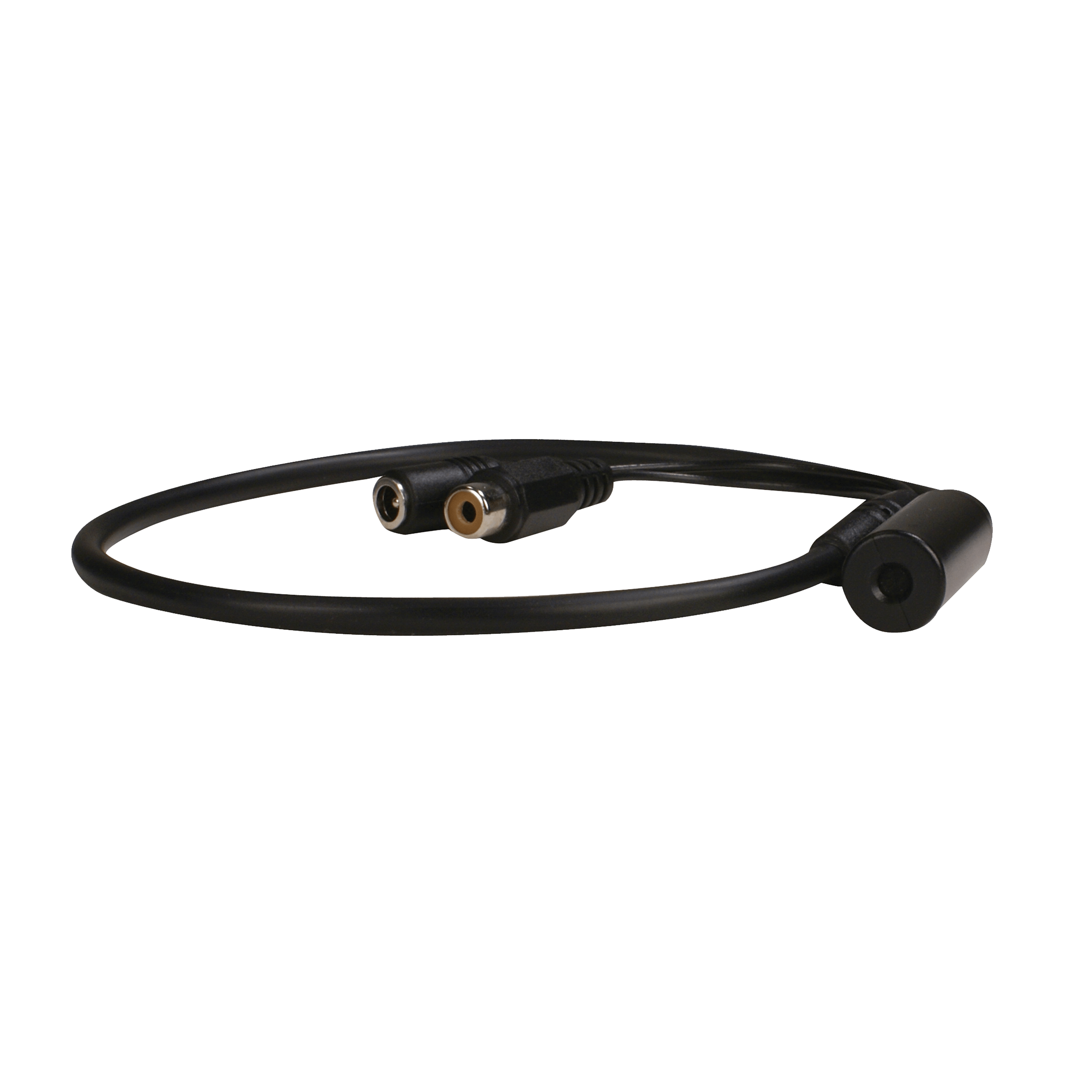

SPECO - CAMMIC - Microphone / Audio Pickup for Use with Camera

Microphone / Audio Pickup for Use with Camera

Part number:
CAMMIC
Price:

The CAMMIC is a unique microphone from Speco Technologies
in that it can be connected to a line level input on an
amplifier or DVR instead of a microphone level input.
This provides great flexibility on units that have all
microphone inputs occupied or that don’t have a microphone
input at all. It’s especially ideal for recording channel
specific audio on DVRs with that capability.

• Add-on mini microphone for all applications
• High sensitivity
• Power/audio cable
• Easy to install and ideal for all security
surveillance voice recording applications
• Unique line level output
• 12VDC operation (not included)

Specifications:

ITEM NO.

CAMMIC

Audio Output

Max 2V p-p

Power Supply

DC12V (+/- 0.5V)

Power Consumption

10 mA

Temperature

Operation: 14°to 113°F, Storage: -22°to 140°F, Humidity: up to 95%

Dimensions

2” x 0.5” x 0.5” + 17” cable

Weight

0.25 Lbs.

Name
Description
Size
Downloads
File
Manual
0.2mb
File
Spec Sheet
0.6mb
