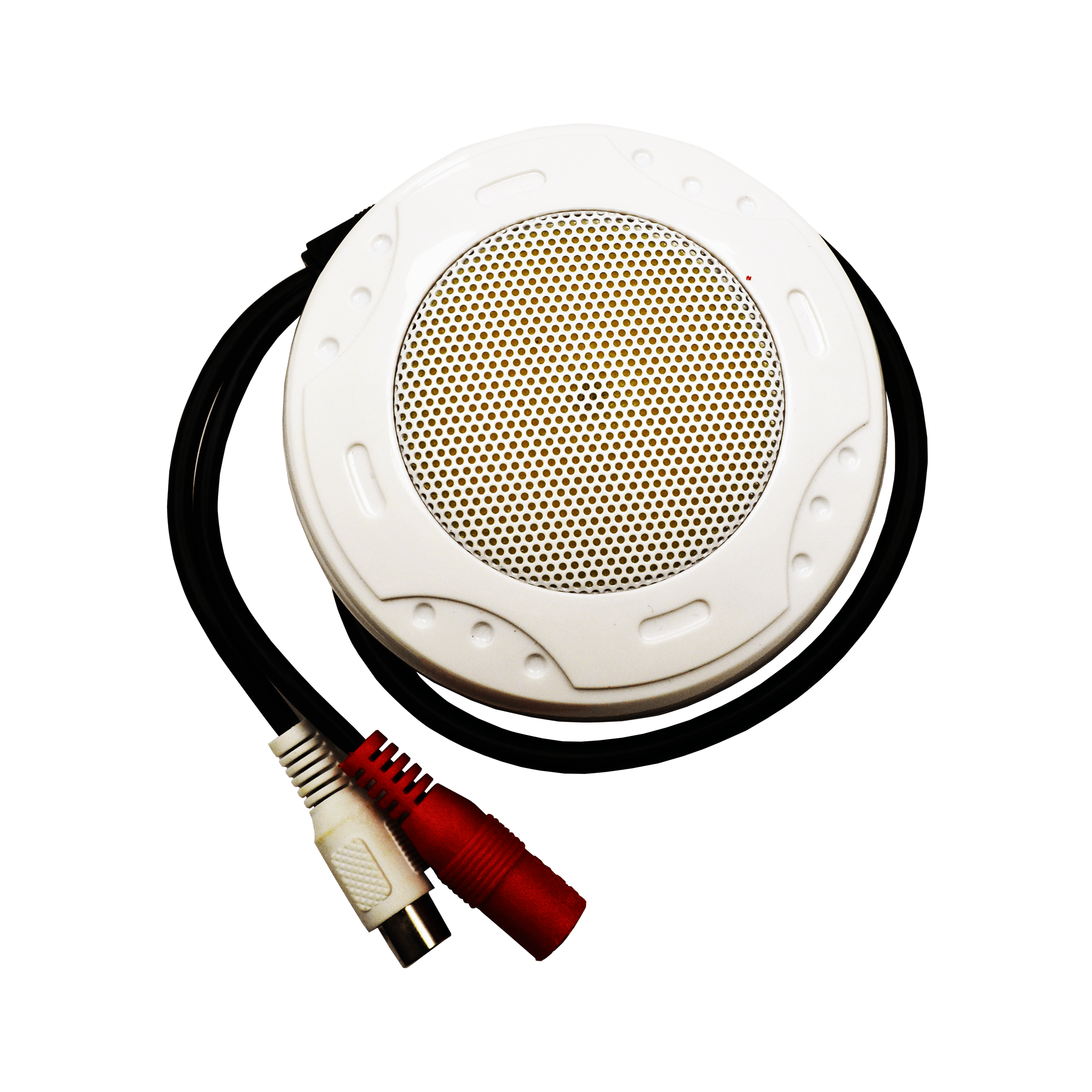

SPECO - CAMMIC2 - Surface Mount Microphone/Audio Pickup for Use with Camera
Surface Mount Microphone/Audio Pickup for Use with Camera
Part number:
CAMMIC2
Price:
- Can be wall or ceiling mounted
- Designed for indoor spaces
- Ideal pickup range of 10 to 120 square feet
- Gain control to increase or reduce pick-up sensitivity
- High-fidelity, high sensitivity, high bandwidth, and
- low noise.
- Built-in high-speed voice processing with dynamic
- noise reduction.
- Built-in self-gain control AGC processing circuit
- which effectively minimizes speech signal distortion
- and attenuation.
- Built-in lightning protection with reverse polarity
- power protection and power protection module.
- Integrated professional audio pre-amplification
- processing circuit to directly drive active speakers,
- hard disk recordings, headphones, etc.
- Long-range audio signal transmission technology
Specifications
|
Range |
10 - 120 ft.² |
|
Sensitivity |
-43dB @ 1000 Hz |
|
S/N |
Max 65dB |
|
Operating Voltage |
9 - 12VDC, 25mA (max) (not included) |
|
Dimensions |
3.4” (W) x 1” (H) |
|
Connection Mode |
Red (power), white (RCA audio) |
|
Sensitivity Adjustment |
On board, accessed through cutout on back of unit |
|
|
|
Name
Description
Size
Downloads
File
Specs Sheet
0.4mb
File
Manual
0.1mb
