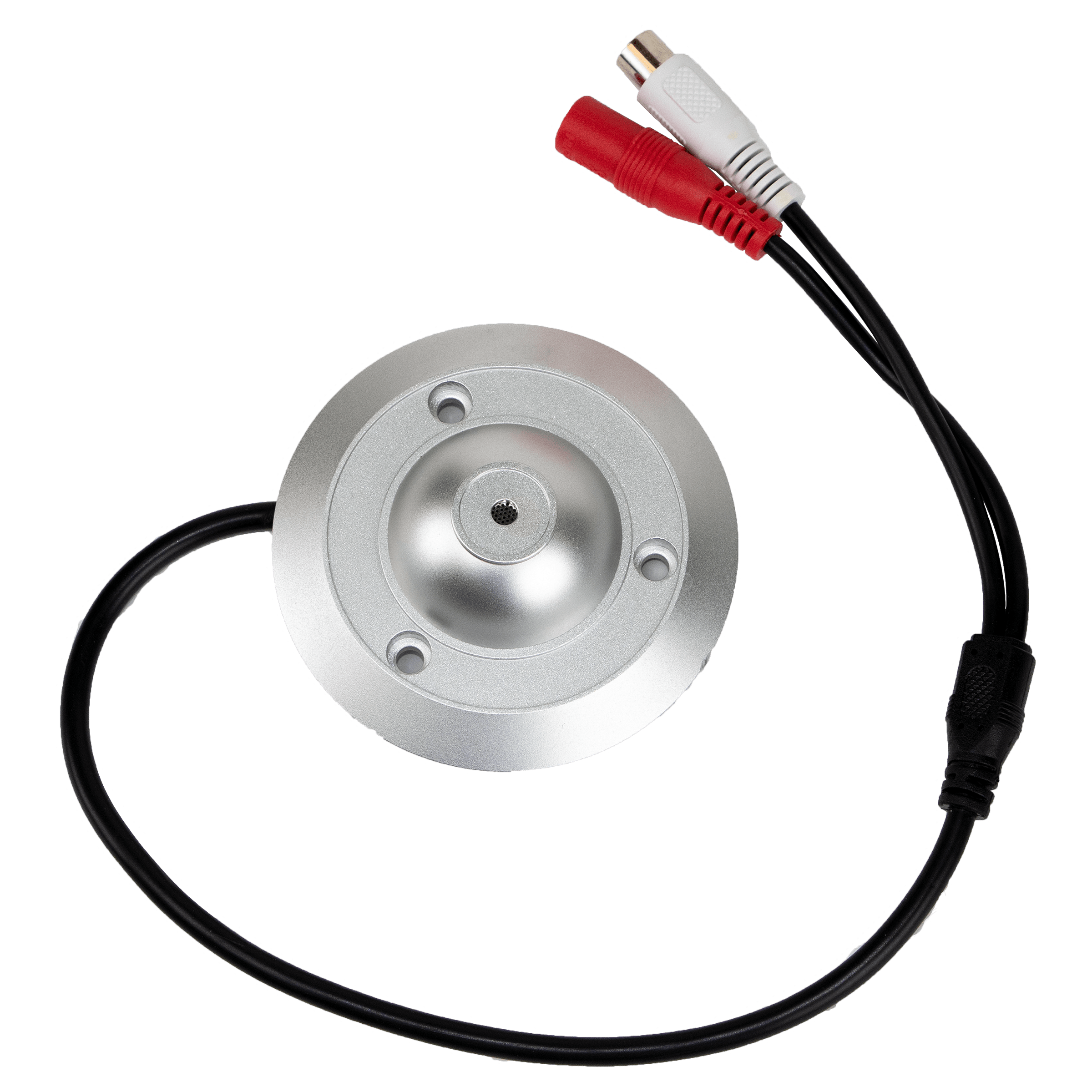

SPECO - CAMMICW - Weather Resistant Line Level Microphone/ Audio Pickup for Use with Camera
Weather Resistant Line Level Microphone/ Audio Pickup for Use with Camera
Part number:
CAMMICW
Price:
- Constructed out of Aluminum alloy for outdoor use.
- Pickup indoors in rooms up to 120 sq. ft.
- Built-in high-speed voice processing
- Built-in self-gain control AGC processing circuit, which helps prevent signal distortion
- Built-in lightning protection, reverse polarity power protection and power protection module
- Integrated pre-amplification processing circuit
- Recommended transmission distance of 25’ – optional accessory UTPAUDIO is available for transmission up to one mile over UTP cable
- Requires power supply (not included). PSW5 is recommended.
Specifications
|
Range |
10 ~120 ft.² |
|
Sensitivity |
-43dB @ 1000 Hz |
|
S/N |
Max 65dB |
|
Operating Voltage |
9 - 12VDC, 25mA (max) (not included) |
|
Dimensions |
3” diameter x 1” (H) (75*25mm) |
|
Connection Mode |
Red (power), black (GND, signal to), white (audio signal) |
Name
Description
Size
Downloads
File
Specs Sheet
0.4mb
File
Manual
0.1mb
