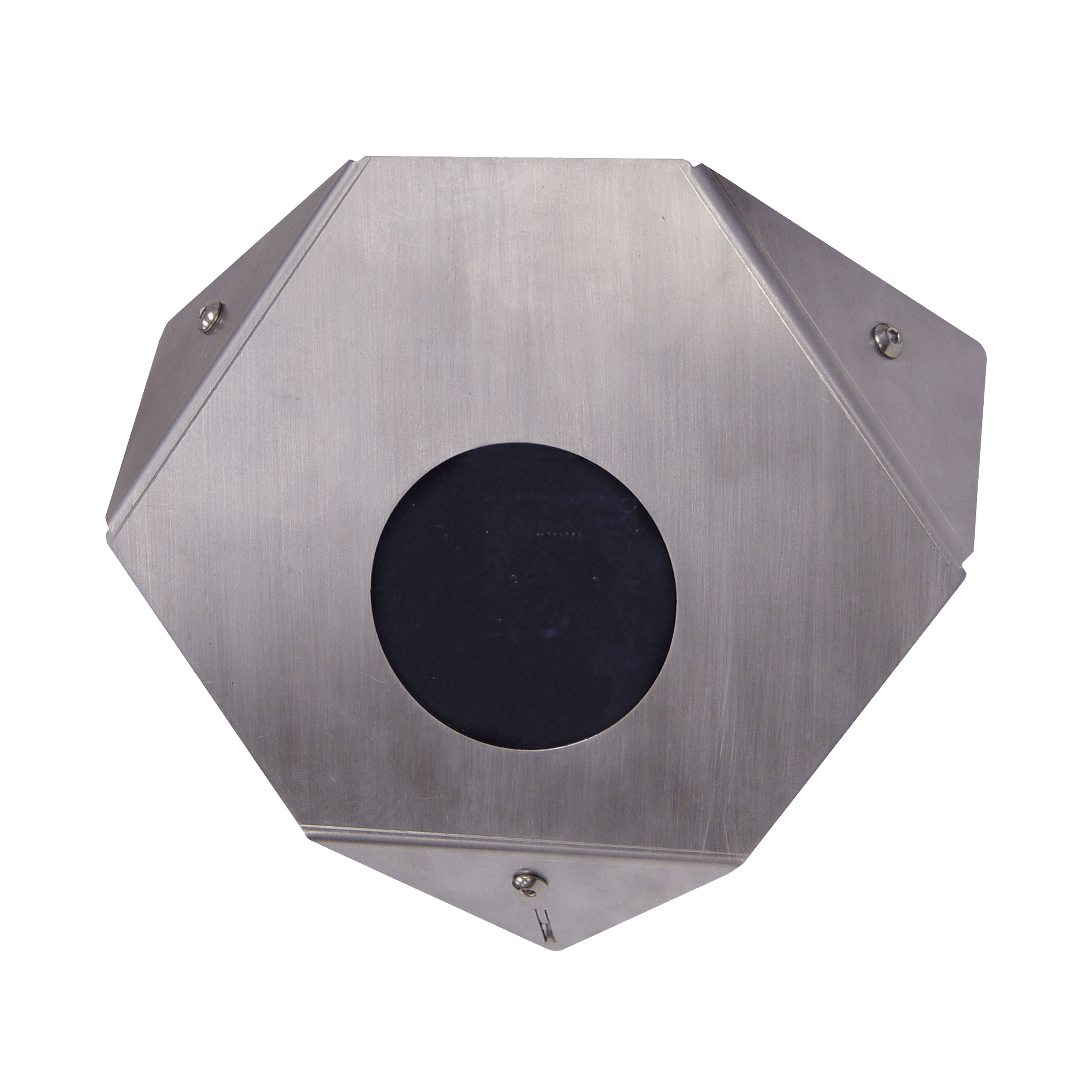

SPECO - CVC607CMT2.5 - 2MP HD-TVI Heavy Duty Corner Mount Camera 2.5mm Lens Vandal Resistant, TAA
2MP HD-TVI Heavy Duty Corner Mount Camera 2.5mm Lens Vandal Resistant, TAA
- Supports up to Full HD 1080p @ 30fps
- Full HD resolution over coax
- Vandal resistant 90° corner mount camera
- Heavy duty housing is built to withstand blows from a 10 lb. sledgehammer
- 12VDC operation
- Additional analog output for 960H
|
Specifications |
|
|
||
|
|
|
|||
|
Image Sensor................................... |
1/3” Progressive Scan CMOS, 2MP |
|
||
|
Resolution........................................ |
1920 x 1080 |
|
||
|
Effective Pixels................................. |
1984 (H) x 1105 (V) |
|
||
|
Total Pixels....................................... |
2000 (H) x 1121 (V) |
|
||
|
Electronic Shutter............................. |
1/30 sec. ‒ 1/30,000 sec. |
|
||
|
S/N Ratio.......................................... |
More than 50dB |
|
||
|
Video Output.................................... |
1.0Vp-p / 75 ohms |
|
||
|
Power Consumption......................... |
200mA |
|
||
|
Power Supply................................... |
12VDC (power supply not included) |
|
||
|
Operating Temperature.................... |
14° F ‒ 122° F |
|
||
|
Housing............................................ |
16 gauge steel |
|
||
|
Dimensions...................................... |
5.1” (W) x 3.3” (H) |
|
||
|
Weight.............................................. |
1.5 lbs. |
|
||
|
Communication................................ |
UTC |
|
||
