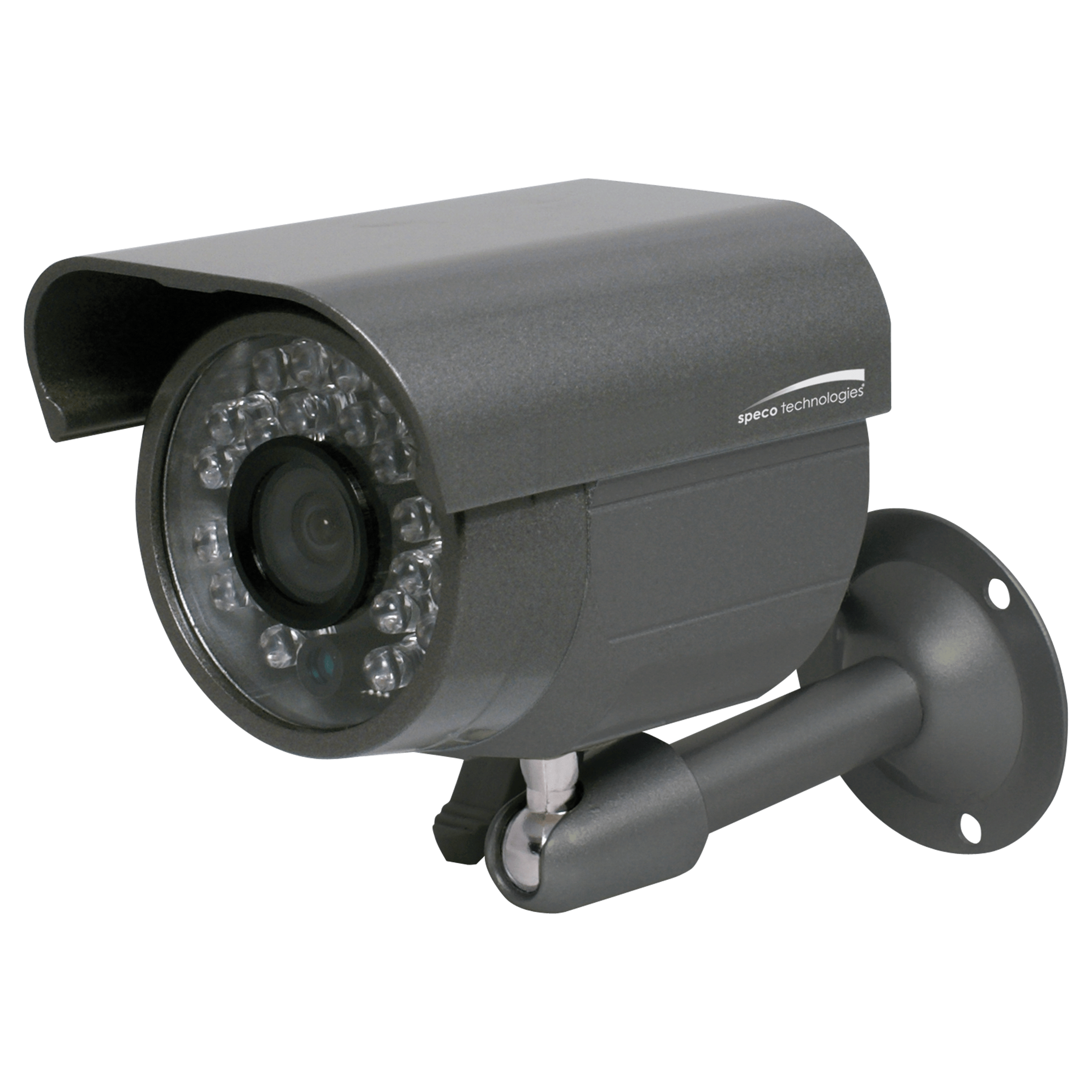

SPECO - CVC617T - 2MP HD-TVI IR Bullet Camera, 3.6mm fixed lens, Grey Housing, TAA
2MP HD-TVI IR Bullet Camera, TAA
3.6mm fixed lens, Gray Housing
- 3.6mm fixed lens
- Full HD resolution over coax (HD-TVI)
- IR Range: 65’ (depending on scene reflection)
- IP66 compliant, weather resistant
- Mounting bracket included
- Additional analog output for 960H
- Full OSD operation via UTC (TVI)
- 12VDC operation
|
Specifications |
|
|
Image Sensor....................... |
1/3” Progressive Scan CMOS, 2MP |
|
Resolution............................ |
1920 x 1080 @ 30fps |
|
Minimum Illumination........... |
0.00 lux (IR LED on) |
|
Effective Pixels..................... |
1984 (H) x 1105 (V) |
|
Total Pixels........................... |
2000 (H) x 1121 (V) |
|
Number of IR LEDs.............. |
24 |
|
IR Range.............................. |
65’ (depending on scene reflection) |
|
Scanning System................. |
2:1 interlaced |
|
Synchronization.................... |
Internal |
|
S/N Ratio.............................. |
50dB |
|
Video Output........................ |
CVBS: 1.0Vp-p, 75 ohms |
|
Electronic Shutter Speed..... |
1/60 sec. ‒ 1/100,000 sec. |
|
Backlight Compensation...... |
Automatic |
|
AGC..................................... |
Automatic |
|
Power Consumption............. |
120mA (IR LED off), 350mA (IR LED on) |
|
Power Supply....................... |
12VDC (power supply not included) |
|
Operating Temperature........ |
14° F ‒ 120° F |
|
Dimensions.......................... |
2.36” (Dia.) x 3.36” (L) |
|
Weight.................................. |
12.8 oz. |
|
Included in Package............. |
Mounting bracket with screws |
