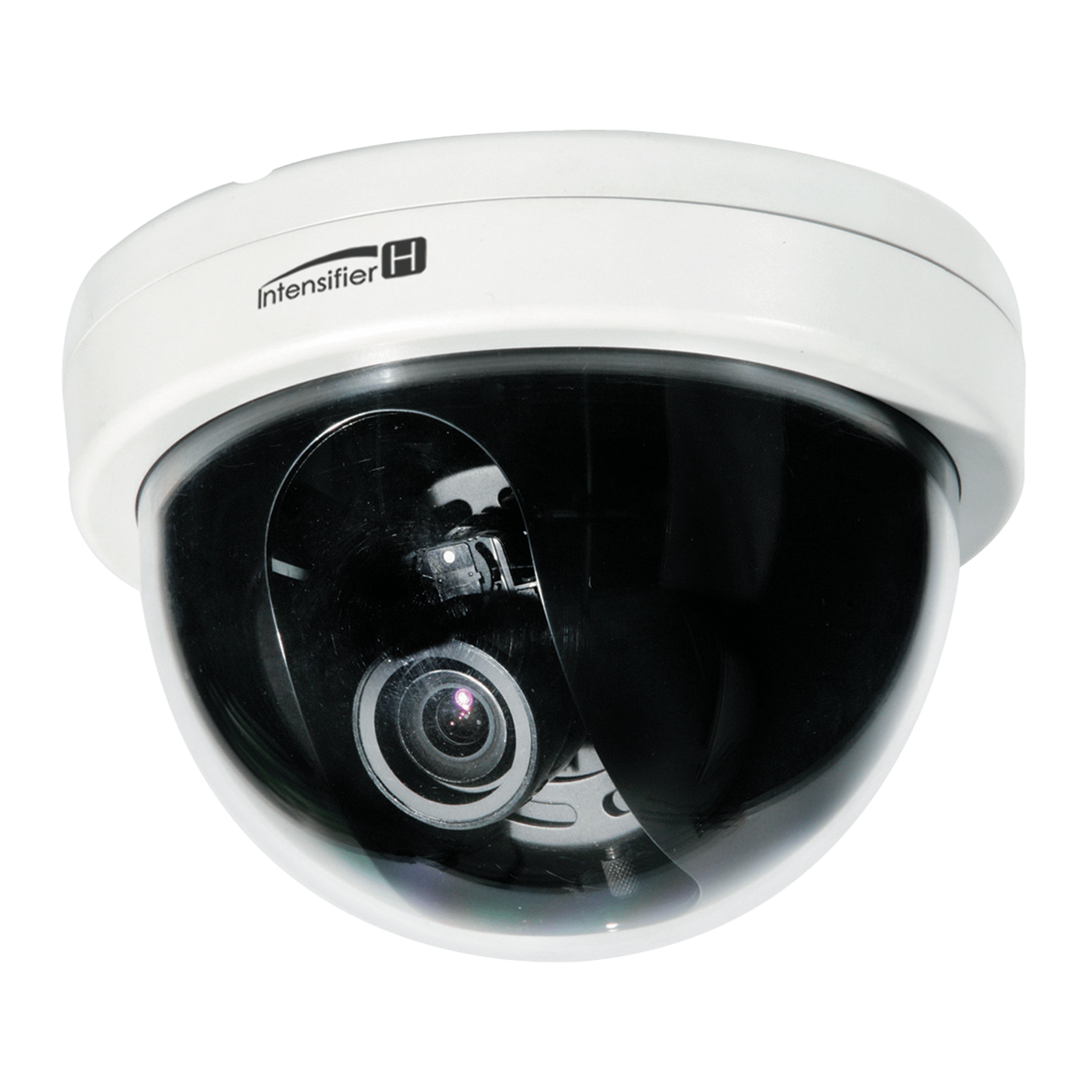

SPECO - CVC6246TW - 2MP HD-TVI IntensifierT Indoor Dome, 2.8-12mm, White Housing, TAA
2MP HD-TVI IntensifierT Indoor Dome, 2.8-12mm, White Housing, TAA
- 2.8-12mm auto iris varifocal lens
- 1/3” Sony Exmor CMOS, 2MP
- Full HD resolution over coax (HD-TVI)
- Amplify existing light with no distance limitations
- No problems caused by objects that reflect or absorb IR light sources
- With presets for different scenarios
- 12VDC / 24VAC dual voltage operation
- Full OSD operation via UTC
- 3 axis lens mount
- Signal distance up to 1600 feet
- Additional analog output for 960H
|
Specifications |
|
|
|
|
Image Sensor............................... |
1/3” Sony Exmor CMOS, 2MP |
Test Monitor Output...................... |
CVBS |
|
Resolution ................................... |
1980x1080p @ 30fps |
Intensify........................................ |
Auto / Off (selectable x2 - x512) |
|
Minimum Illumination .................. |
0.001 lux |
Motion Detection ......................... |
On / Off (4 programmable zones) |
|
Effective Pixels............................. |
1984 (H) x 1105 (V) |
Privacy Masking........................... |
On / Off (16 programmable zones) |
|
Total Pixels .................................. |
2000 (H) x 1121 (V) |
Speco DNR.................................. |
Off / Low / Med / High |
|
TV System.................................... |
NTSC |
Sharpness.................................... |
On / Off (level adjustable) |
|
Scanning System ........................ |
Progressive |
Mirror............................................ |
On / Off |
|
S/N Ratio ..................................... |
50dB |
Power Supply............................... |
12VDC / 24VAC dual voltage operation |
|
Video Output ............................... |
1.0Vp-p / 75 ohms |
|
(power supply not included) |
|
Electronic Shutter Speed ............ |
Auto / Manual |
Power Consumption..................... |
12VDC, 150mA / 24VAC, 195mA |
|
OSD ............................................ |
Available |
Operating Temperature................ |
14˚ F ‒ 122˚ F |
|
Backlight Compensation.............. |
BLC / HLC / Off |
Storage Temperature................... |
-4˚ F ‒ 140˚ F |
|
Day/Night .................................... |
Color / BW / Auto / Ext |
Dimensions.................................. |
3.82” (H) x 5.47” (Dia.) |
|
AGC............................................. |
Level adjustable (0 - 10) |
Weight ......................................... |
1.54 lbs. |
|
White Balance ............................. |
ATW / Push / Manual |
|
|
|
Sense-up...................................... |
2x – 32x (adjustable) |
