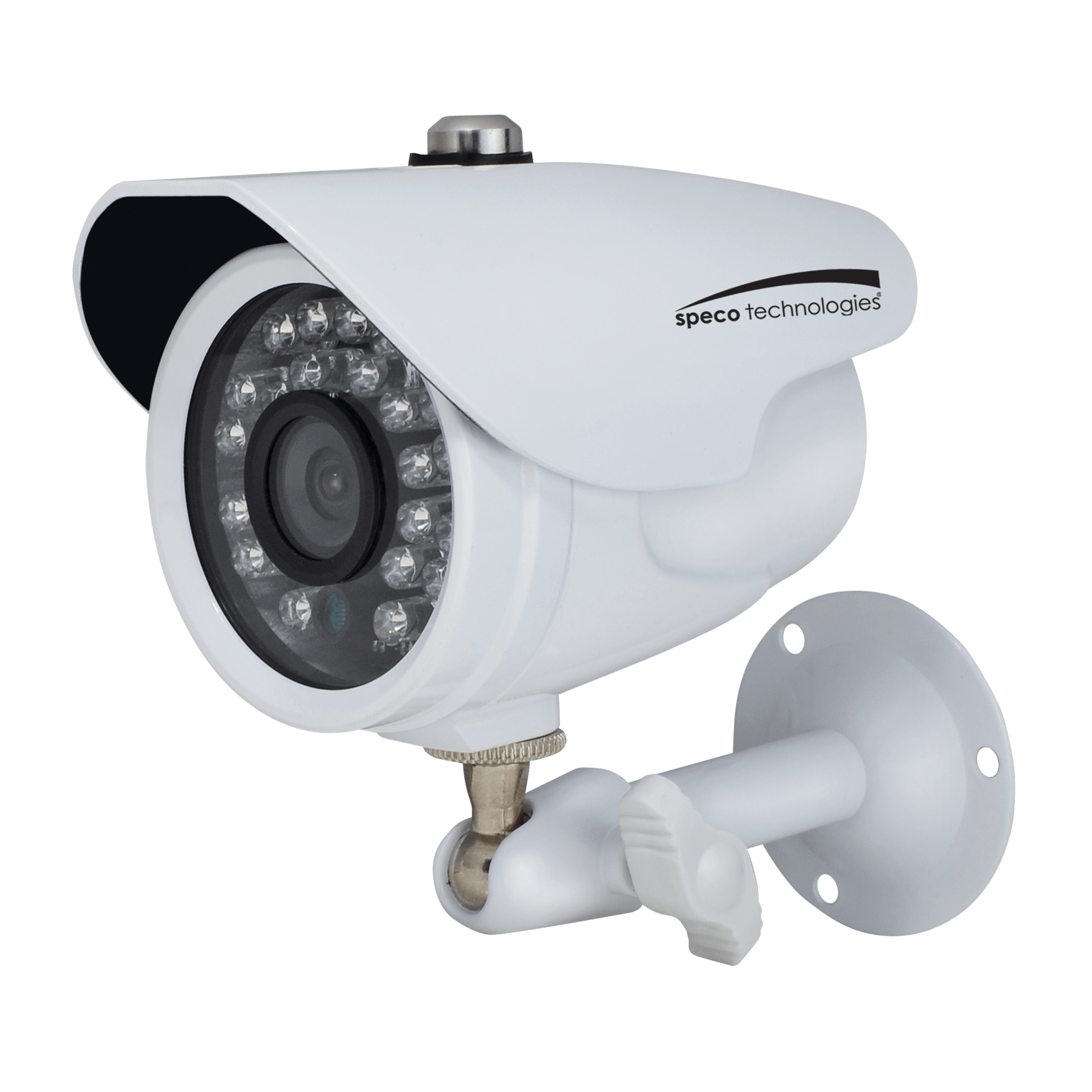

SPECO - CVC627MT - 2MP HD-TVI Color Waterproof Marine Bullet Camera w/IR, 10' Cable, 3.6mm Lens, White, TAA
2MP HD-TVI Color Waterproof Marine Bullet Camera w/IR, 10' Cable, 3.6mm Lens, White, TAA
- 3.6mm fixed lens
- Full HD resolution over coax (HD-TVI)
- Full HD 1080p @ 30fps
- Great for marine applications
- Additional analog output for 960H
- Full OSD operation via UTC (TVI only)
- IP67 compliant, waterproof
- 12VDC / 24VAC dual voltage operation
|
Specifications |
|
|
Image Sensor................. |
1/3” Progressive Scan CMOS, 2MP |
|
Resolution...................... |
1920 x 1080 |
|
Minimum Illumination..... |
0 lux (IR LEDs on) |
|
Effective Pixels............... |
1984 (H) x 1105 (V) |
|
Total Pixels..................... |
2000 (H) x 1121 (V) |
|
Number of IR LEDs........ |
24 |
|
IR Range........................ |
65 ft. (depending on scene reflection) |
|
Electronic Shutter........... |
Auto / Manual (1/30 – 1/30,000 sec) |
|
S/N Ratio........................ |
More than 50dB |
|
Synchronization.............. |
Internal |
|
Scanning System........... |
2:1 Interlaced |
|
Video Output.................. |
1Vp-p / 75 ohms |
|
TV System...................... |
NTSC |
|
Power Supply................. |
12VDC / 24VAC (power supply not included) |
|
Power Consumption....... |
350mA (12VDC) / 300mA (24VAC) |
|
Operating Temperature.. |
14° F – 120° F |
|
Unit Dimensions............. |
2.47” (W) x 2.74” (H) x 4.01” (L) |
|
Unit Weight..................... |
12 oz. |
|
Cable.............................. |
10’ of power/video cable included |
|
Included in Package....... |
Main unit, mounting screws, mounting bracket |
|
Signal Distance.............. |
Up to 1600 ft. |
