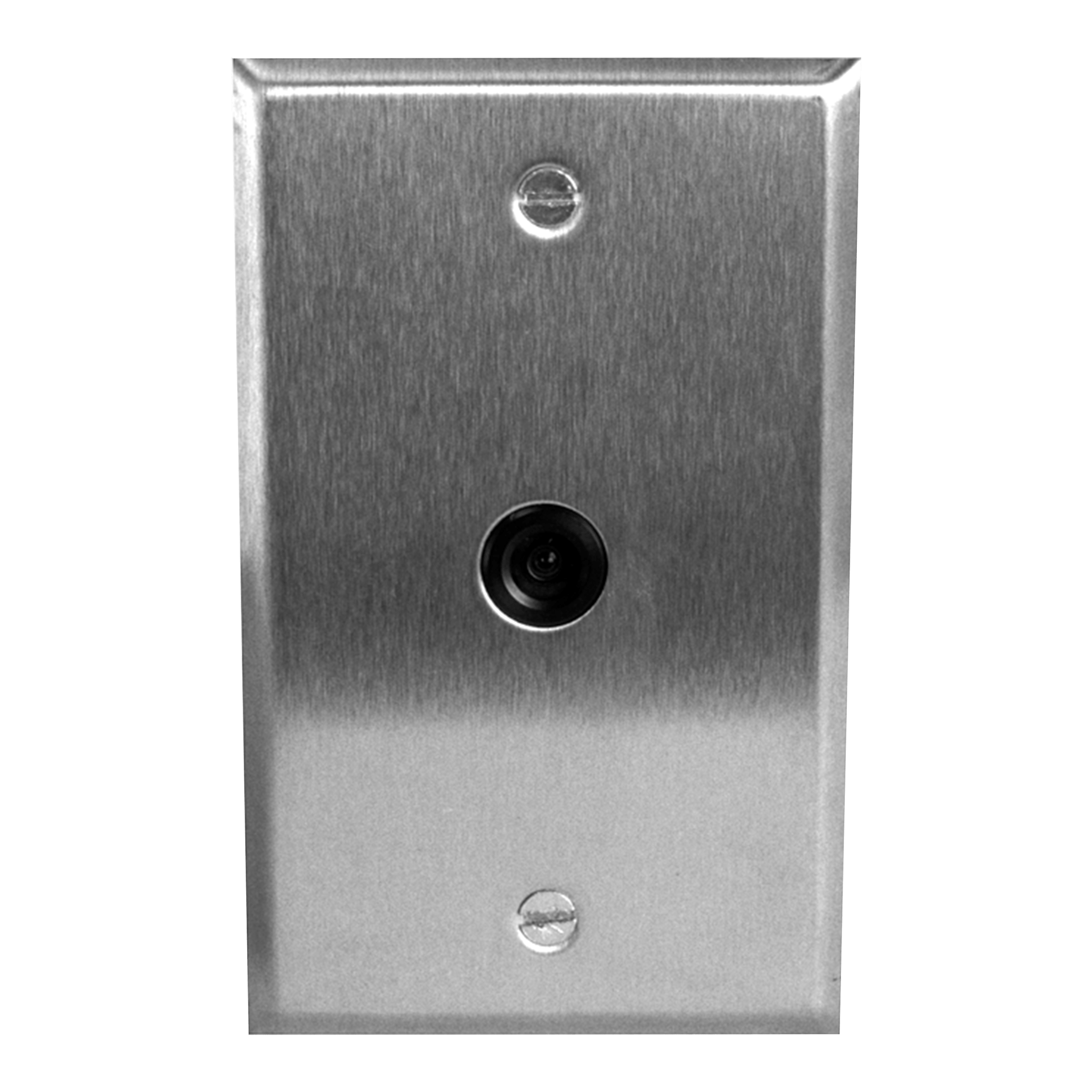

SPECO - CVC675T - 2MP HD-TVI 3.6mm Lens Discreet Color In-Wall Camera (Power Supply not included), TAA
2MP HD-TVI 3.6mm Lens Discreet Color In-Wall Camera (Power Supply not included), TAA
- Fits into a single gang electrical box (included)
- Brushed stainless steel faceplate
- Full HD 1080p @ 30fps
- Additional 960H analog output
- 12VDC operation
|
Specifications |
|
|
Image Sensor........................... |
1/3” Progressive scan CMOS, 2MP |
|
Resolution................................ |
1920 x 1080 |
|
Effective Pixels......................... |
1984 (H) x 1105 (V) |
|
Scanning System..................... |
Progressive |
|
Angle of View........................... |
Horizontal: 72° / Vertical: 53° |
|
Electronic Shutter Speed......... |
Auto: 1/30 sec. ‒ 1/30,000 sec. |
|
Video Output Level................... |
1.0Vp-p / 75 ohms |
|
Video S/N Ratio........................ |
Greater than 50dB |
|
Housing.................................... |
Stainless steel |
|
Operating Temperature/ |
|
|
Humidity................................... |
14° F ‒ 122° F / within 90% RH |
|
Power Consumption................. |
200mA |
|
Power Supply........................... |
12VDC (power supply not included) |
|
Dimensions.............................. |
2.75” (W) x 4.25” (H) x 2.75” (L) |
|
Weight...................................... |
3.45 oz. |
|
Communication........................ |
UTC |
