SPECO - G86TG - 8" Speaker Grille Combo
8" Speaker Grille Combo
Part number:
Speakers
Price:

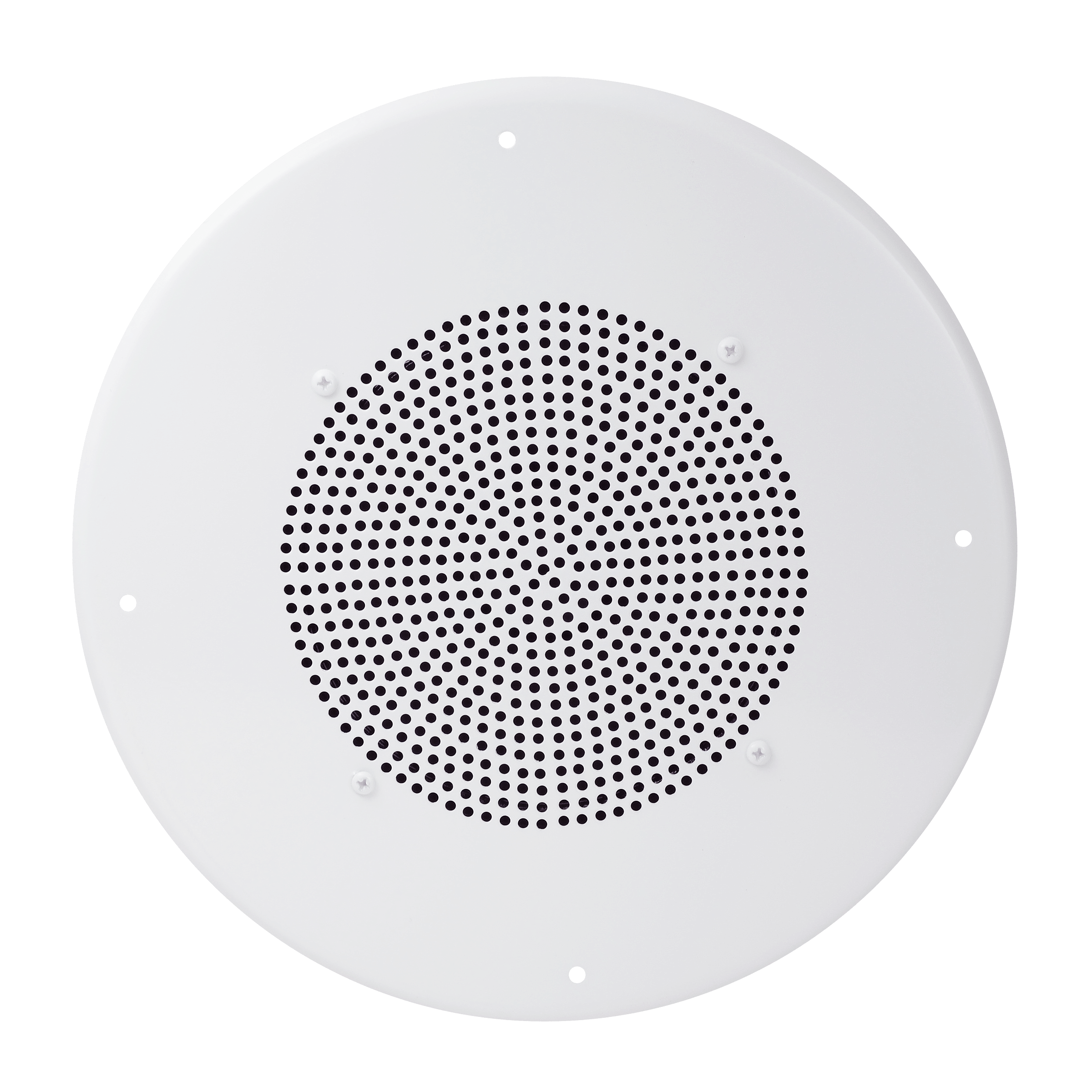

• Classic style white steel grille

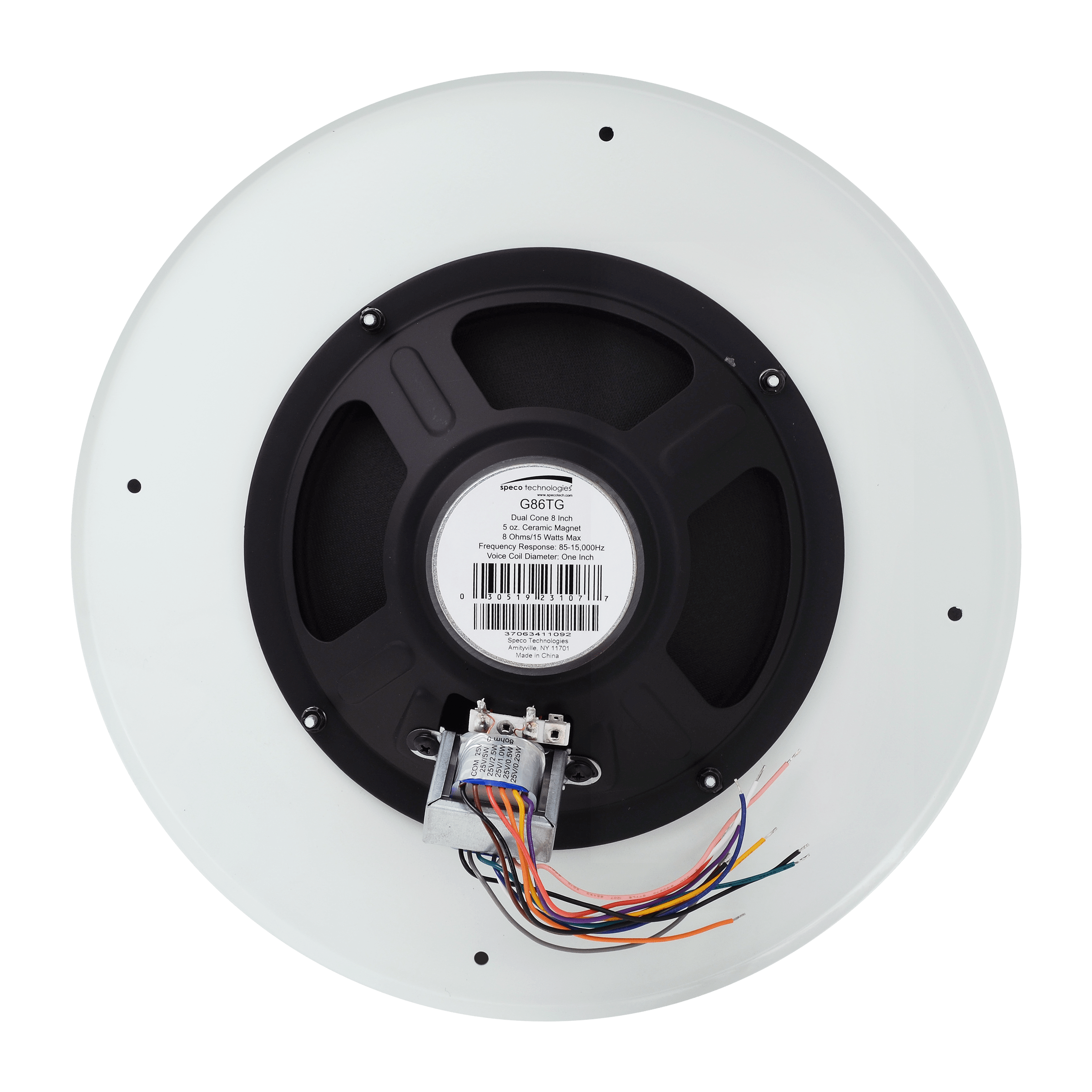

• 70/25V transformer with colored leads
• G86TCG features volume control knob centered on grille
*also available with volume control
| Specifications | G86TG | G86TCG |
| RMS Power | 10W | 10W |
| Max. Power | 15W | 15W |
| Transformer Type | 70/25V | 70/25V |
| Transformer Power Type | 5W, 2.5W, 1W, 0.5W, 0.25W & 8 Ohms | 5W, 2.5W, 1W, 0.5W, 0.25W & 8 Ohms |
| Termination Type | Colored leads | Colored leads |
| Sensitivity (1W/1M) | 90dB | 90dB |
| Maximum SPL (Pax/1M) | 100dB | 100dB |
| Driver Impedance | 8 Ohms | 8 Ohms |
| Magnet | .5 oz. ferrite | 5 oz. ferrite |
| Frequency Response Range | 85Hz ~ 20kHz | 85Hz ~ 20kHz |
| Dispersion @ 1000Hz | 120º Conical | 120º Conical |
| Driver | 8” paper cone woofer, 8” dual cone tweeter | 8” paper cone woofer, 8” dual cone tweeter |
| Speaker Dimensions | .13” (Dia.) x 3.5” (D) | 13” (Dia.) x 3.5” (D) |
| Mounting Dimensions . | 11.3” (Dia.) | 11.3” (Dia.) |
| Minimum Mounting Depth | 2.7” | 2.7” |
| Weight | 2.7 lbs | 2.7 lbs |
| Material | Grille: steel | Grille: steel |
| Color | .Off-White | .Off-White |
Name
Description
Size
Downloads
File
Spec Sheet
0.5mb
File
User Manual
0.1mb
