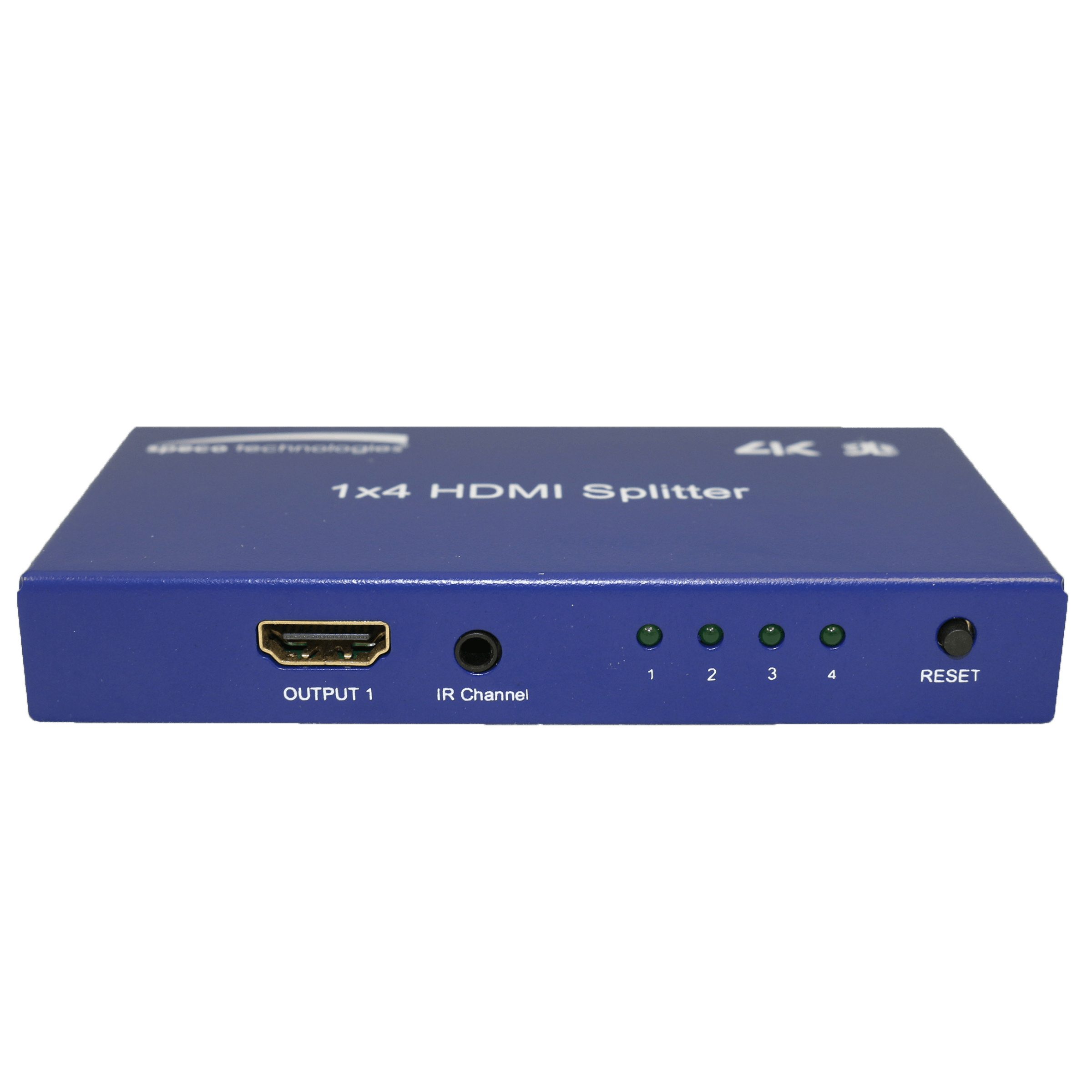

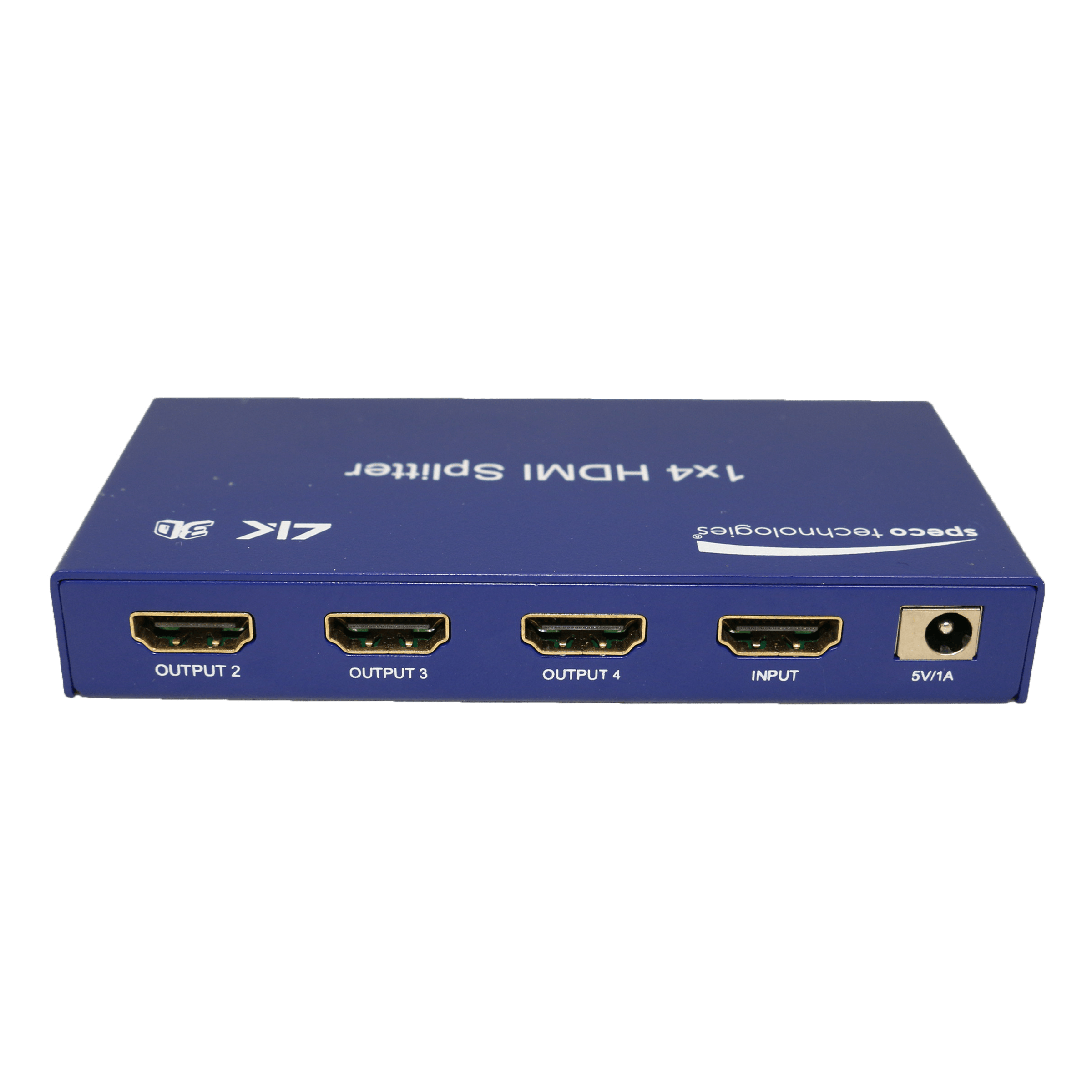

SPECO - HD4SPL2 - HDMI 1 to 4 Splitter- Res up to 4K
HDMI 1 to 4 Splitter- Res up to 4K
Part number:
HD4SPL2
Price:
• Takes a single HDMI source and divides it into 2 (HD2SPL2) or 4 (HD4SPL2) monitors or televisions
• Supports 3D HDMI signals
• Supports a wide range of PC and HDTV resolutions from VGA to UXGA, and 480i to 1080p, up to 4K
• Supports DTS/Dolby/DTS-HD/Dolby True HD/LPCM7.1/AC3
• Supports HDCP 1.3
• Compatible with HDMI 1.4a
| Operating Temperature | 5°F ‒ 131°F |
| Operating Humidity | 5% ‒ 90% RH (no condensation) |
| Input Video Signal | 1.2Vp-p |
| Data Transfer Speed Rate | 10.2 Gbps (max) |
| Power Supply | 5VDC (power supply included) |
| Dimensions | 4.7” (L) x 2.4” (W) x 0.7 (H) |
| Bandwidth | 10.2 Gbps |
| Output Resolutions | 480i ~ 1080p @ 50/60 1080p @ 24/50/60 2160p @ 24/30 VGA ~ UXGA |
Name
Description
Size
Downloads
File
Spec Sheet
0.3mb
File
User Manual
0.3mb
