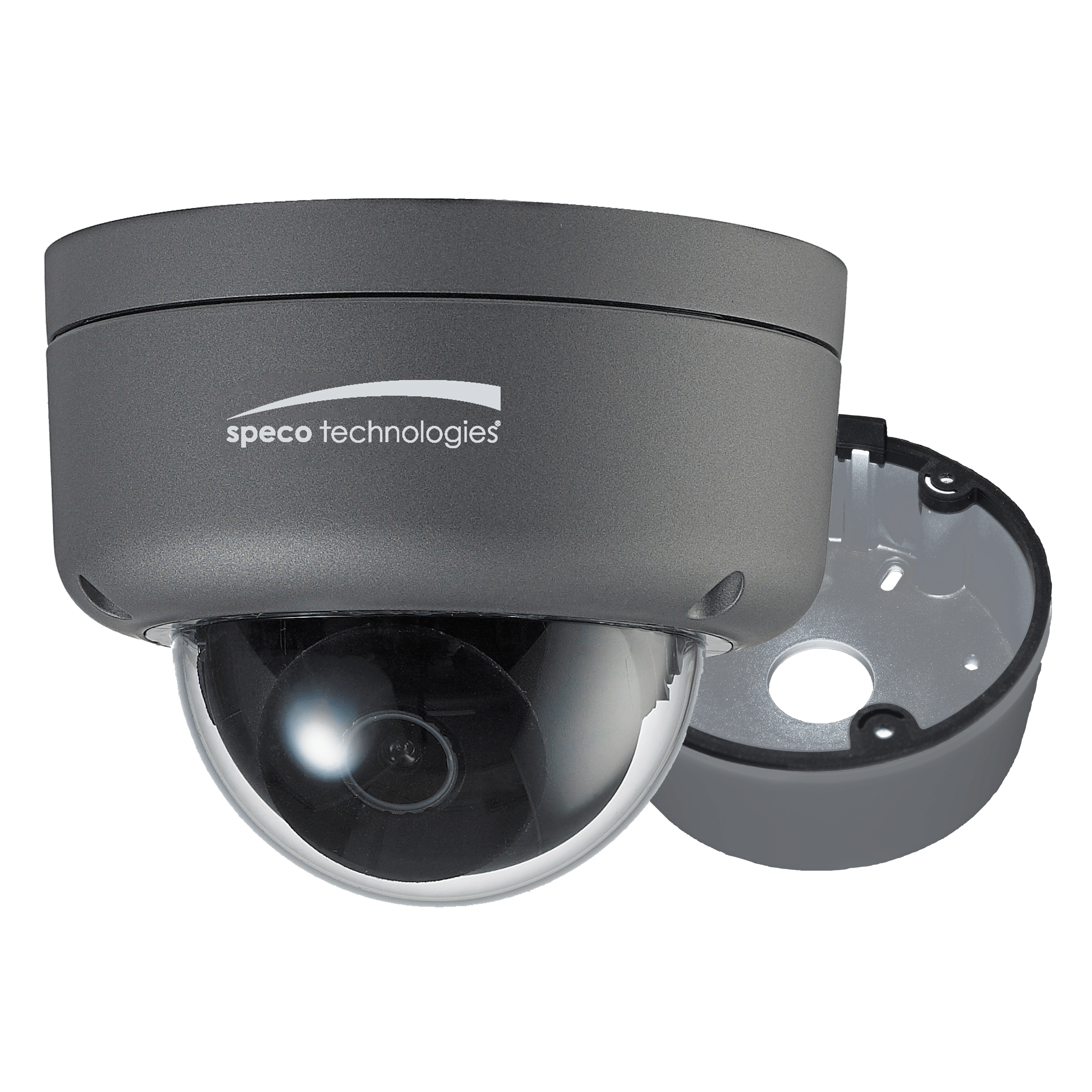

SPECO - HiD8 - 2MP Ultra Intensifier HD-TVI Dome Camera, 3.6mm lens, Included Junction Box, Dark Grey, TAA
2MP Ultra Intensifier HD-TVI Dome Camera, 3.6mm lens, Included Junction Box, Dark Grey, TAA
Part number:
HiD8
Price:
- Next generation of Intensifier® technology provides an even more vivid color image in low light situations
- Preset image modes offer convenient settings for different environments
- Supports up to full HD 1080p resolution @ 30fps
- True WDR (wide dynamic range) operation
- Glacier: Operates in -40º F
- IP66 compliant, weather resistant
- IK10 compliant, vandal resistant
- TAA Compliant
- Junction box included for convenience
- 5 year warranty
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.8” Sony STARVIS CMOS Sensor, 2MP |
| Maximum Resolution | 1920x1080 |
| Field of View | 89° Horizontal, 47° Vertical |
| Minimum Illumination | 0.001 lux |
| White Balance | Auto/AWB/AWB - SET/Manual |
| Compensation | WDR |
| Day/Night | Auto/Color/B&W |
| DNR | Off/Low/Middle/High |
| Output | TVI/CVBS(EXT) |
| S/N Ratio | More than 50dB (AGC OFF/ Weight ON) |
