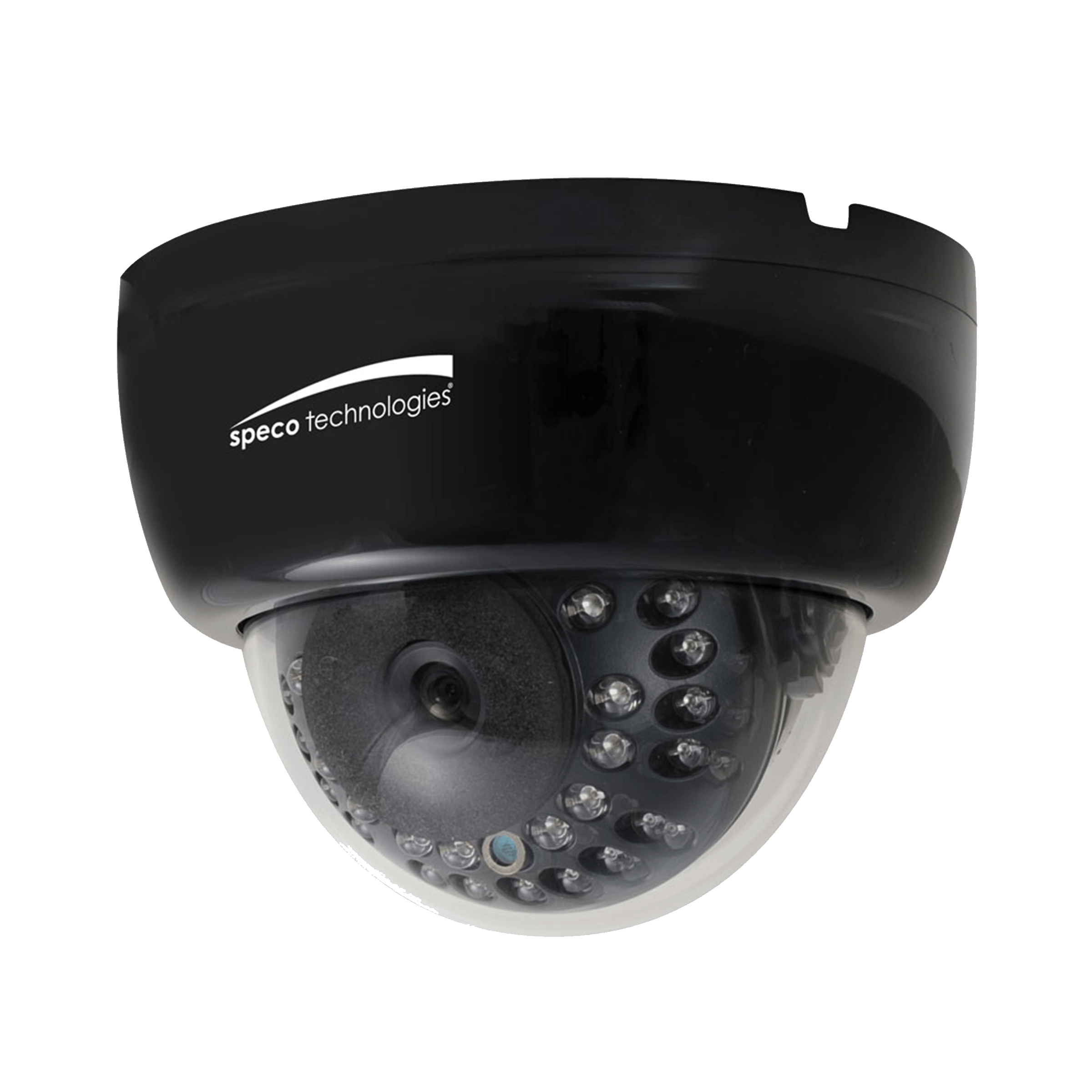

SPECO - HLED33DTB - 2MP HD-TVI Indoor Dome w/IR, 2.8-12mm VF Lens, 12/24V, Black Housing, TAA
2MP HD-TVI Indoor Dome w/IR, 2.8-12mm VF Lens, 12/24V, Black Housing, TAA
Part number:
HLED33DTB
Price:
• Full HD resolution over coax @ 30FPS
• IR Range: 65’
• Smart DNR reduces noise in low light
• Smart IR reduces saturation of objects within close proximity to IR LEDs
• 3-axis design, both wall and ceiling mountable
• Digital wide dynamic range
• OSD for camera setting adjustments
• 12VDC/24VAC dual voltage operation
• 5 year warranty
• Additional analog output for 960 H
| Image Sensor | 1/3” progressive scan CMOS 2 MP |
| Resolution | 1920 x 1080 |
| Minimum Illumination | 0 lux with IR on |
| S/N Ratio | 50dB |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Total Pixels | 2000 (H) x 1121 (V) |
| Shutter | 1/30 sec – 1/300,000 sec |
| Number of IR LEDs | 24 |
| IR Range | 65 ft. (depending on scene reflection) |
| OSD | Yes |
| Synchronization | Internal |
| Privacy | On / Off (8 zones) |
| Motion Detection | On / Off (4 zones) |
| Mirror | On / Off |
| DNR | High / Middle / Low / Off |
| White Balance | ATW / Push / Manual |
| Image | BLC / HLC / D-WDR / Defog |
| AGC | Level adjustable (0-20) |
| TV System | NTSC |
| Housing | High impact ABS |
| Operating Temperature | 14° F - 122° F |
| Power Supply | 12VDC, 24VAC (power supply not included) |
| Power Consumption | 350mA |
| Dimensions | 4.4” (Dia.) x 3.4” (H) |
| Weight | 8 oz. |
| Included in Package | Main unit, mounting screws, test monitor lead, DC lead, user manual |
