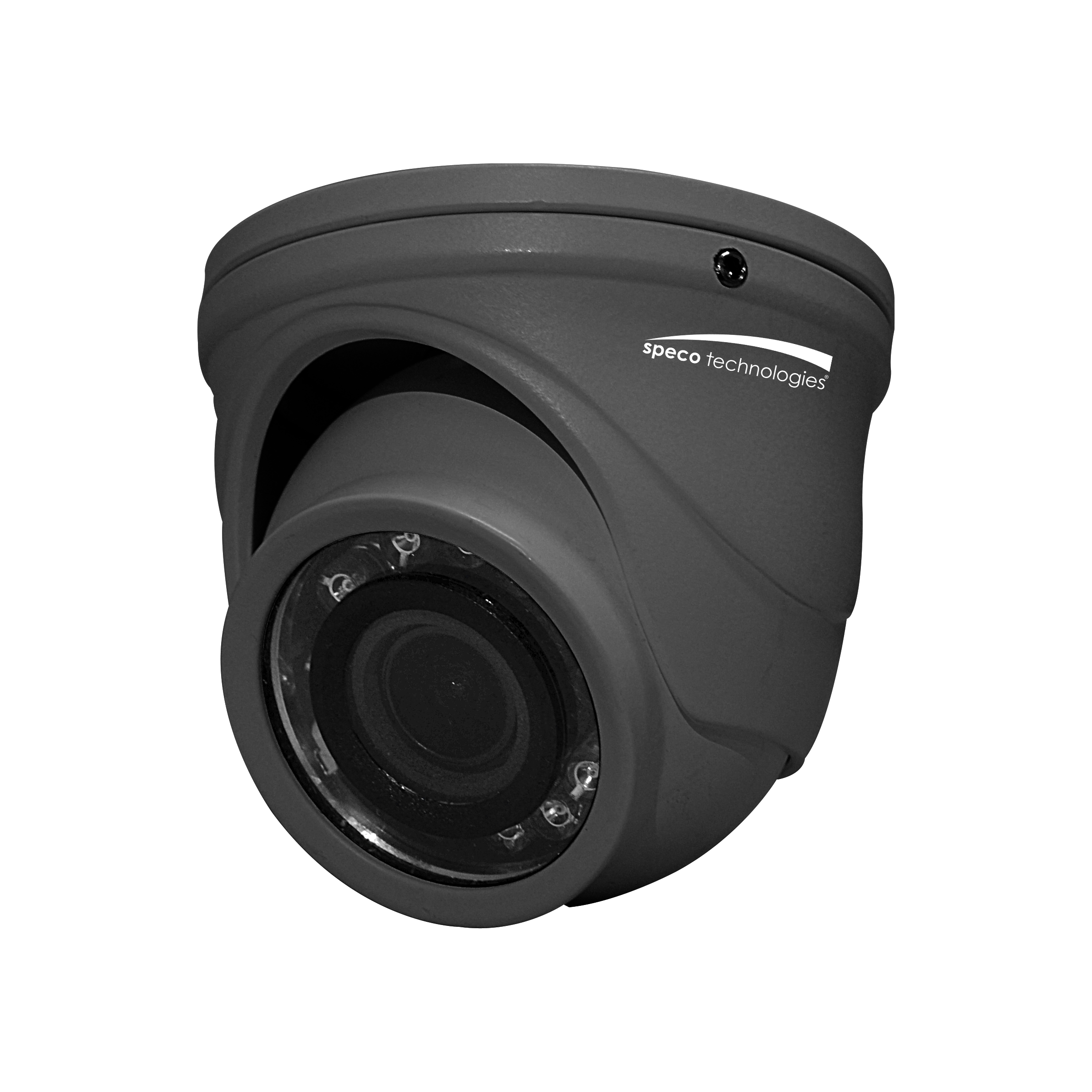

SPECO - HT471TG - 4MP HD-TVI Mini IR Turret with 2.9mm lens , Grey Housing, TAA
4MP HD-TVI Mini IR Turret with 2.9mm lens , Grey Housing, TAA
Part number:
HT471TG
Price:
• 2.9mm fixed lens
• 1/3” Progressive Scan CMOS, 4MP
• Compact size – only 2.36” in diameter!
• 12 IR LEDs
• Cast aluminum construction
• Signal distance up to 1600 feet
• Full OSD operation via UTC (TVI output only)
• Vandal resistant
• IP66 compliant, weather resistant
• 12VDC operation
• 5 year warranty
*also available in white housing
| Image Sensor | 1/3” Progressive Scan CMOS, 4MP |
| Resolution | 2560 x 1440 @ 15fps (default) |
| Minimum Illumination | 0.00 lux (IR LED on) |
| Effective Pixels | 2184 (H) x 2202 (V) |
| Total Pixels | 3096 (H) x 2281 (V) |
| Electronic Shutter Speed | Auto / Manual |
| Number of IR LEDs | 12 |
| IR Range | 35 ft. (depending on scene reflection) |
| Day/Night | Auto / Color / BW / Ext |
| Scanning System | Progressive |
| Synchronization | Internal |
| Communication | UTC |
| Frequency | 15.734kHz (H) / 60Hz (V) |
| Video Output | 1.0Vp-p / 75 ohms |
| S/N Ratio | More than 50dB |
| AGC | Auto |
| White Balance | Auto |
| Operating Temperature | 14° F ‒ 120° F |
| Power Supply | 12VDC (power supply not included) |
| Power Consumption | 100mA (IR off) / 200mA (IR on) |
| Certification | FCC, RoHS |
| Dimensions | 2.36” (Dia.) x 2.15” (H) |
| Weight | 10 oz. |
Name
Description
Size
Downloads
File
Spec Sheet
0.6mb
File
Tech Manual
0.5mb
