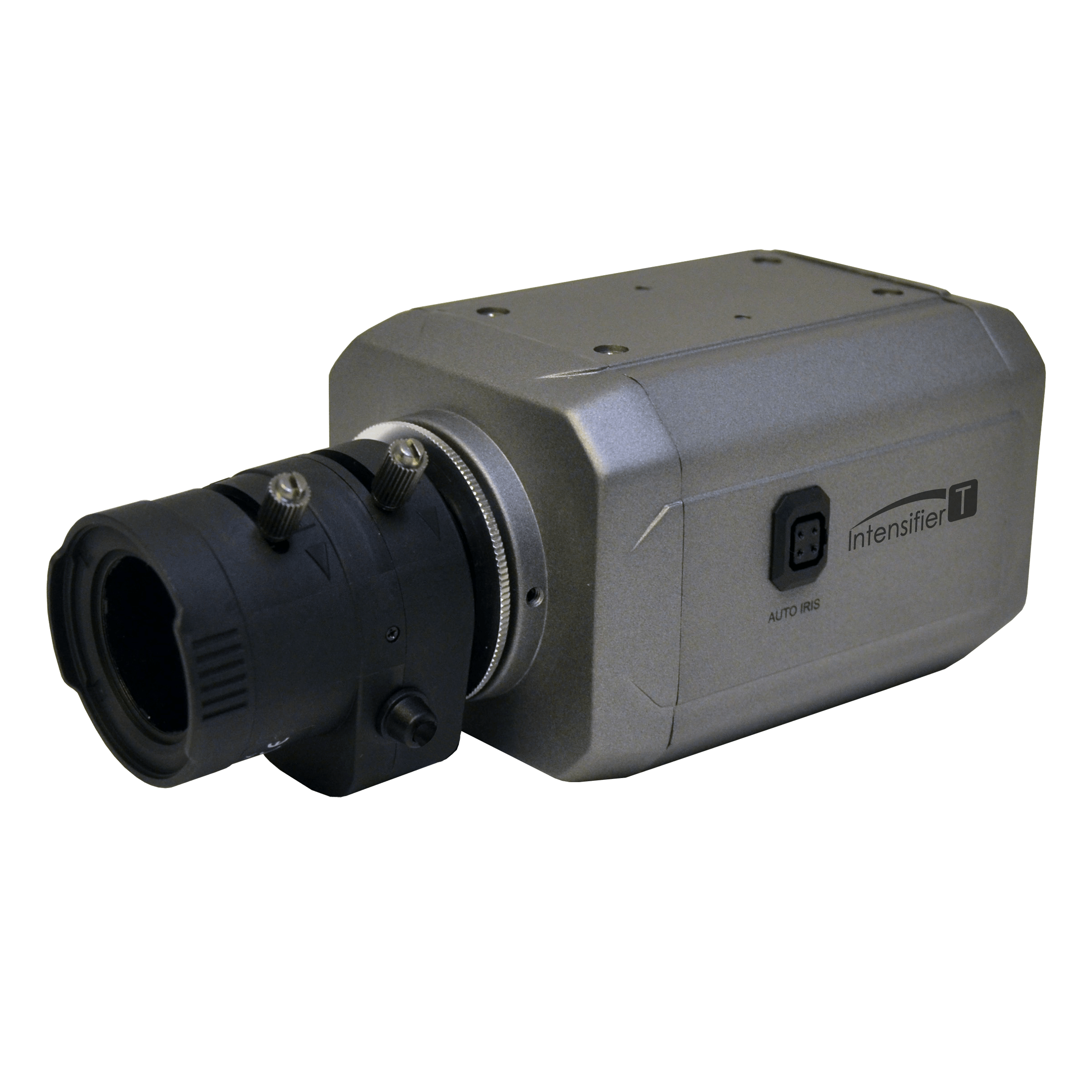

SPECO - HTINTT5T - 2MP HD-TVI IntensifierT Traditional Camera, C or CS Lenses, Dual Voltage, TAA
2MP HD-TVI IntensifierT Traditional Camera, C or CS Lenses, Dual Voltage, TAA
Part number:
HTINTT5T
Price:
• Accepts C & CS auto iris & manual type lenses
• Full HD resolution over coax (HD-TVI)
• Supports Full HD 1080p @ 30fps
• No problems caused by objects that reflect or absorb IR light sources
• True WDR operation
• With presets for different scenarios
• 12VDC / 24VAC dual voltage operation
• Full OSD operation via UTC (TVI output only)
• Additional analog output for 960H
• 5 year warranty
| Image Sensor | 1/3” Progressive Scan CMOS, 2MP |
| Resolution | 1080p |
| Minimum Illumination | 0.001 lux |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Total Pixels | 2000 (H) x 1121 (V) |
| TV System | NTSC |
| Scanning Frequency | 15.734kHz (H) / 59.94Hz (V) |
| Scanning System | Progressive |
| Synchronization | Internal |
| Communication | UTC |
| S/N Ratio | more than 50dB |
| Video Output | CVBS: 1.0Vp-p / 75 ohms |
| Electronic Shutter Speed | Auto / Manual |
| OSD | Available |
| DWDR | On / Off (level adjustable) |
| Backlight Compensation | BLC / HLC / Off |
| Day/Night | Color / BW / Auto / Ext |
| AGC | Level adjustable |
| White Balance | ATW / Push / Manual |
| Intensify | Auto / Off (selectable x2 - x512) |
| Motion Detection | On / Off (4 programmable zones) |
| Privacy Masking | On / Off (8 programmable zones) |
| Speco DNR | High / Med / Low / Off |
| Sharpness | On / Off (level adjustable) |
| Mirror | On / Off |
| Power Consumption | 12VDC, 150mA / 24VAC, 2W |
| Power Supply | 12VDC / 24VAC dual voltage operation (power supply not included) |
| Operating Temperature | 14˚ F – 122˚ F |
| Storage Temperature | -4˚ F – 140˚ F |
| Dimensions | 2.5” (W) x 2.2” (H) x 3.46” (L) |
| Weight | 1.5 lbs. |
