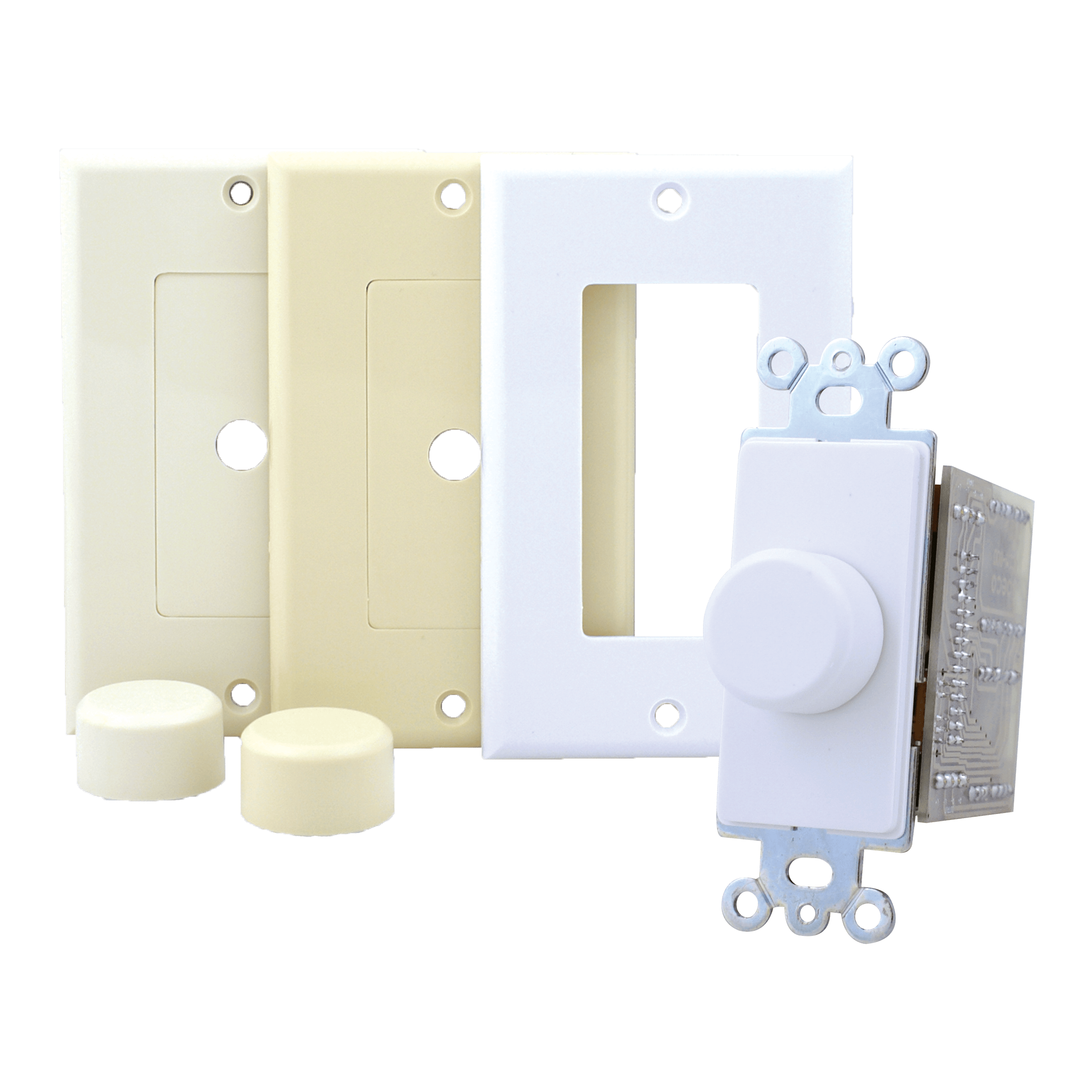

SPECO - IMP80D - 80W Impedance Matching Volume Control w/ 3 color plate & knob
80W Impedance Matching Volume Control w/ 3 color plate & knob
Part number:
IMP80D
Price:
- Includes three knob/plate color variations: white, ivory and almond
- High-quality auto-former design
- Supports 2 to 16 speaker pairs
- Switchable impedance matching for 2, 4, 8 or 16 pairs of 8 Ohm speakers
- Soft touch 12-step rotary attenuation
- Frequency response: 20Hz to 20kHz
- Removable terminal blocks accept up to 14-gauge wire
- Mounting requirements: fits all single-gang backless P-rings or 18 cubic inch min. electrical work box
- Mounting dimensions: 1.63″ W x 2.85″ H x 2.35″ D
Name
Description
Size
Downloads
File
User Manual
1mb
