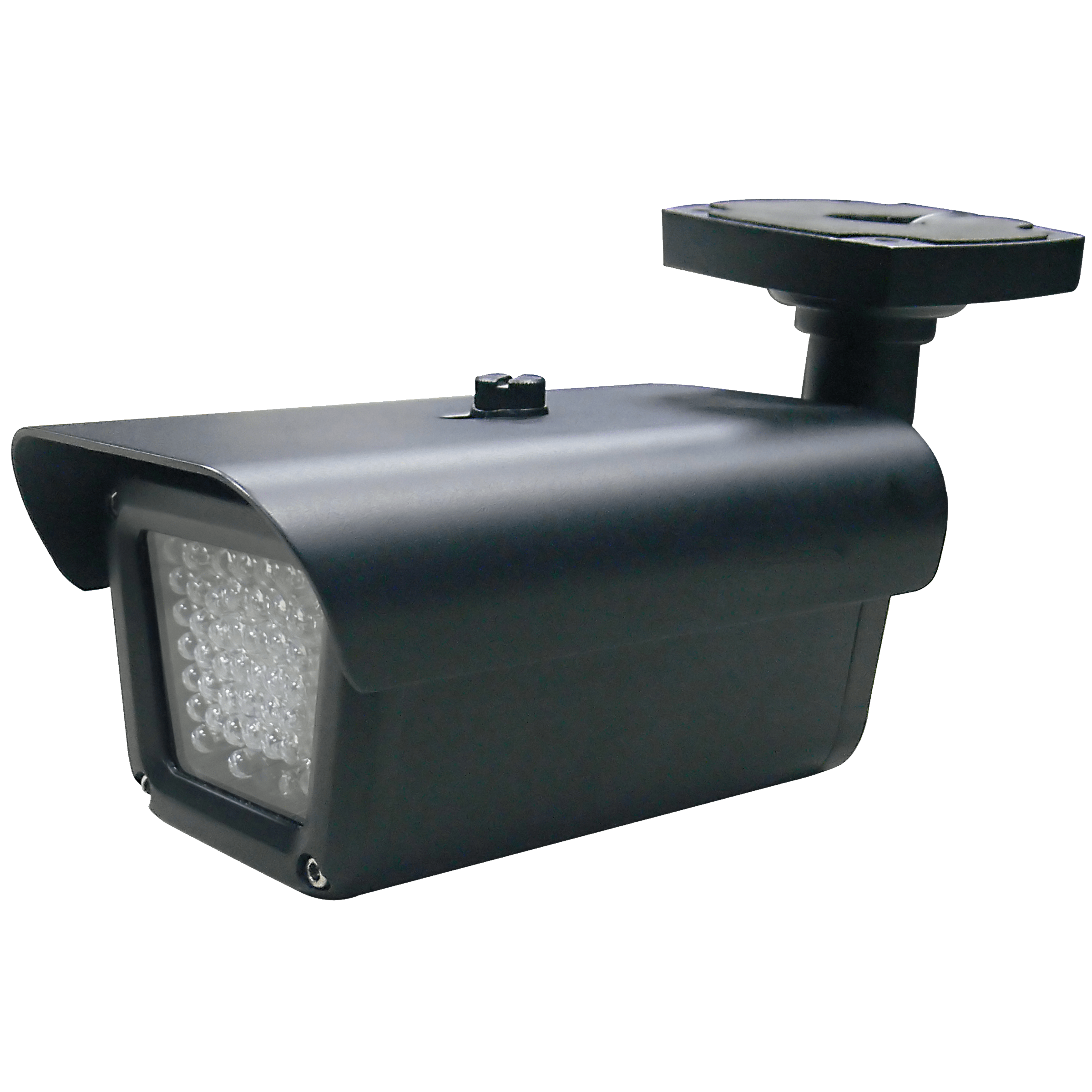

SPECO - IR80 - IR Illuminator - 80 degree 147 feet (55 IRs) Dual Voltage
• 80° field of illumination
• IR range up 147 ft. in near total darkness and depending on scene reflection
• 55 powerful infrared LEDs
• Compatible with any BW or IR sensitive color CCD camera
• CDS sensor activates IR LEDs only as needed
• Low power consumption
• Weather resistant operation
• IP66 compliant
• 1 year warranty
Field of Illumination........... 80°
Number of IR LEDs .......... 55
IR Range .......................... 147’ (depending on scene reflection)
LED Wavelength............... 850nm
Lux Level .......................... 10 lux
Operating Temperature..... -22° F ‒ 140° F
Storage Temperature........ -22° F ‒ 140° F
Power Supply ................... 12VDC, 410mA / 24VAC, 320mA (power supply not included)
Dimensions....................... 3.54” (W) x 3.41” (H) x 7.91” (L)
Weight .............................. 26.5 oz.
Housing ............................ Aluminum
